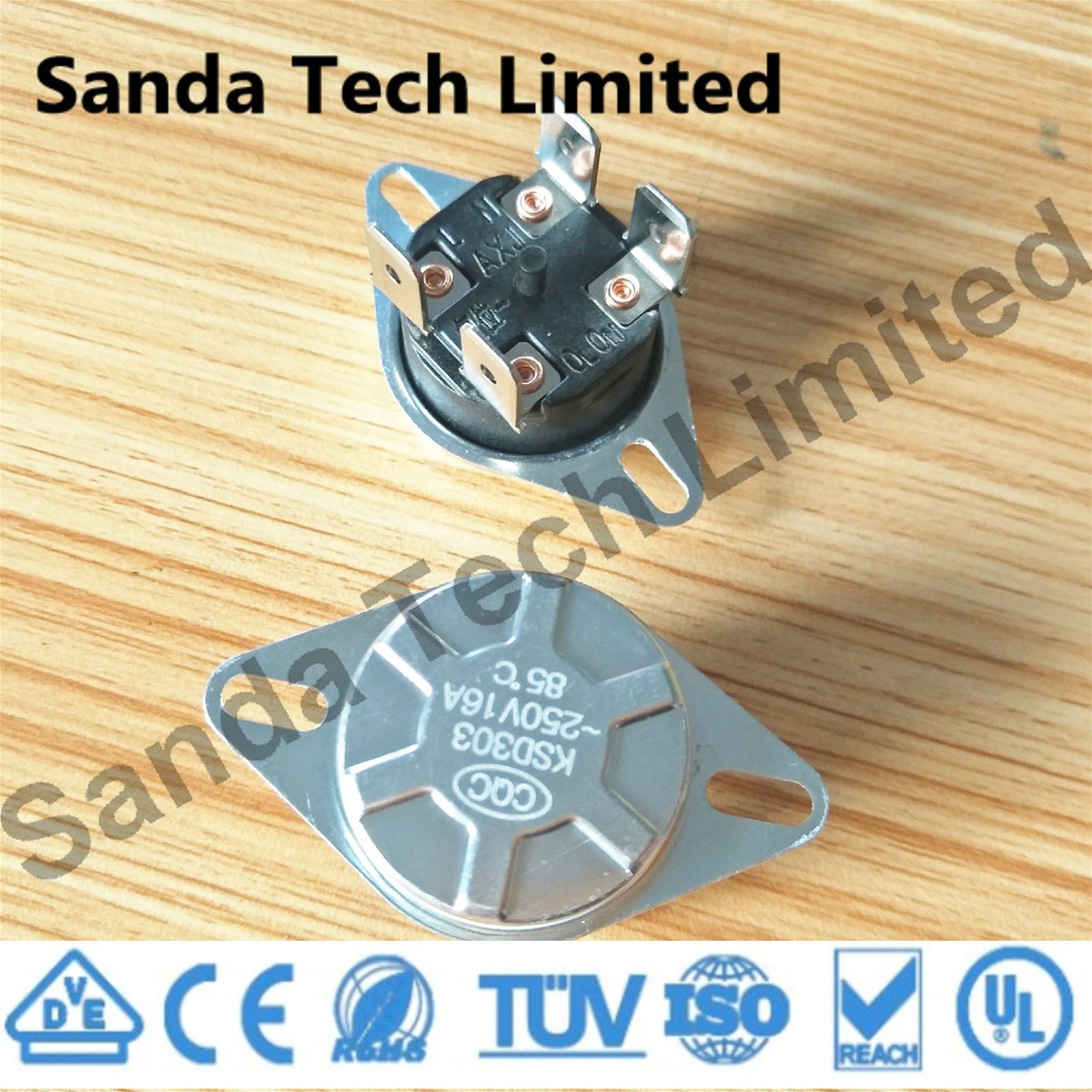

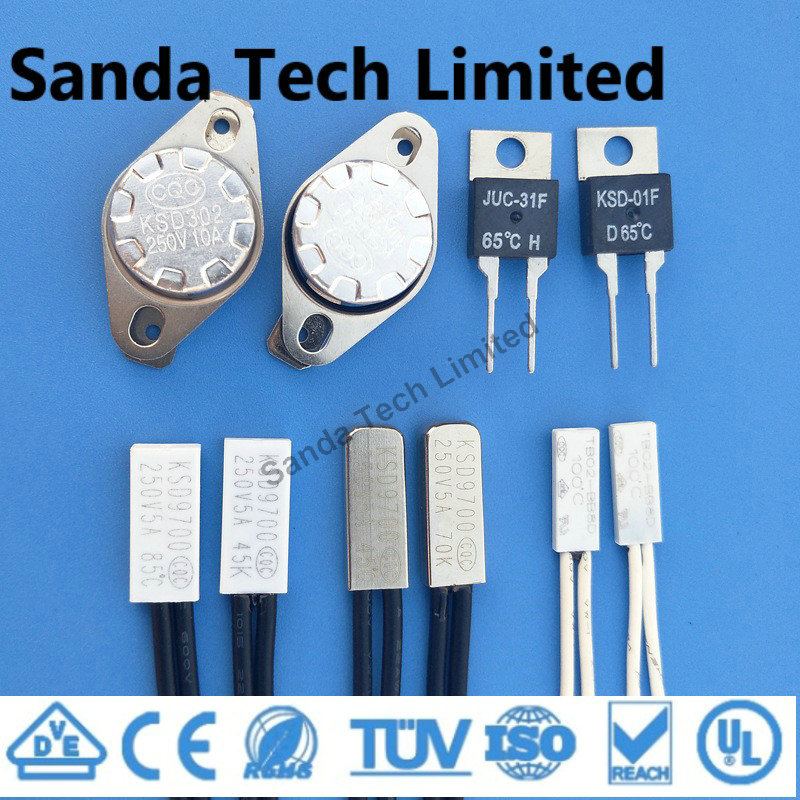

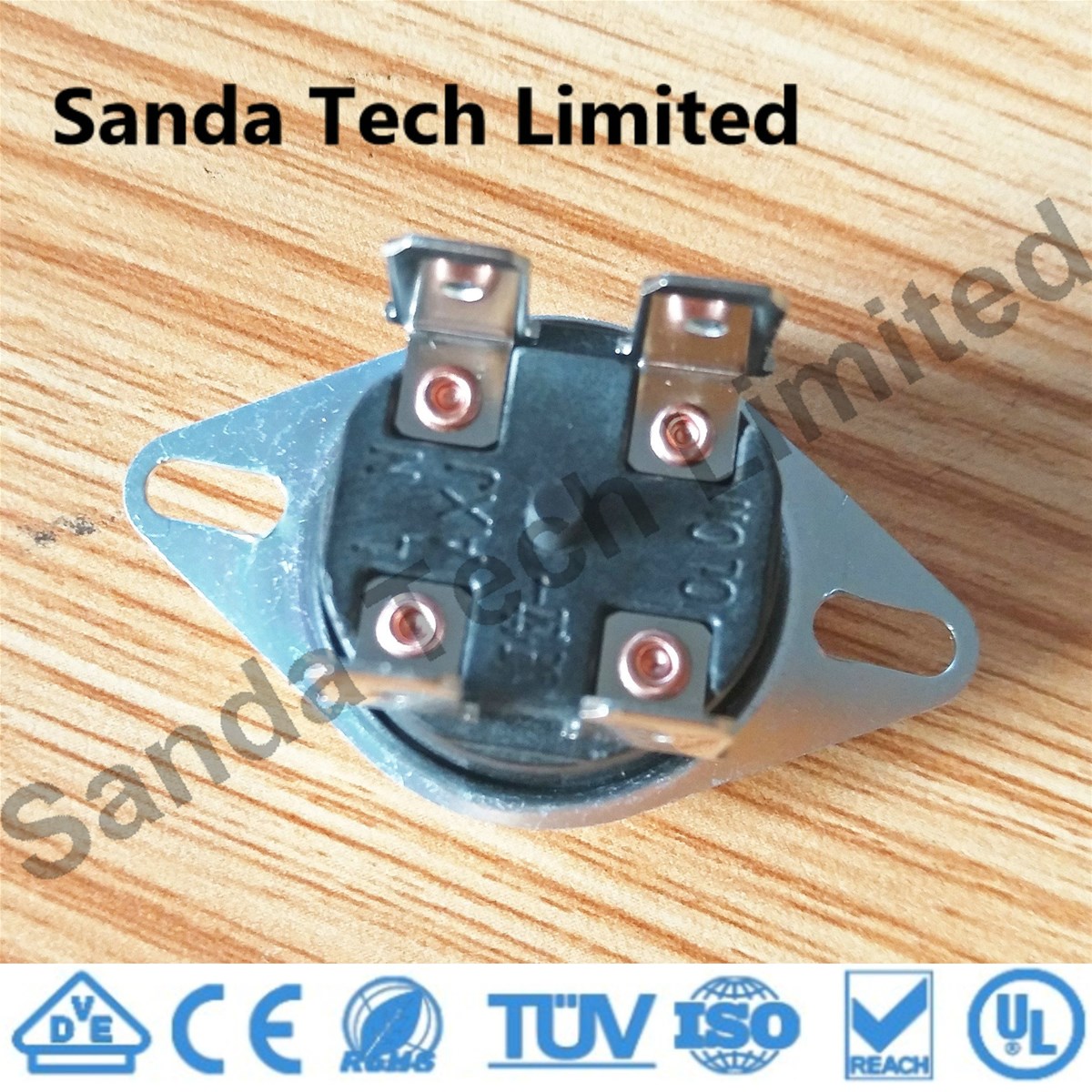

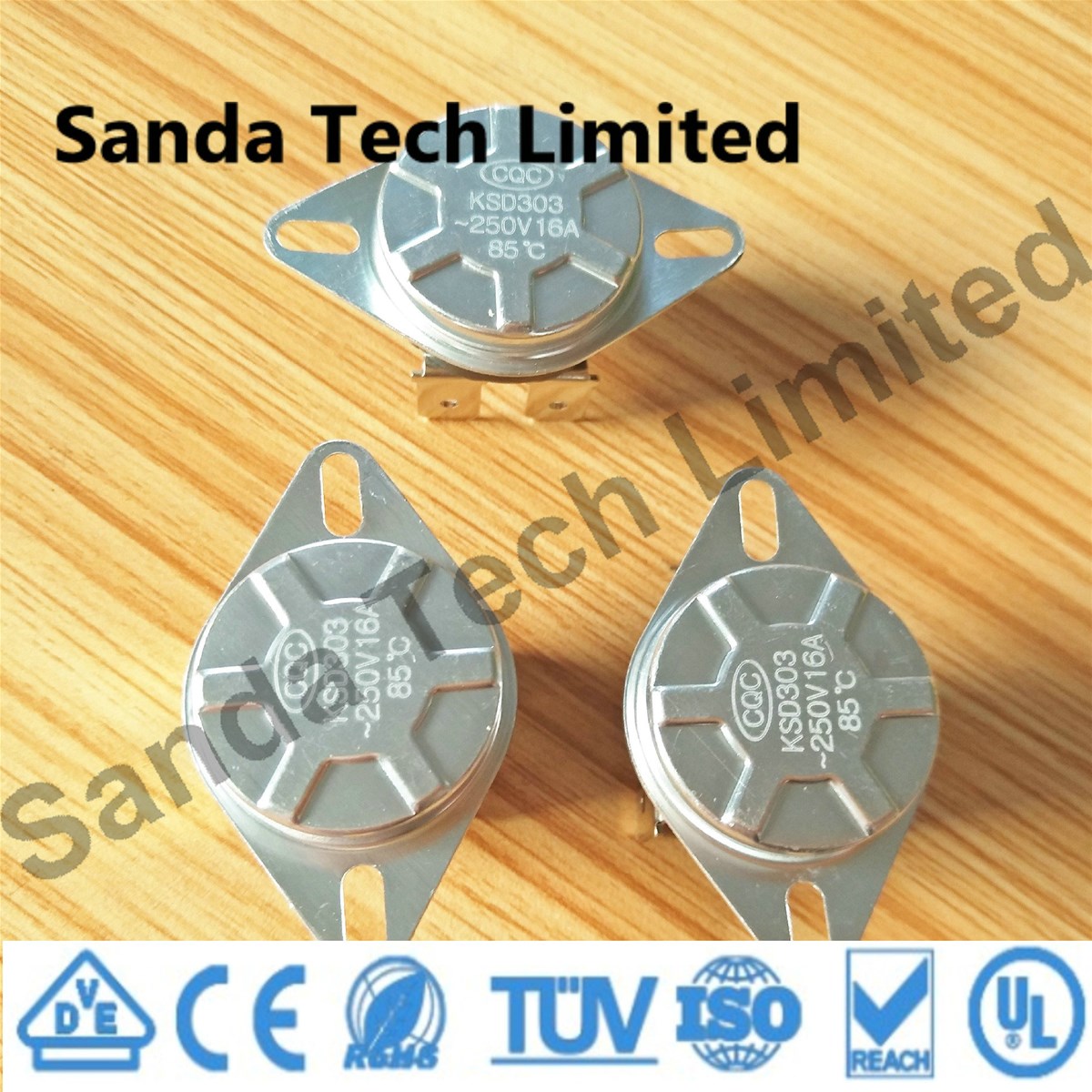

KSD302 SERIES BIG CURRENT AUTO RESET TEMPERATURE CONTROL

Supply Ability: 1,000,000 Piece(s) per Month
Shipping: FOB
Payment Terms: T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: MASTER CARTON

Quick Details

  • Temperature range: 0-180C
  • Accuracy: +/-5C
  • Theory: Temperature Controller
  • Usage: Household
  • Brand Name: sanda

Specifications

 KSD302 SERIES BIG CURRENT AUTO RESET TEMPERATURE CONTROL

Kicking thermostat



Working principle

the kicking thermostat is close protected. It belongs to temperature inductive relay. The life time of the product is long. Its anti-jamming.



Specification

Electricity performance:

5A series: AC 250V 5A AC 12V 7A

10A series: AC250V 10A

Disconnection temp tolerance: 1, 1.5, 2, 3

Automatism reset temp tolerance: 5, 6

Dielectric strength: AC 50HZ 2500V/m no scintillation

Normal insulation: >100M

Contact resistance: 50M

Connect form: single-pOle single-throw



Normal close type:

Temperature go up, contact disconnect;

Temperature go down, contact connected



Normal open type:

Temperature go up, contact connected;

Temperature go down, contact disconnected



Hand reset type:

Temperature go up, contact disconnected;

Temperature go down, hand reset



Life time: normal type > 40000 times, hand reset type > 6000 times, high temp type > 10000 times

USE: KSD301 series are used in disinfectant tank, electric water heater, microwave oven.
