Stainless Steel Wire Mesh Wire Cloth & Screen

Supply Ability: 50 Roll(s) per Day
Shipping: Xingang Port
Payment Terms: T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: waterproof paper and plywood case

Quick Details

  • Brand Name: Gaite
  • Technique: Woven
  • Application: Filters
  • Type: Weave Wire Mesh
  • Material: Stainless Steel Wire

Specifications

Gaite Wire Mesh Co., Ltd. Is a factory of stainless steel wire mesh in China.

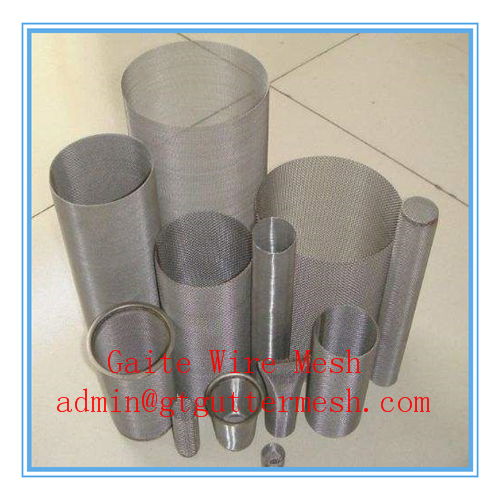

Our mesh have square weave type,dutch weave type and reversed dutch weave type.so,we can satisfy all your filter application.and we also can cut our roll mesh into different size and shape base on your requirements.

Stainless Steel Wire Mesh Wire Cloth and Screen

Square Stainless Steel Wire Mesh(Plain Weave & Twill Weave)

Plain weave mesh is the most common and simplest of all weaves, the Stainless Steel plain weave, is composed of weft wire warped alternately above and below creating a wire mesh. the plain weave is the simplest and the most economical, uses of which include filtration, sifting and for safety equipment. the diameter is almost the same for both the warp and the weave



for heavier needs, the twill weave is recommended. the shut wire is passed above and under two warp wires ensuring that the weave is sturdier as this produces a stronger and more durable wire mesh. the warp and weft have the same diameters thus creating a close diagonal pattern. this type of pattern is mostly used for filtration.



Material: SS 201,202,304,304L, 316,316L, 321, 430,etc.

Mesh Size:40mesh,60mesh,80mesh,100mesh,150mesh,180mesh,200mesh,300mesh,400mesh,

500mesh,600mesh,635mesh.etc.

Roll Width: 1m-6m

Roll Length: 30m



Stainless Steel Wire Mesh Wire Cloth and Screen
Dutch Weave Stainless Steel Wire Mesh

Dutch weave wire mesh also known as"Hollander weave mesh"Is ideal for high-pressure filtration as this is stronger and more durable than plain weave wire meshes. the Dutch uses larger diameters and each weave pattern is made up of a limited number of warp wires, which are interwoven with weft wires creating a cloth that can withstand strong pressure. this type of mesh is usually used for liquid filtration for petrochemical, aerospace, pharmaceutical and even on waste water treatment facilities. Plain and Twill are two types of Dutch weave wire mesh.



Material: SS 201,202,304,304L, 316,316L, 321, 430,etc.

Mesh Size:8x60mesh,12x64mesh,12x80mesh,20x120mesh,24x110mesh,24x140mesh,30x150

Mesh,40x200mesh,52x250mesh,70x350mesh,100x780mesh,120x1100mesh,165x1400mesh,

200x1800mesh.etc.

Roll Width: 1m-6m

Roll Length: 30m



Stainless Steel Wire Mesh Wire Cloth and Screen
Reverse Dutch Weave Stainless Steel Wire Mesh

Reverse Dutch Weave makes use of two different sizes of wires in weaving. the smaller wires are warped against a large shut wire and woven as closely as possible to create a finer and tight mesh cloth. the larger wire is used to strengthen and support the whole mesh.

Material: SS 201,202,304,304L, 316,316L, 321, 430,etc.

Specification

Diameter(mm)

Width(mm)

72/15

0.45x0.55

97----400

120/16

0.35x0.45

97----400

132/17

0.30x0.45

97----400

152/24

0.30x0.40

97----400

160/18

0.28x0.45

97----400

200/40

0.17x0.27

97----400

260/40

0.15x0.27

97----400

300/40

0.15x0.25

97----400

400/120

0.058x0.1

97----400

Other sizes can be customized
