Cangzhou Zhongheng Machine Manufacturer Co., Ltd.
China Manufacturer with main products: Roll Forming Machine, Roofing Sheet Forming Machine, C/Z Purlin Machine, Shearing Machine, Bending Machine, Deck Floor Forming Machine,... |
Stud & Track Roll Forming Machine
| Supply Ability: | 45 Set(s) per Month |
|---|---|
| Shipping: | shipping by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | machine and spare parts are packaged by plastic paper |
Quick Details
- Type: Steel Frame & Purlin Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE/SGS
- Brand Name: ZHONGHENG
- Condition: New
- Type: roll forming machine
- Warranty: 1 year
- Weight: 3TON
- Dimension(L*W*H): 3.5M*1.4M*1.2M
- Power(W): 4KW
- Voltage: 380V/50HZ 3PHASE
- Model Number: 27*28 60*28
- Production Capacity: 45 sets per months
- Work Pressure: Q235
- Shaft diameter: 40mm
- roller material: 45# steel
- Cutting system: none stop
- speed: 45m/min
- structure: 350H beam
Specifications
Stud and track roll forming machine

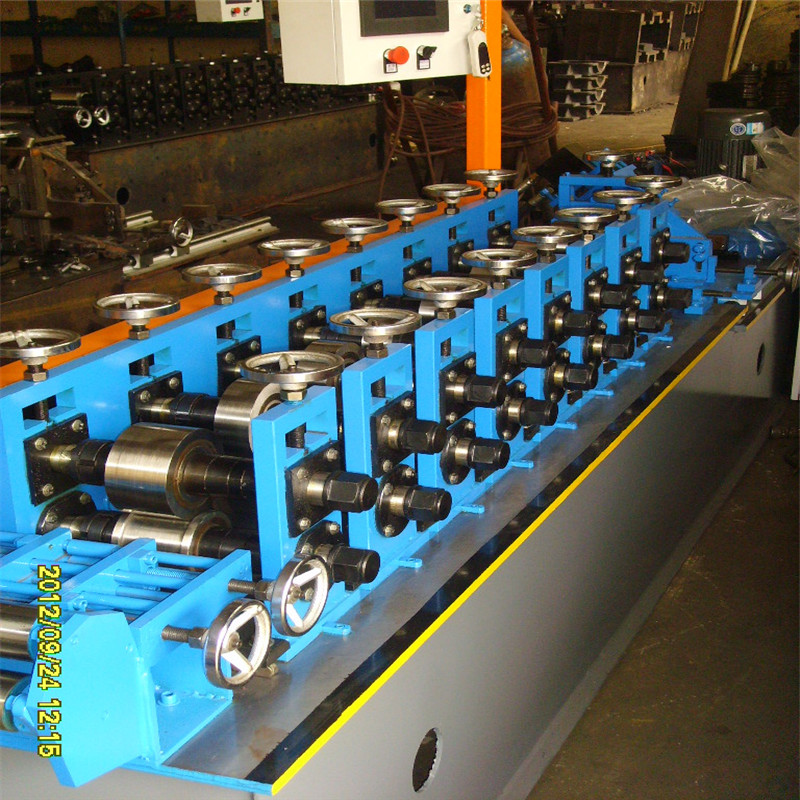

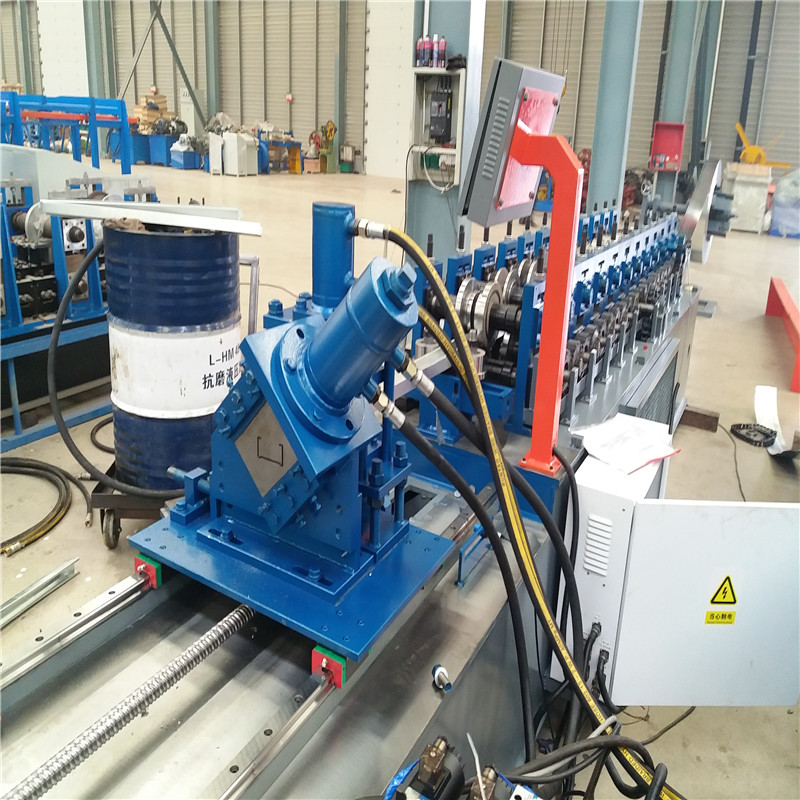

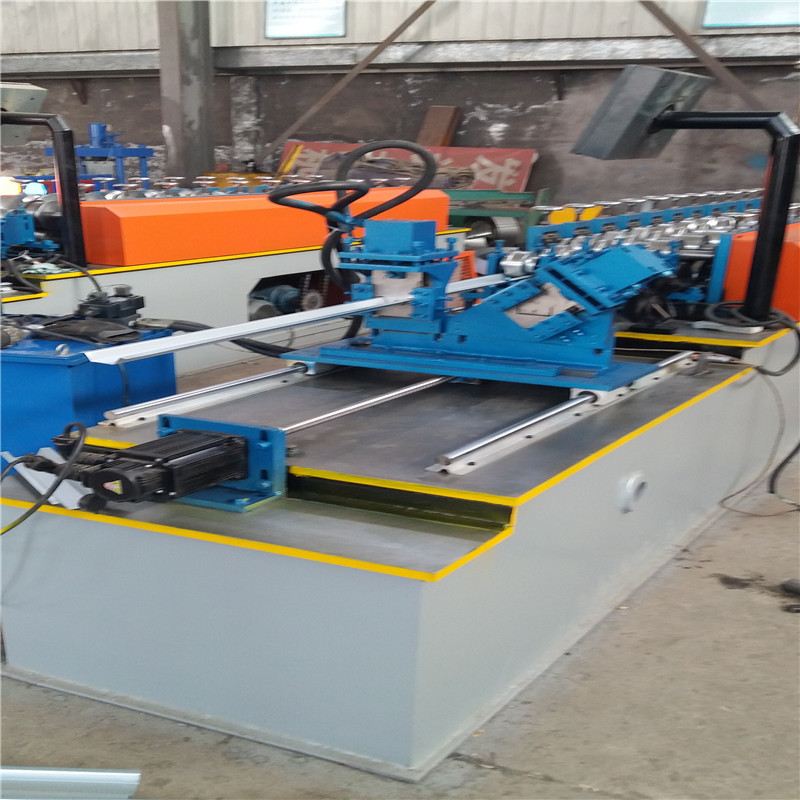

1.Machine picture:
2.Techincal parameters: 1. Power Requirement Type 380v/3ph/50hz Main Motor power 3kw Cutter power 5.5kw with 2.2 kw servo motor 2. Forming speed(m/min) 40-45m/min max Not include the time of cutting 3. Forming stAtions 12Stations 5. Material of rollers CR12 6. Thickness of structure 30mm 7 Forming shaft diameter(mm) 60 8 Drive Gear box 9 Type of cutting Hydraulic cutting 10. Control system PLC xinjie 11. Install dimension(depend on the final design) 4.8m0.6m1.2m without panel length 12. Total weight (Approx) 2.3T Depend on final design 13. Screen Text screen /touch screen
3.Performance features:
NO Name Unit Qty 1 Man-made decoiler set 2 2 Feeding Table set 1 3. Forming Rollers set 1 4. Hydraulic cutting with hole punching set 1 5. Profile Discharger set 1 6. Electric Control system set 1 Brake down and so on (6)Power supplier 380V 50Hz 3phase
