Home >Products Catalog > TFT LCD Display > 1.77 Inch TFT LCD Display Module BN-04-MZHS-177

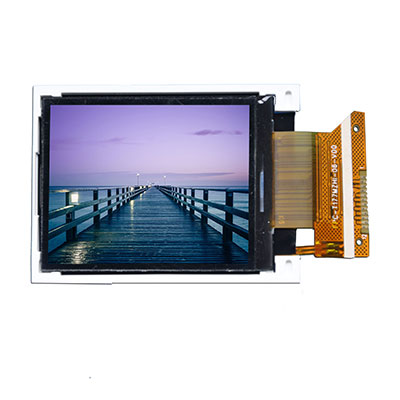

1.77 Inch TFT LCD Display Module BN-04-MZHS-177

Supply Ability:	10,000 Piece(s) per Week

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

177 inch TFT LCD Display Module BN04MZHS177

Item	Contents	Unit
LCD TYPE	TFT/TRANSMISSIVE
MODULE SIZE (WHT)	34.746.72.5	MM
ACTIVE SIZE (W*H)	28.03*35.04	MM
PIXEL PITCH (W*H)	0.219*0.219	MM
NUMBER of DOTS	128*160
DIVER IC	ST7735S
INTERFACE TYPE	SPI
TOP POLARIZER TYPE	ANTI-GLARE
RECOMMEND VIEWING DIRECTION	6	O'CLOCK
GRAY SCALE INVERSION DIRECTION	12	O'CLOCK
COLORS	65K
BACKLIGHT TYPE	2-DIES WHITE LED
TOUCH PANEL TYPE	without
