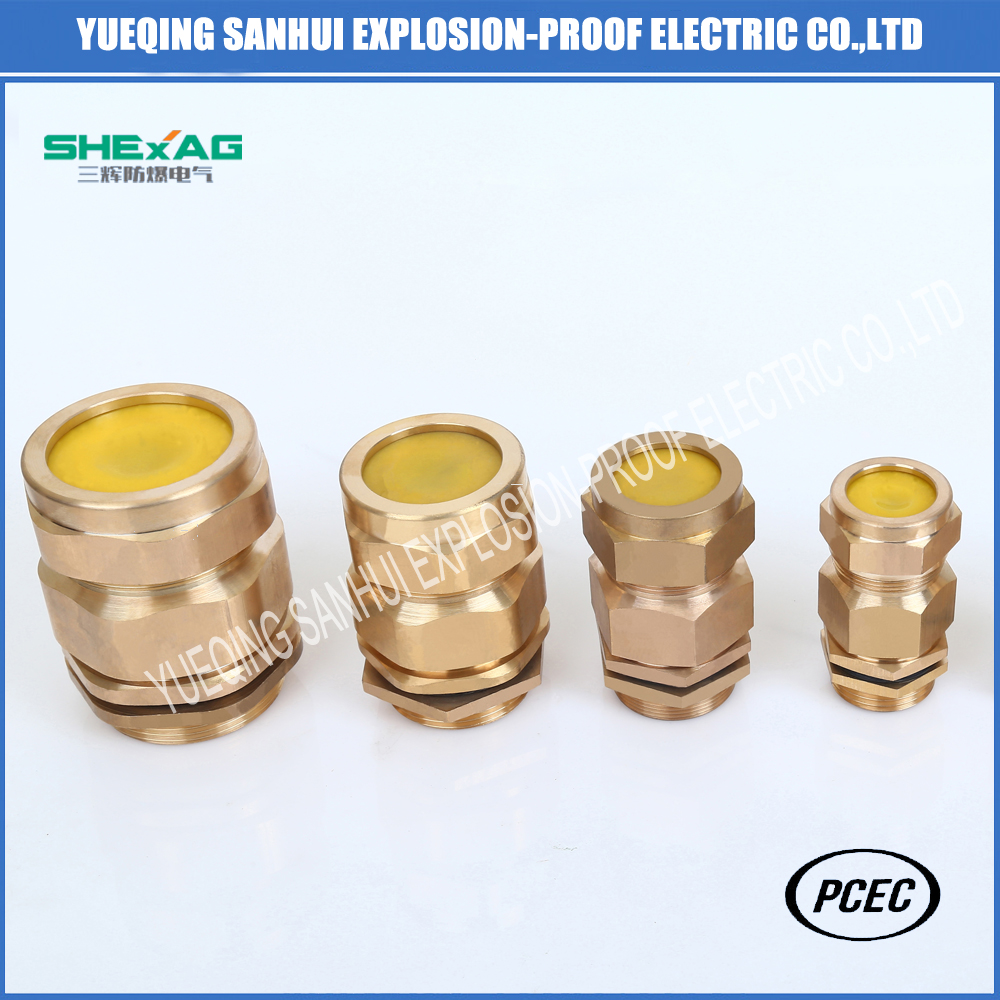

Flameproof Armored Cable Gland Speciall for Steel Wire Armored Cable IP66
| Supply Ability: | 10,000 Piece(s) per Quarter |
|---|---|
| Shipping: | FOB ningbo/shanghai,C&F,E.X.W. and so on |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard export packing |
Quick Details
- Material: Brass
- Size: M16-M110,G1/2-G4,NPT1/2-NPT4
- Protection Level: IP66
- Brand Name: Sanhui
- Color: Gold color
- Model Number: SHBDM-5
- Materials: Brass/brass,nickel planted/stainless steel
- Seal: Silicon rubber
- Protection level: IP66
- Armored cable: steel wire cable/all armored cable
- Advantage: wide cable range
- Cable accessories: Earth tag,and PVC shroud
- Standard accessories of gland: washer & lock nut
- Customization: accepted
- Working temperature: T4-T6
- Ex-mark: Exd IIC Gb
Specifications
SHBDM-5 explosion-proof cable gland or steel pipe wiring
1.Hazardous division 1&2,or 20 or 21,&22
2.Explosive gas atmosphere;class IIA,IIB,IIC or inflammable dust environment.
3.Indoor or outdoor IP66
4.the glands is widely used in the fields of oil,chemical industry,aerospace,military and so on.
Product features
Execution standard:GB3836.1,GB3636.3
Explosion proof mark:ExdIIC GB
Thread:Metric is standard,if there is special
Requirement,such as G,NPT thread,please specify When ordering.
Product materials:304SS,316L,H62
Outline dimension
the technical reference
| Metric(M) | G | Outer diameter of cable (mm) | GL (mm) | Length (mm) | Length (mm) | Ex-mark | Protection Level | |
| Outlet A | Inlet B | |||||||
| M16*1.5 | ----- | 8 | 7-15 | 15 | 68 | 85 | Exd IIC GB |
IP66 |
| M20*1.5 | G1/2 | 8 | 7-15 | 15 | 68 | 85 | ||
| M25*1.5 | G3/4 | 13 | 11-20 | 15 | 72 | 87 | ||
| M32*1.5 | G1 | 16 | 14-25 | 15 | 77 | 92 | ||
| M40*1.5 | G1 1/4 | 21 | 19-33 | 15 | 77 | 95 | ||
| M50*1.5 | G1 1/2 | 25 | 24-41 | 15 | 95 | 100 | ||
| M63*1.5 | G2 | 32.5 | 30-50 | 15 | 99 | 110 | ||
| M75*1.5 | G2 1/2 | 44 | 38-64 | 15 | 113 | 127 | ||
| M85*1.5 | G3S | 52 | 47-74 | 15 | 113 | 127 | ||
| M90*1.5 | G3 | 52 | 47-74 | 15 | 127 | 137 | ||
| M100*1.5 | G4S | 64 | 57-90 | 15 | 127 | 137 | ||
| M110*1.5 | G4 | 72 | 62-103 | 15 | 127 | 137 | ||
