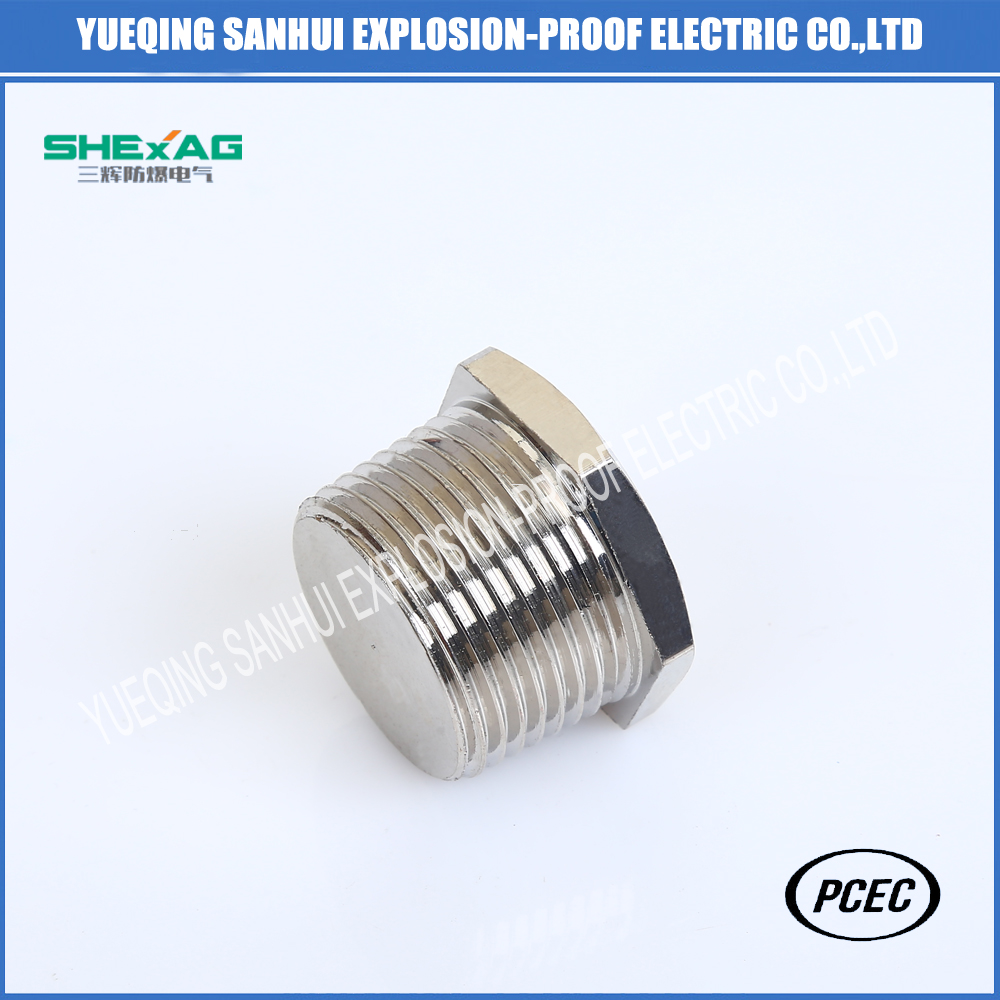

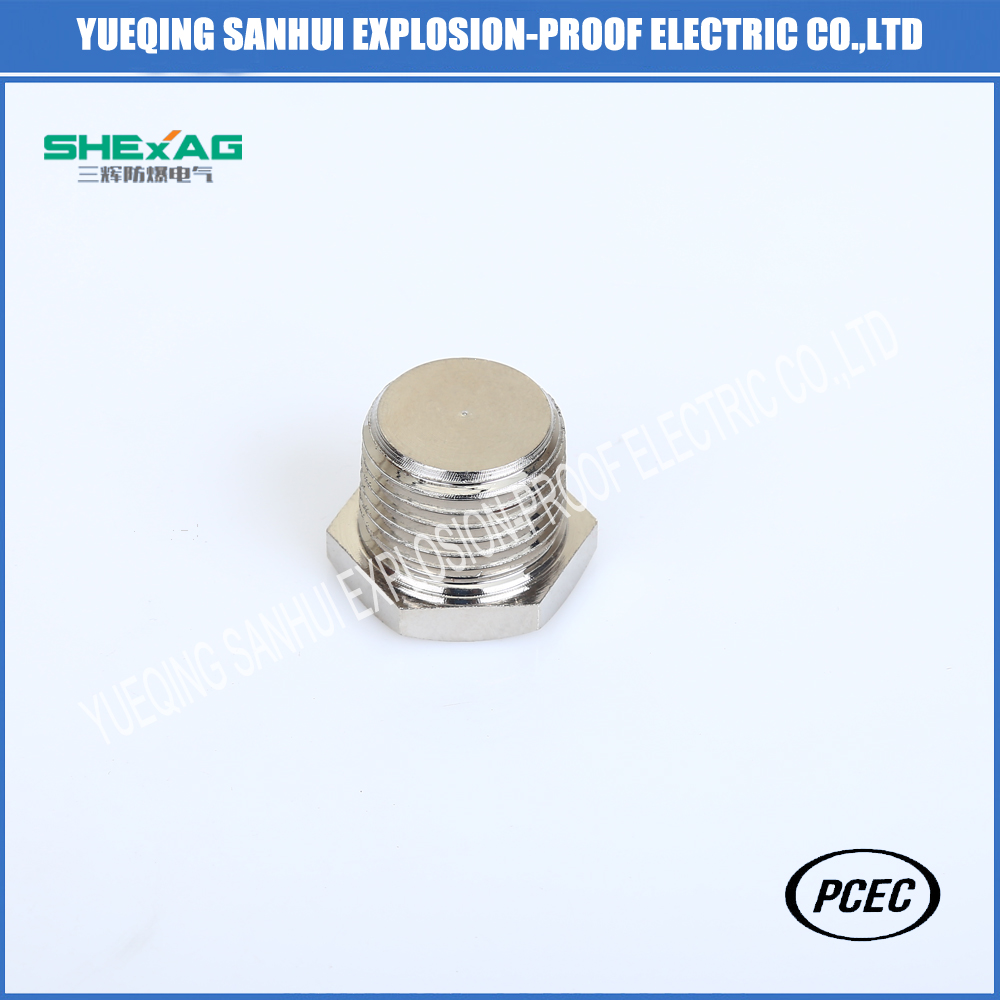

Hexagon Head Metal Stopping Plug IP65

Supply Ability:	10,000 Piece(s) per Quarter
Shipping:	By sea,By air,and by express,can send as requirment
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export packing

Quick Details

Brand Name: Sanhui
COLOR: Silivery
Material: Brass/satinless steel
Size: M,G,NPT,PG
Sample time: 7DAYS
Model Number: sh-06
Material: Brass
Size: M,G,NPT
Protection Level: Other
Color: Silivery
Materials: Brass/brass,nickel planted/stainless steel
Thread: Metric,G,NPT
Customization: accept
Ex-mark: Exd IIC Gb/Exe II Gb/Ex tD A21 IP66
Environment condition: High temperature and atrocious

Specifications

Materials:H62,SS304,316
Surface treatment:nickel planted,passivation
Sealing materials:neoprene
Explosion-proof mark:Exd II GB/Exe II GB/Ex tD A21 IP66
Fireproof grade;VO(UL94)
Protection Level:IP66-bars(screwed-on part)
Ambient temperature:Static from -60C to 100C,short up to 120C,Dynamic from -20C to 80C,short up to 100C without halide.
Environment condition:high-temperature and atrocious.
Outline dimension
Hexagon Head metal stopping plug IP65

Specifications	AG	GL	H	SW
SH06-F-NPT1/2"/M20	NPT1/2"/M20	15	20	24
SH06-F-NPT3/4"/M25	NPT3/4"/M25	15	20	30
SH06-F-NPT1"/M32	NPT1"/M32	15	21	36
SH06-F-NPT1 1/4"/M40	NPT1 1/4"/M40	15	22	45
SH06-F-NPT1/1/2"/M50	NPT1 1/2"/M50	15	24	52
SH06-F-NPT2"/M60	NPT2"/M60	15	26	65
SH06-F-NPT2 1/2"/M75	NPT2 1/2"/M75	15	30	80
SH06-F-NPT3"/M90	NPT3"/M90	18	31	95
SH06-F-NPT4"/M100	NPT4'/M100	20	32	120
