Factory Direct Sale FL2-F 75A 25mV Nickel Plating Shunt Resistor with Stranding Line

Supply Ability:	1,000 Piece(s) per Day
Shipping:	shenzhen port
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export package requirement.

Quick Details

Resistance: 25mv
Package Type: Surface Mount
Technology: Metal Alloy
Type: Fixed Resistor
Brand Name: Jinquan
Resistance Tolerance: 0.5%
Model Number: FL2-F 75A 25mV
Specification: FL2-F 75A 25mV
Current: 75A
Voltage drop: 25mv
Accuracy level: 0.5%

Specifications

the following example is for you reference.

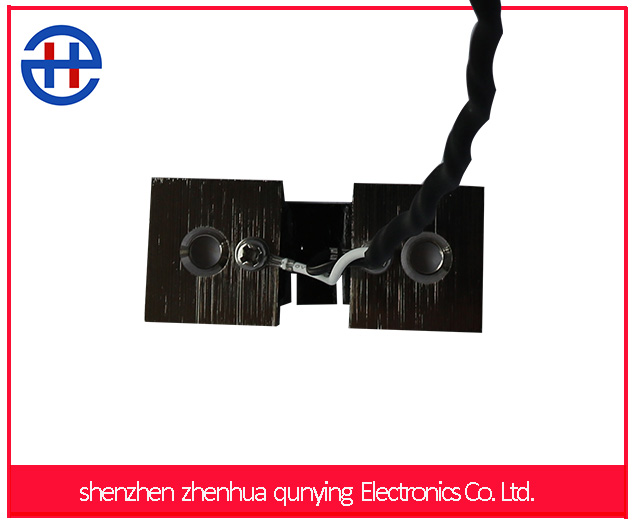

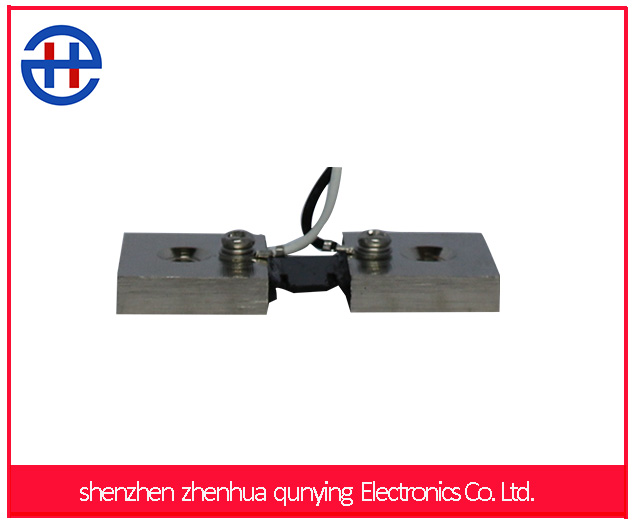

Factory direct sale FL2F 75A 25mV nickel plating shunt resistor with stranding line

Features:

Specification:FL2-F 75A 25mV

Current: 75A

Voltage drop:25mv

Accuracy level: 0.5%

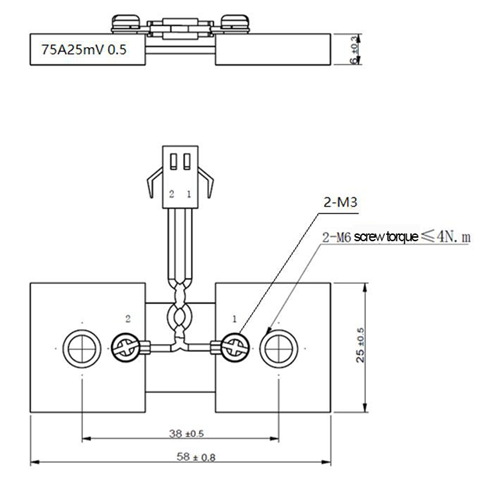

Technical details:

Operation standard:
A. Product standard: national standard of the People's Republic of China: GB/ t766-1998 direct action simulation indicator electrical measuring instruments and their accessories professional standard of the People's Republic of China: JB/ t9288-1999 external attachment diverter.

B. Safety standards: iec61010-1:190 safety requirements for measuring, controlling and laboratory electrical equipment. Part 1: general requirements.

C. Environmental standards: standards for the electronic industry of the People's Republic of China: SJ/T 11363-2006 quantity requirements. Eu: ROHS.

D. Tolerance standard: the tolerance size is not specified in accordance with the national standard for Chinese migrant workers and the national standard: GB/ t1804-2000 rough C execution of general tolerances for linear and angular dimensions without tolerance.

Company pics:

Our service:

Customizing the order of customers. No matter our products' questions are, we will deal with them with customers to make sure that they are satisfied with our products and our service.

Package:
Standard export package requirement.
