Shanghai Kenvo Door Co., Ltd.
China Manufacturer with main products: Rapid Roller Door, Roller Shutter Door, Clean Room Door and Window, Dock Leveler, Dock Shelter, Cold-Storage Door, PVC Mega Door, Hangar Door |
Home
>Products Catalog > Dock System > Fixed Hydraulic Storage Loading & Unloading Container Dock Ramps
Fixed Hydraulic Storage Loading & Unloading Container Dock Ramps
| Supply Ability: | 10,000 Piece(s) per Year |
|---|---|
| Shipping: | FOB/CFR/CNF |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Pack all door parts with cardboard or multi-layer plastic bubble film, to protect them and avoid damages during shipment. |
Quick Details
- Certification: CE, ISO 9001
- Max. Lifting Height: 450mm
- Rated Loading Capacity: 6000-15000KG
- Lift Drive / Actuation: Hydraulic
- Brand Name: Kenvo
- Warranty: 12 months
- Weight: 1000kg
- Overall Dimensions: Customized
- Table Size: 2500*2000*500 (Customized Available)
- Min. Lifting Height: 400mm
- Power: 0.75KW-2.2KW
- Model Number: Dock Leveler
Specifications
Basic Info
Feature: Automatic Certification: CE, ISO 9001
Standard Size: 2500*2000*500 (Customized Available) Trademark: KENVO
Transport Package: Plastic Film Specification: 6000-15000KG
Origin: Shanghai, China
Main Features:
Hydraulic power, durable, high efficiency, customized color and dimension
Application Scope:
Logistics center, dock house, warehouse, factory
Technical Data:
Features:
Product Description

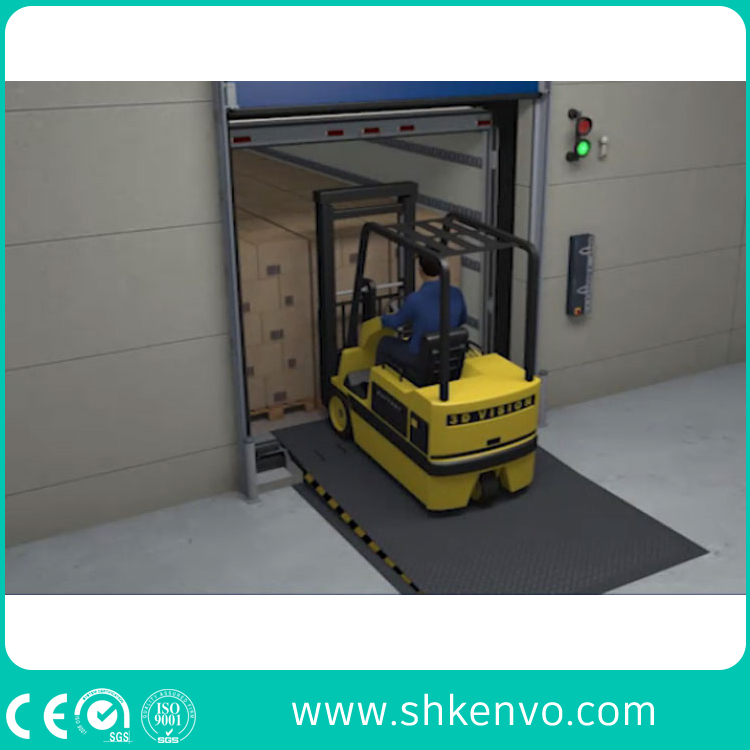

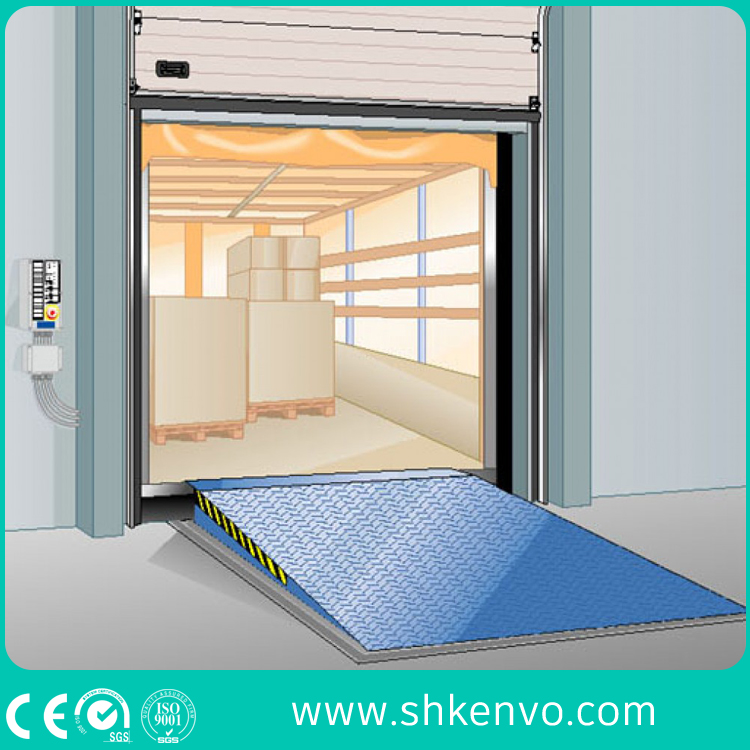

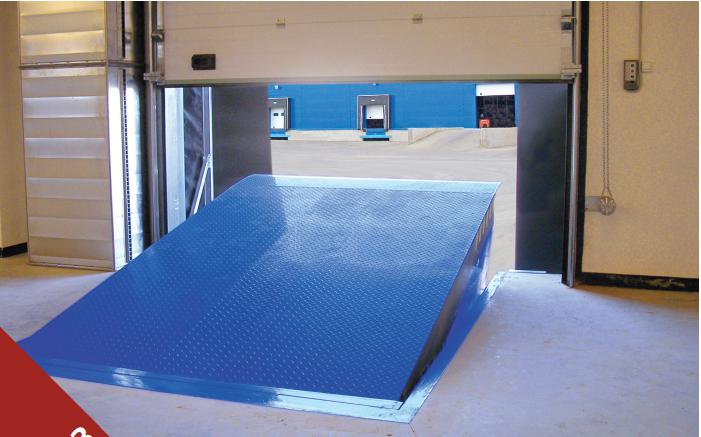

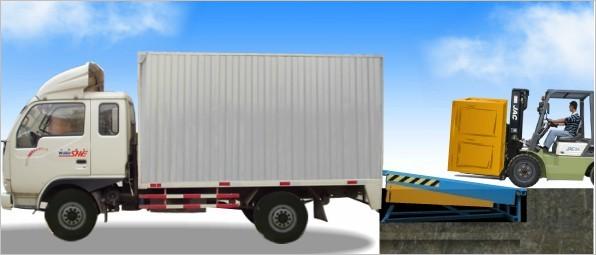

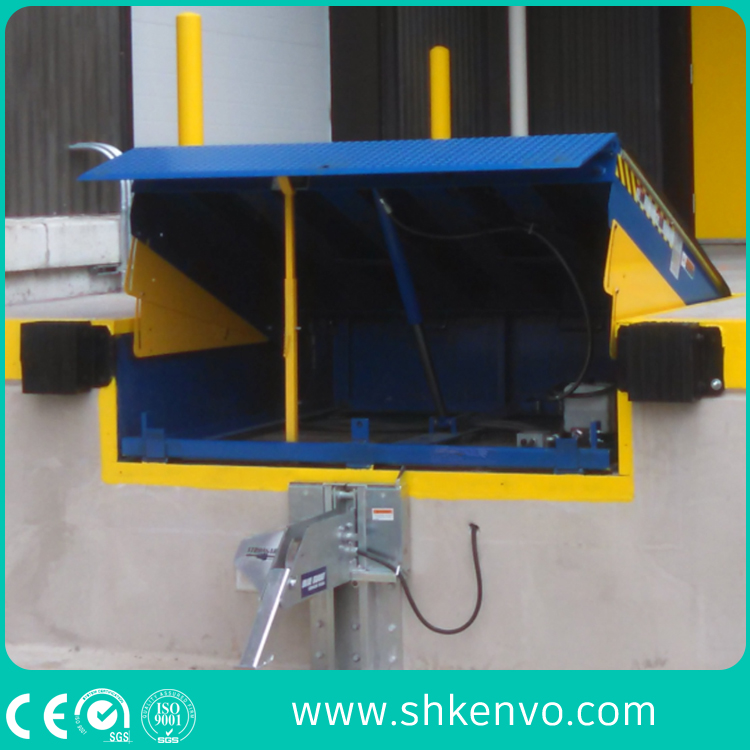

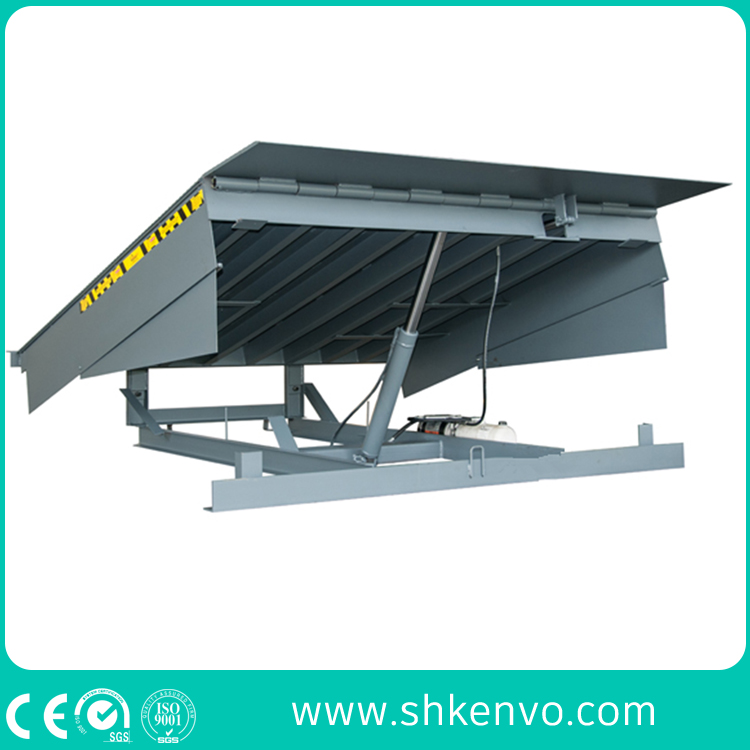

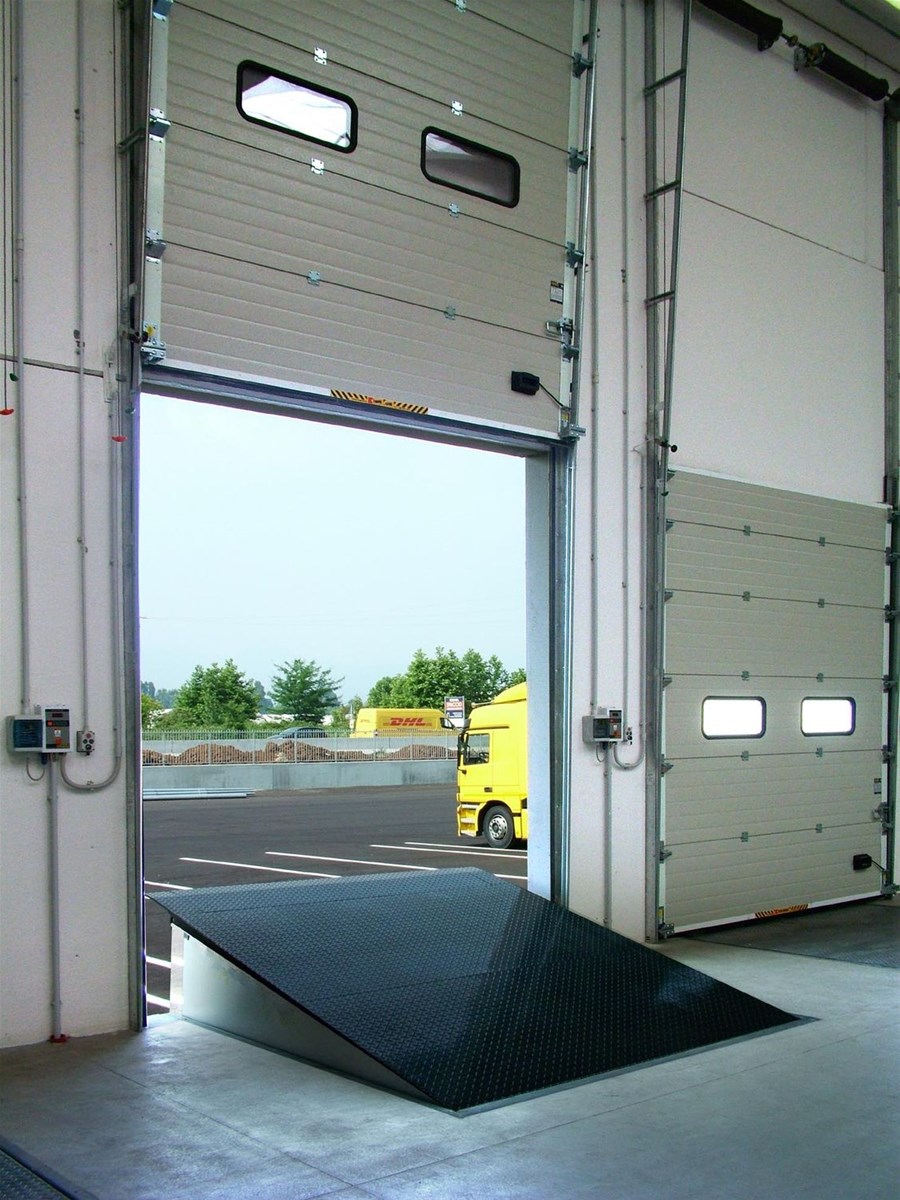

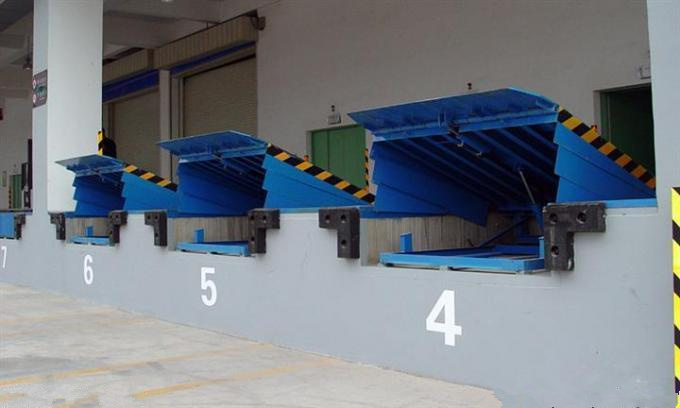

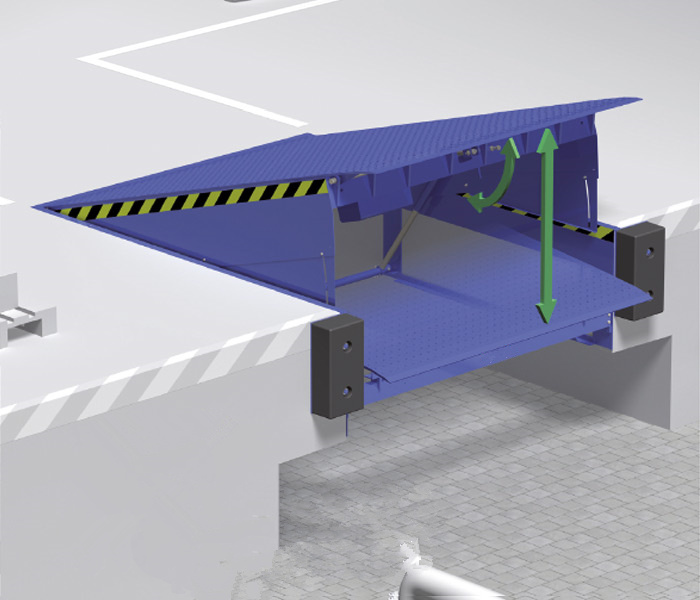

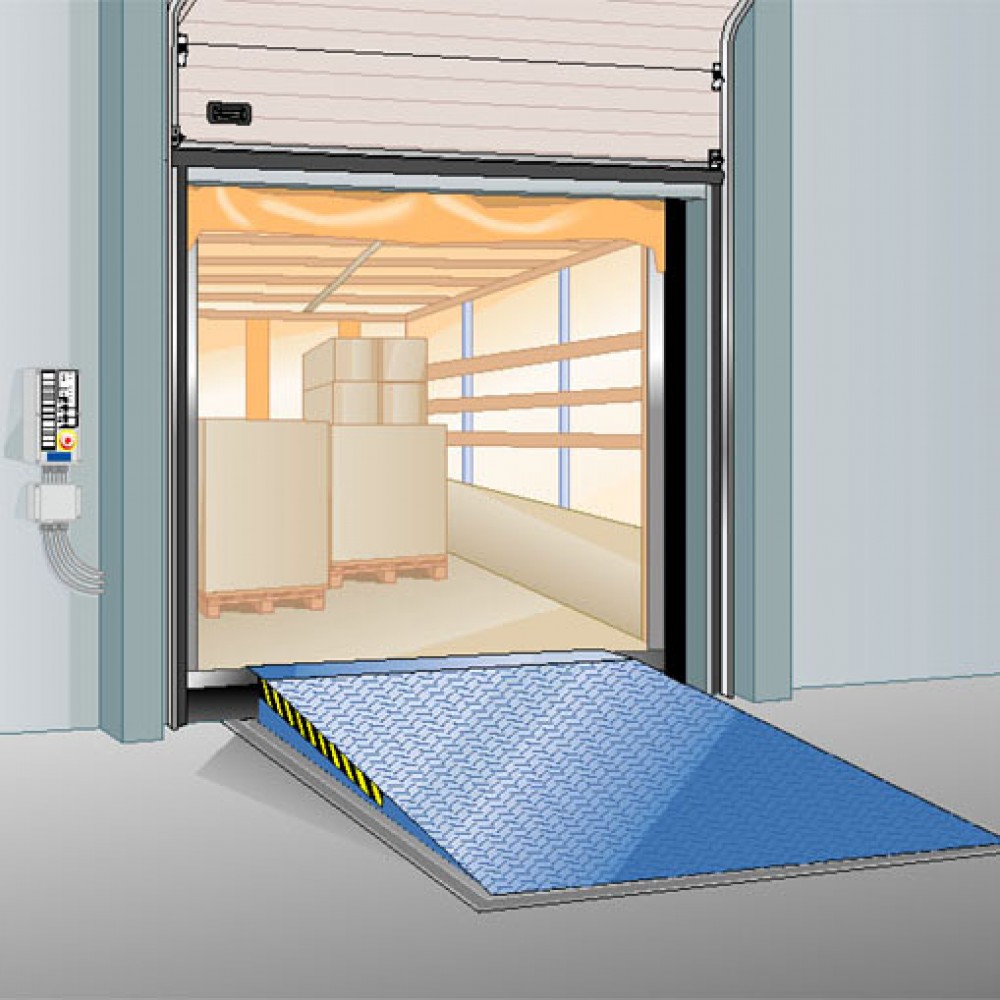

Automatic Hydraulic Dock Leveler
Main Features: Hydraulic power, durable, high efficiency, customized color and dimension
Application Scope:
Logistics center, dock house, warehouse, factory
Technical Data:
| Power supply: | 1-phase 22010%V,50/60HZ, or 3-phase 380V10%V,50/60HZ |
| Load capacity: | 6000KG/10000KG/15000KG |
| Adjusting scope: | -300mm to +350mm |
| Power of motor: | 0.75KW-2.2KW |
| Standard size: | 2500*2000*600 (Can be customized) |
Features:
- the overall assembly can bear 120% load of standard nominal load capacity. under static pressure of 24 hours, the deformation is within 3mm. And after pressure released, the deformation will recover.
- Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove milling to make it anti-skid.
- Hinge and Shaft, are Super-High-Temperature heat treated, to reduce its deformation
- Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high frequency because of very low work temperature of oil. High standard seal avoids oil leaking.
- Surface treatment:Coated with epoxy resin paint, very durable and high anti-corrosive.
