Factory Supplier 200H(B)/48-48BW Bridge Double Coil Contacts Opened Contacts DC Series Contactor for DC Voltage

Supply Ability:	1,000 Piece(s) per Day
Shipping:	SHENZHEN PORT
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export requirement

Quick Details

Main Circuit Rating Current: 200a
Main Circuit Rating Voltage: 48
Brand Name: Jinquan
Model Number: 200H(B)/48-48BW
Specification: 200H(B)/48-48BW
Rated coil voltage: Ue=48V
Maximum coil voltage: 57.6V
Mininum coil voltage: 38.4V
Load current: 200A
Dielectric strength: 50HZ
Coil resistance: 570.8-670
Mechanical life: 10,0000 times
Electric life: 6000 times
Weight: 0.5kg

Specifications

1.Parameter

Bridge Unicoil open contacts

Rated coil voltage: Ue=48V

Maximum coil voltage=57.6V

Mininum coil voltage=38.4V

Load current=200A

Dielectric strength=50HZ

Coil resistance = 570.8-670

Sucking time 40ms

Releasing time 40ms

Mechanical life= 10,0000 times

Electric life=6000 times

Weight=0.442KG

2. Usage condition

Ambient Temperature: work: - 40 ~ + 60; storage and transportation: - 40 ~ + 70

Relative humidity: 95% at 40
Altitude: not more than 2000 meters.

Vibration: 10-55hz,
Amplitude: 0.35mm
Impact: 30m/s2

3. Standard,safty and environmental protection

(1)Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage Switching equipment and control equipment electromechanical contactor and motor Starter standard;

(2)YD/T585-2010General credit distribution equipment technical conditions.

4.Standard,safty and environmental protection

(1)Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage Switching equipment and control equipment electromechanical contactor and motor Starter standard;

(2)YD/T585-2010General credit distribution equipment technical conditions.

5. Order mark standard
factory supplier 200HB4848BW bridge double coil contacts opened contacts dc series contactor for dc voltage

6. Current curve

7. the circuit diagram of the configuration, Installation and terminal

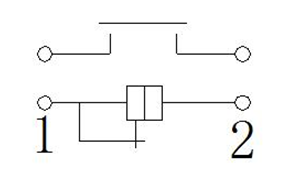

8. the schematic diagram of the terminal circuit
