Home >Products Catalog > dc contactor > Pricise Design 400 Amper 48v Bridge Double Coil Double Coils Normal Open 12V, 24V, 48V for Selection for Electric Motor

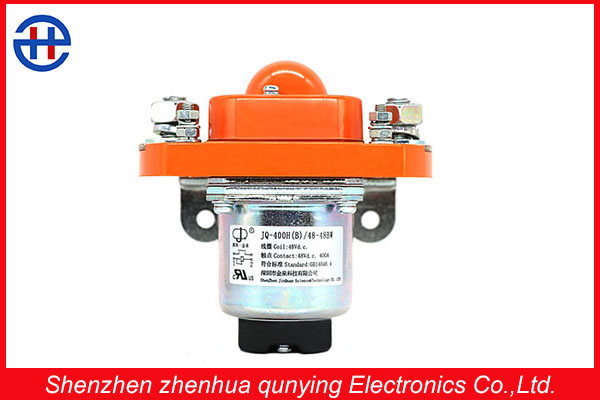

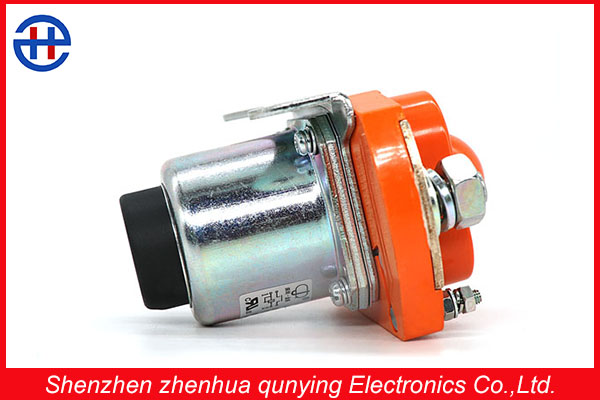

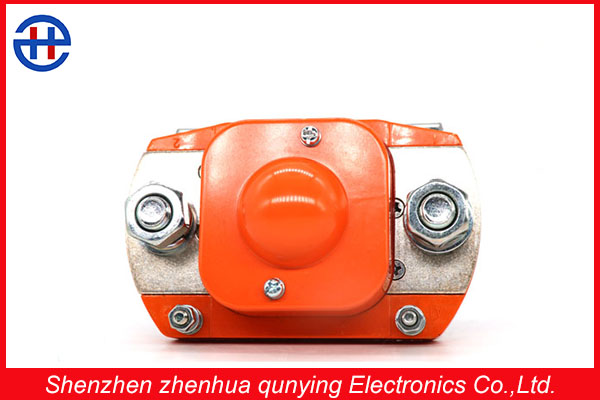

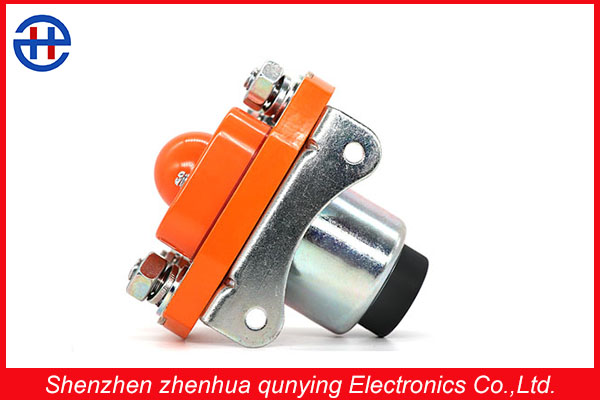

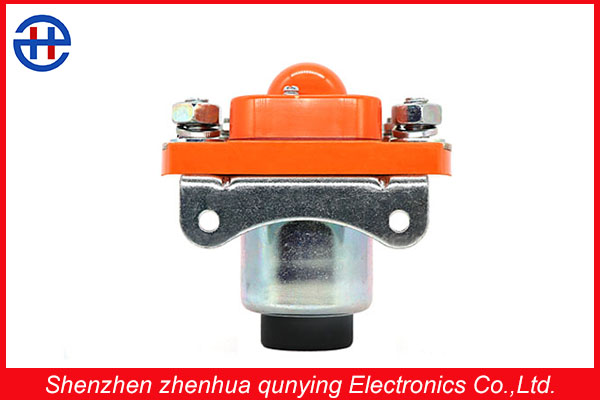

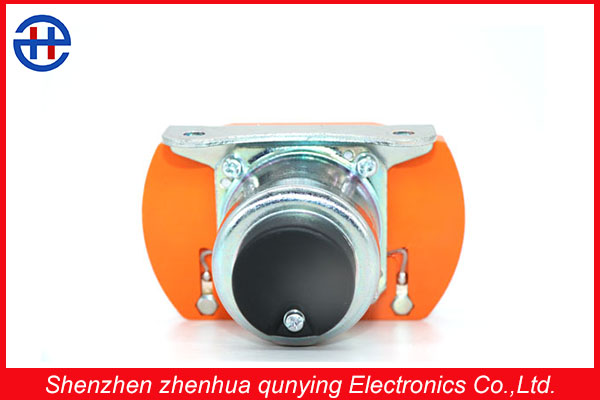

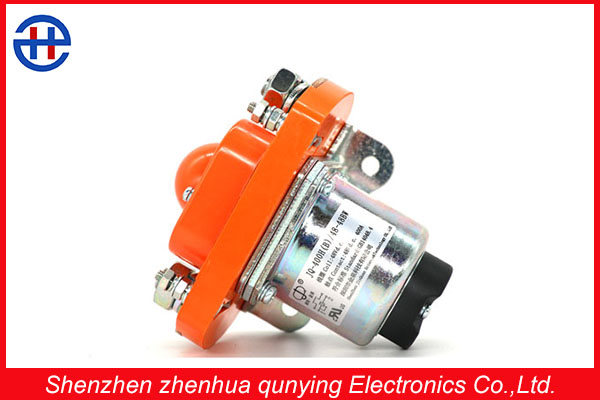

Pricise Design 400 Amper 48v Bridge Double Coil Double Coils Normal Open 12V, 24V, 48V for Selection for Electric Motor

Supply Ability:	1,000 Piece(s) per Day
Shipping:	SHENZHEN PORT
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export requirement

Quick Details

Main Circuit Rating Current: 400a
Main Circuit Rating Voltage: 48
Brand Name: Jinquan
Model Number: 400H(B)/48-48BW
Specification: 400H(B) 48-48BW
Rated coil voltage: Ue=48V
Maximum coil voltage: 57.6V
Mininum coil voltage: 38.4V
Load current: 400A
Dielectric strength: 50HZ
Coil resistance: 585.2-686.8
Mechanical life: 10,0000 times
Electric life: 6000 times
Weight: 0.48kg

Specifications

1.Parameter

Bridge Unicoil open contacts

Rated coil voltage: Ue=48V

Maximum coil voltage=57.6V

Mininum coil voltage=38.4V

Load current=400A

Dielectric strength=50HZ

Coil resistance = 585.2-686.8

Sucking time 40ms

Releasing time 30ms

Mechanical life= 10,0000 times

Electric life=6000 times

Weight=0.48kg

2. Usage condition

Ambient Temperature: work: - 40 ~ + 60; storage and transportation: - 40 ~ + 70

Relative humidity: 95% at 40
Altitude: not more than 2000 meters.

Vibration: 10-55hz,
Amplitude: 0.35mm
Impact: 30m/s2

3. Standard,safty and environmental protection

(1)Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage Switching equipment and control equipment electromechanical contactor and motor Starter standard;

(2)YD/T585-2010General credit distribution equipment technical conditions.

4.Standard,safty and environmental protection

(1)Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage Switching equipment and control equipment electromechanical contactor and motor Starter standard;

(2)YD/T585-2010General credit distribution equipment technical conditions.

5. Order mark standard
Hot product 400HB 4848BW bridge double coil contacts 400A Magnetic DC Power Contactor 12V 24V 48V DC coil rated

6. Current curve

7. the circuit diagram of the configuration, Installation and terminal

8. the schematic diagram of the terminal circuit
