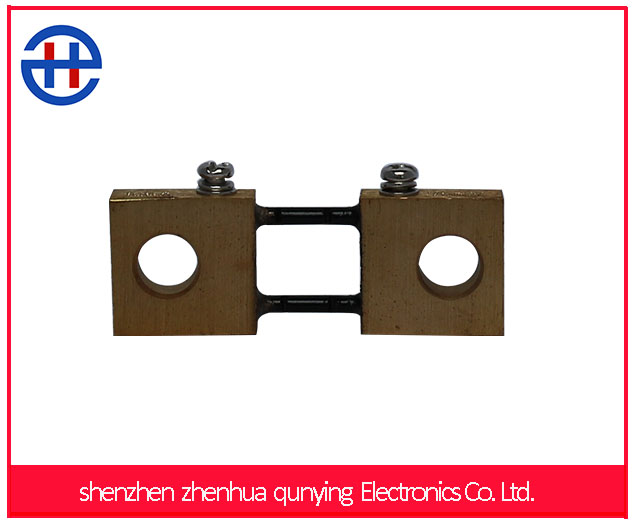

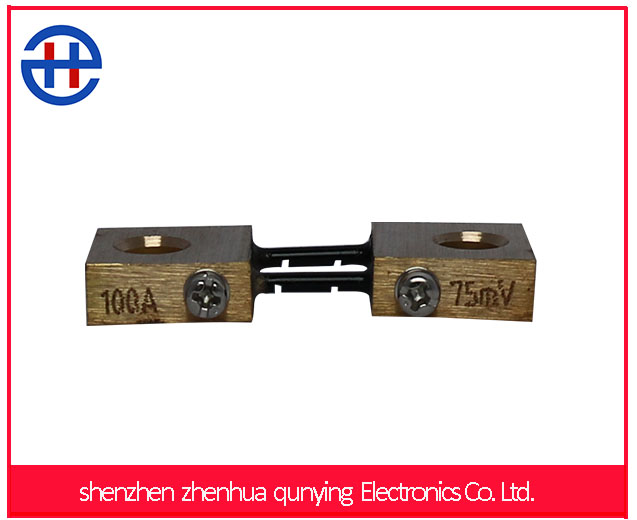

2017 New Arrival FL2-F 100A 75mV DC Current Flowing Small Resistance Shunt Resistor for Current Tester
| Supply Ability: | 1,000 Piece(s) per Day |
|---|---|
| Shipping: | shenzhen port |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard export package. |
Quick Details
- Resistance: 75mv
- Package Type: Surface Mount
- Technology: Metal Foil
- Type: Fixed Resistor
- Brand Name: Jinquan
- Operating Temperature: no
- Temperature Coefficient: no
- Rated Power: 100A
- Resistance Tolerance: 0.5%
- Model Number: FL2-F 100A 75mV
- Specification: FL2-F 100A 75mV
- Rate Current: 100A
- Voltage drop: 75mv
- Accuracy level: 0.5%
- Surface coating: nickel plating
Specifications
the following example is for you reference.
Features:
Current: 100A
Voltage drop:75mv
Accuracy level: 0.5%
Technical details:
We are manufacturer of shunt resistor so we can guarantee the quality.
Operation method of useage:
A. Product standard: national standard of the People's Republic of China: GB/ t766-1998 direct action simulation indicator electrical measuring instruments and their accessories professional standard of the People's Republic of China: JB/ t9288-1999 external attachment diverter.
B. Safety standards: iec61010-1:190 safety requirements for measuring, controlling and laboratory electrical equipment. Part 1: general requirements.
C. Environmental standards: standards for the electronic industry of the People's Republic of China: SJ/T 11363-2006 quantity requirements. Eu: ROHS.
D. Tolerance standard: the tolerance size is not specified in accordance with the national standard for Chinese migrant workers and the national standard: GB/ t1804-2000 rough C execution of general tolerances for linear and angular dimensions without tolerance.
Package:
Standard export package.
