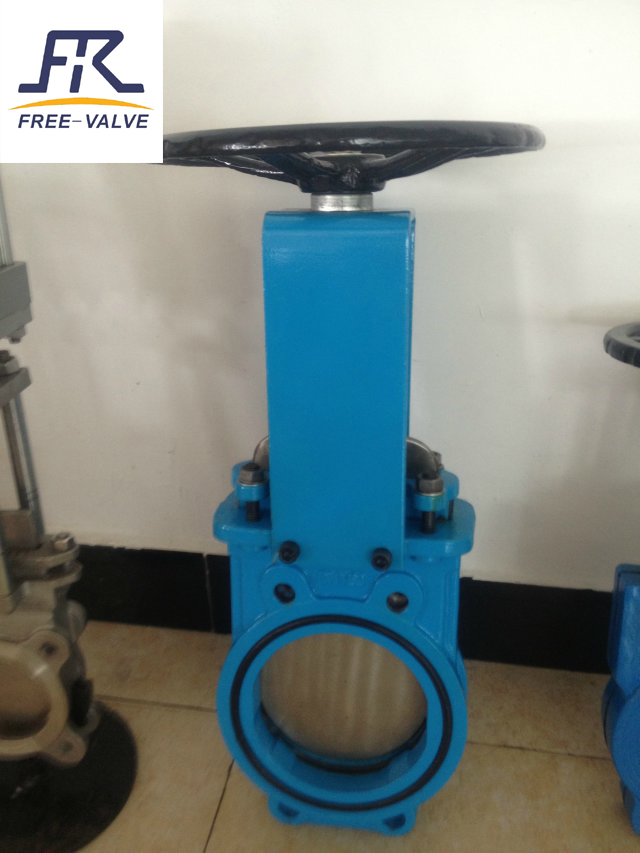

Bi-Directional Knife Gate Valve

Supply Ability:	200 Piece(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden box

Quick Details

Brand Name: FREE-VALVE
Temperature of Media: Medium Temperature
Material: Casting
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: FRZB73
Port Size: DN50~DN1200
Media: Base
Power: Manual
Structure: Gate
color: blue,gray,material color

Specifications

FREE-Valve's Bi-directional knife gate valves are known as slurry gate valves. Its are bidirectional valve deals with flow in both directions, while offering zero leakage. the ushape peripheral seat design ensures full-port flow and non-clogging shutoff.the disc bottom of knife gate valve is made into a blade shape with the purpose to cut some soft materials such as fiber,pulp or wood pulp, and it also serves favorable closing and opening.
Features:
1) Knife gate valve is Bi-directional,zero leakage,withstanding high differential pressure and full bore valve with minimal seat cavity for maximum flow capacity.
2) No groove is designed on the valve seat,which prevents accumulating media on the sealing surface, and thus avoids sealing surface leakage or disc blockage cause by media accumulation.
3) the integrated body structure with precision casing.
4) U-shaped resilient seat is embed into the body and is well connected with the gate,and the friction is reduced during the upward and downward movements of the gate.this greatly prolongs the using life of the seat and realized bi-directional sealing.
5) Replaceable flexible wire reinforced elastomer seat ensures bi-directional zero leakage shutoff.
6) Full port flow path with minimal pressure drop achieved through full port valve design.
gate valve

Technical Specification:
1)Size Range: NPS2~NPS48,DN50~DN1200
2)Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature.: 0~200
4) Connection Type: wafer
5) Sealing material: Rubber,PTFE
6) Body Material: Ductile Iron
7) Disc material:Stainless steel
8) Pressure test:GB/T13927, API598
9) Face to Face: GB/T12221, API609
10) Valve body: GB/T12224,ASME B16.34
Operating Mode: Hand wheel,Bevel Gear,Pneumatic,Electric,Hydraulic
Application:
1. Mining, coal washing, iron and steel industry - used for washing coal pipes, filter slurry pipes, discharging ash pipes, etc.
2. Purification system - used for waste water, mud, sewage and water with suspended solids.
3. Paper industry - used for any mixture of pulp, material and water of any concentration.
