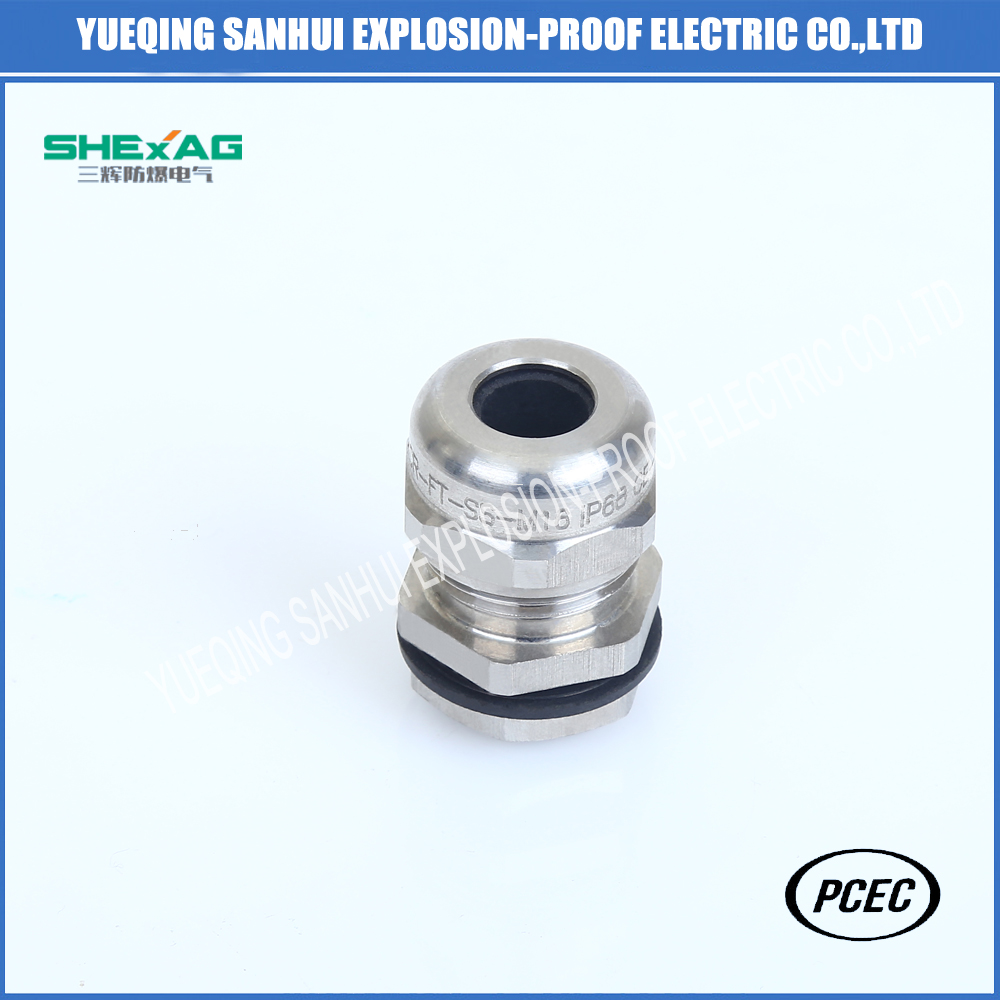

Stainless Steel Watertight Cable Glands IP68
| Supply Ability: | 1,000,000 Piece(s) per Month |
|---|---|
| Shipping: | By sea,by aire,and by express |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard export packing |
Quick Details
- Material: Stainless steel
- Size: M,G,NPT,PG
- Protection Level: IP68
- Brand Name: Sanhui
- Color: Silivery color
- Claw: PA
- Seal: NBR
- Working temperature: -40 to 100
- Thread: M,G,NPT,PG
- Customization: Accept
- Certificate: CE,IP68,ISO9001
- Install: Threaded,and lock nut
- Cable accessories: Lock nut,earth tag,and so on
- Type: Straight type
- Materials: 304/316
Specifications
Product Features
Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board.Long thread type is used for the thin board.Long thread type is used for the thick board.
Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland lock nut until cable is secured.these cable glands are designed to withstand water,dust,salt,acid-base,alcohol,oil and common solvent.
Usage:Waterproof brass cable gland is the product of form a complete set of the cable,connector cable can be locked,the other end can access devices on the box body,also can choose thread access according to th import and export for internal thread electric devices.
Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland lock nut until cable is secured.these cable glands are designed to withstand water,dust,salt,acid-base,alcohol,oil and common solvent.
Usage:Waterproof brass cable gland is the product of form a complete set of the cable,connector cable can be locked,the other end can access devices on the box body,also can choose thread access according to th import and export for internal thread electric devices.
Outline dimension
| Code | Item AG | Cable range(mm | Thread O.D.(mm) | Thread length(mm)GL | Spanner size(mm) |
| SH-NPT1/4 | NPT1/4 | 6.5-3 | 13.6 | 7 | 14 |
| SH-NPT3/8 | NPT3/8 | 8-4 | 17 | 8 | 18 |
| SH-NPT1/2 | NPT1/2 | 12-6 | 21.2 | 8 | 22 |
| SH-NPT3/4 | NPT3/4 | 18-13 | 26.5 | 9 | 30 |
| SH-NPT1 | NPT1 | 25-18 | 33.2 | 11 | 40 |
| SH-NPT1-1/4 | NPT1-1/4 | 33-25 | 41.9 | 13 | 50 |
| SH-NPT1-1/2 | NPT1-1/2 | 38-32 | 48 | 14 | 57 |
| SH-NPT2 | NPT2 | 44-37 | 60 | 14 | 65 |
| SH-NPT2-1/2 | NPT2-1/2 | 52-42 | 72.6 | 15 | 77 |
| SH-NPT3 | NPT3 | 70-65 | 88.6 | 15 | 94 |
