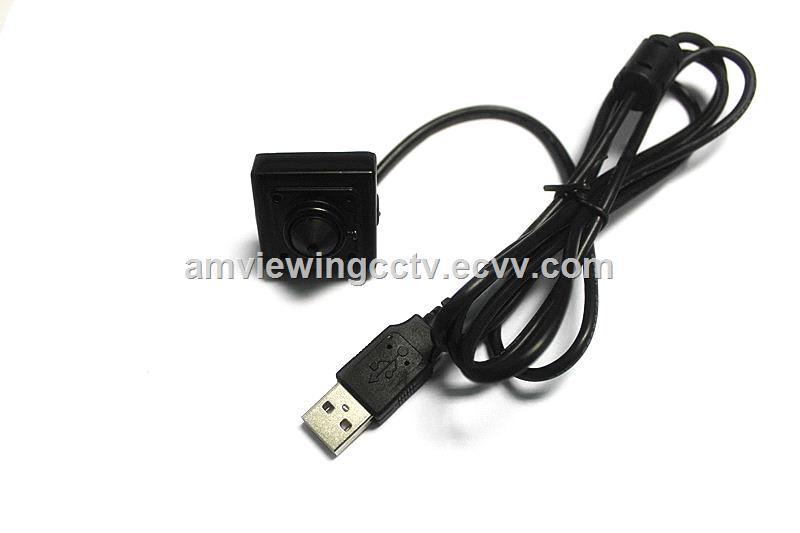

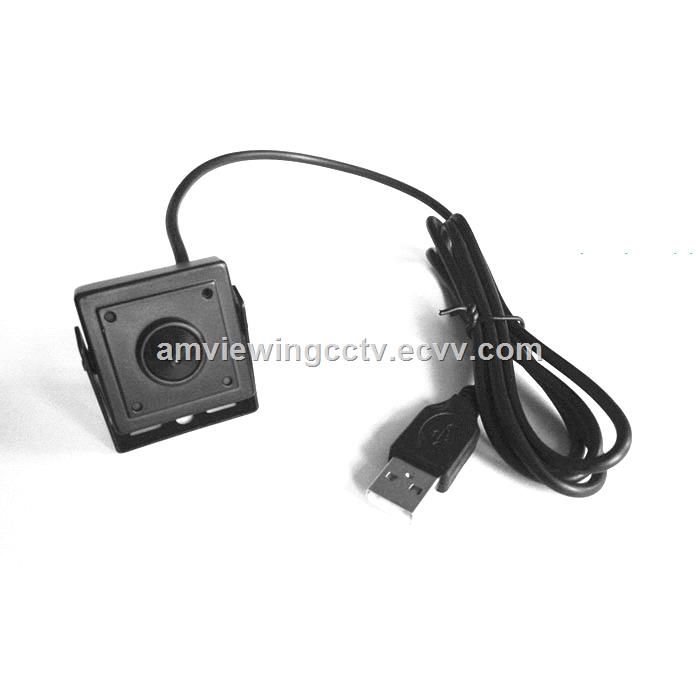

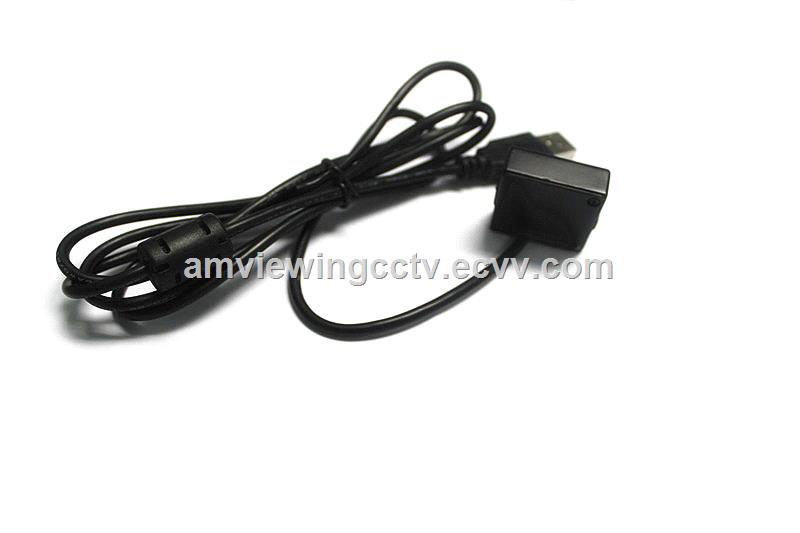

1.3MP HD Pinhole Camera for Atm Machine Camera, Popular Used for ATM Machine& Industrial Equipment, Medical Instrument e
| Supply Ability: | 100,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 2-6 work days for samples;appr.7-20 work days for formal order. |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Color Box,Neutral Packing,Export Carton |
Quick Details
- Special Features: USB interface
- Technology: Pinhole
- Sensor: CMOS
- Type: Digital Camera
- Brand Name: MiyeaEye
- Style: Mini Camera
- Model Number: AV-MU34CP4
- Megapixels: 1.3MP
- Sensor: 1/3
- Lens: 3.7mm pinhole lens
- Interface: usb2.0
Specifications
1.3MP USB Mini Camera
1.30 Megapixel USB Interface Mini Camera. Popular used for ATM Machine& Industrial equipment, medical instrument etc.
Introducting
USB Mini colour camera
Color CDC
Size: 34*34mm
USB Format
Metal casing
Detailed Specifications of the Parameters
Image sensor |
1/3" Color CMOS CCD | |
Effective Pixels |
640(H)X480(V)/1280(H)X960(V)/ | |
Synchronizing system |
Internal | |
Scanning system |
Progressive Scan | |
Video output |
VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ), C iF(160x120) | |
S/N ratio |
More then 48 dB (AGC off) | |
Min. Illumination |
0.8Lux | |
Exposure |
Auto / Manual(Shutter Speed & AGC Control) | |
White Balance |
Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic |
Auto r=0.45 | |
Picture |
Brightness / Contrast / Gamma / Saturation | |
Miscellaneous |
BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source |
5V DC / 400mA | |
Operating current |
125mA / regulated 5.7VC in | |
Lens |
Standard |
3.7mm Pinholes Lens( 3.6mm board Lens optional) |
Operating Temperature |
0 40 (Humidity: 0% RH 80% RH) | |
Interface Type |
USB format(Complies with USB 2.0) | |
Measurement (mm) |
34*34mm | |
Weight (Approx. G) |
70g | |
