Shaanxi Sanmore Industry & Trade Co., Ltd.
China Manufacturer with main products: Lathe Machine, Milling Machine, Drilling Machine, Grinding Machine, Band Sawing Machine, Boring Machine, Machine Tool Accessories |

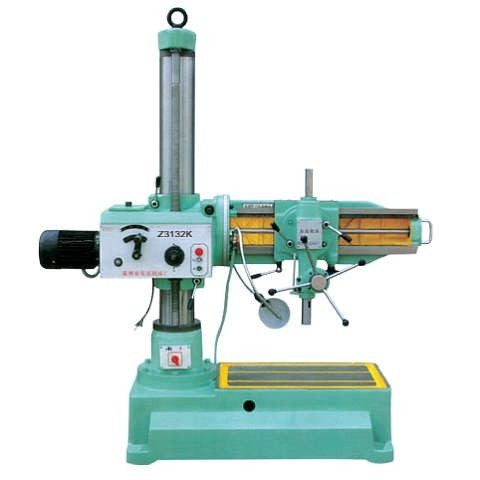

Z3132 Universal Radial Drilling Machine
| Supply Ability: | 50 Set(s) per Month |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: Business License
- Brand Name: Sanmore
- CNC or Not: Normal
- Condition: New
- Model Number: Z3132
Specifications
Z3132 Universal Radial Drilling Machine
Main technical parameters |
Z31328 |
Max drilling diaCasting ironsteel |
31.5/25 mm |
Distance from spindle Axis to the column surface |
Maximum 815mm Minimum 315mm |
Level travel of spindle Box |
50mm |
Distance of spindle nose and working surface of base plate |
Maximum. 870mm Minimum 25mm |
Spindle swivel angle |
360 |
Swing angle of spindle in horizontal plane |
360 |
Spindle rotation angle around the column |
360 |
Rocker arm lifting speed |
1.51 m/min |
Spindle box travel on the column |
845mm |
Spindle taper (Morse) |
NO.3 |
Max spindle Travel |
130mm |
Spindle speed |
173\425\686\960 r/min |
Dimension of base worktable |
710500 mm |
Main motor power |
1.5kw |
Machine weight (about) |
850kg |
Overall size(LWH) |
18007002044 mm |
the price here is not the real price, just for product display. for more information. Please feel free to contact us!
