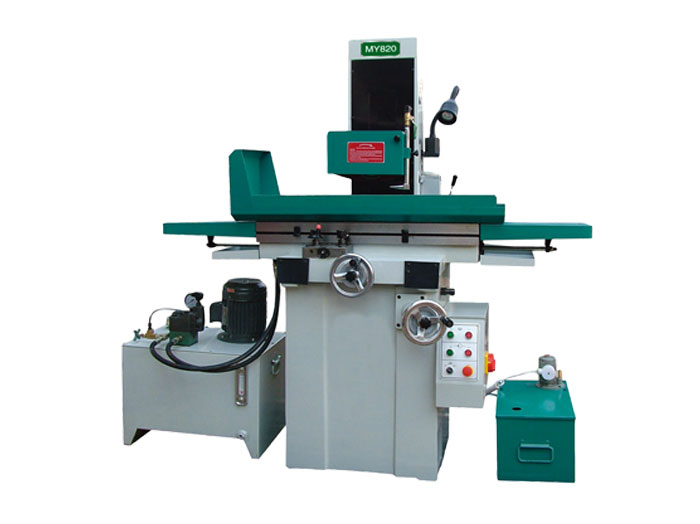

MYS820 Surface Grinding Machine Grinder Machine
| Supply Ability: | 50 Set(s) per Month |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|
Quick Details
- Weight: 790kg
- Brand Name: Sanmore
- CNC or Not: Normal
- Type: Surface Grinding Machine
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: MYS820
Specifications
MYS820 Surface Grinding Machine Grinder Machine
Technical Parameters |
Unit |
M820AH |
MYS820 | |
Max. Workpiece to be Ground ( LWH) |
mm |
520220490 |
520220490 | |
Max. Grinding Length |
mm |
530 |
530 | |
Max. Grinding Width |
mm |
220 |
220 | |
Distance from Table Surface to Spindle Center |
mm |
490 |
490 | |
Slide way |
V-type rail with Steel-ball |
V-type rail with Steel-ball | ||
V-type rail with Steel-ball |
Kg |
200 |
200 | |
Table Size (LW) |
mm |
480220 |
480220 | |
Number of T -Slot |
mmn |
121 |
121 | |
Speed of Working Table |
M/min |
3-23 |
3-23 | |
Cross Feed on Handwheel |
mm |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution | |
Vertical Feed on Handwheel |
mm |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution | |
Wheel Size (dia. Widthbore ) |
mm |
2001631.75 |
2001631.75 | |
Spindle Speeds |
50Hz |
rpm |
2850 |
2850 |
|
0-6000 |
30-6000 | ||
Spindle Motor |
Kw |
1.1 |
1.1 | |
Hydraulic station motor |
Kw |
1.5 |
1.5 | |
Working Pressure |
Mpa |
3 |
3 | |
Max.Capacity |
L/min |
18 |
18 | |
Minimum of Numerical |
L |
80 |
80 | |
Coolant Pump |
Kw |
0.4 |
0.4 | |
Minimum of Numerical Display |
mm |
0.001-0.005 | ||
Machine Size (LWH) |
mm |
168011401760 |
168011401760 | |
Packing Size (LWH) |
mm |
114016301940 |
114016301940 | |
Gross/Net |
T |
O.85/0.75 |
O.89/ 0.79 | |
