Double-Cylinders Hydraulic Thermoplastic Melting Kettle

Supply Ability: 5 Set(s) per Month
Shipping: Tianjin Port
Payment Terms: L/C, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanxi in China
Packaging Details: 1sets/tray

Quick Details

  • Drinkware Type: Water Pots & Kettles
  • Brand Name: Shanxi Jiuda
  • Feature: Stocked
  • Certification: CIQ
  • Material: Silicone
  • Drinkware Type: --
  • Model Number: ---
  • After-sales Service Provided: Overseas service center available
  • Certification: ---
  • Features: ---
  • Condition: New
  • Warranty: 12 months
  • Weight: 1200kg
  • Dimension(L*W*H): 1850*1730*1550
  • Power(W): 12.3kw, Electric start, evaporation, water-cooled diesel engine

Specifications


DoubleCylinders Hydraulic Thermoplastic Melting Kettle
Product introduction


LLJRF1200 type thermoplastic melting kettle is a. Hydraulic drive motor is designed to be Series Circuit, no matter single cylinder works or double cylinders work at the same time, it also can ensure the rated speed is constant.

Combustion system with high efficient and energy saving burner ensure the heat exchange high efficiently. Continuous working time is long; the cover of exhaust pipe cover is equipped. Simple operation and easy maintenance.

the molten material kettle has a good effect of thermal insulation and heat preservation, because it adopts a sandwich structure which is filled with aluminum silicate insulation board in the middle. The bottom of the kettle is an extrusion moulding arc pot, so, it has a strong ability to resist deformation;



Technical parameter

1  Engine power: 12.3kw,  Electric start, evaporation, water-cooled diesel engine.

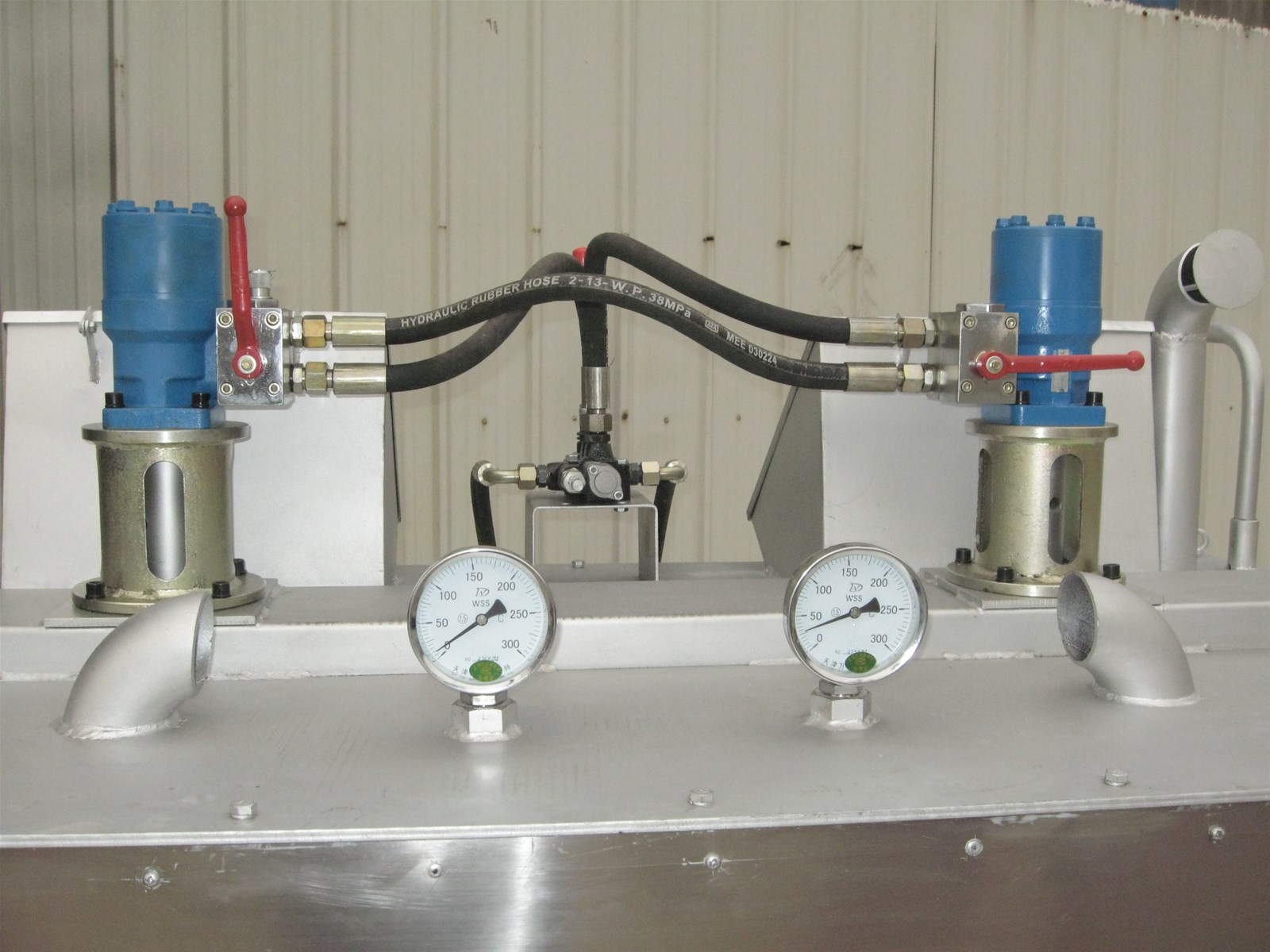

2  Hydraulic transmission system: multiplex integrated hydraulic control valve, forward and reverse stirring, infinitely variable speeds.

3   : BM type

Stirring speed   3080nmin

4  Hydraulic oil tank capacity: 50L
5  Cylinders capacity:  290L(600Kg)2

6.   Stainless steel cylinder, high carbon steel pot, upright paddle type stirring system.

7 Structure:  frame structure, the thermal insulation material are filled between the liner and the outer layer of the kettle

8 Heating system:  liquefied petroleum gas or diesel (optional).

9 Safety device:  specially designed overload overflow device can prevent wrong operation

10.  Stirring:  stepless speed regulation, forward and reverse rotation; Handling: integrated reversing valve

11.  Burner:  direct injection and high efficiency burner

Fuel:  liquefied petroleum gas
12.  Boundary dimension(mm): 1850(L)1730(W)1550(H)

 Weight: 1200Kg
