Six Head Hydraulic Wood Sawdust Pallet Feet Block Extruder Machine for Sale

Supply Ability:	50 Set(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden cases or soft film in container

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: Invech
Condition: New
Certification: CE
Voltage: 380v
Model Number: YHP-6
name: wood block machine
applycation: pallet feet
block size: 70-145mm
block density: 550-600

Specifications

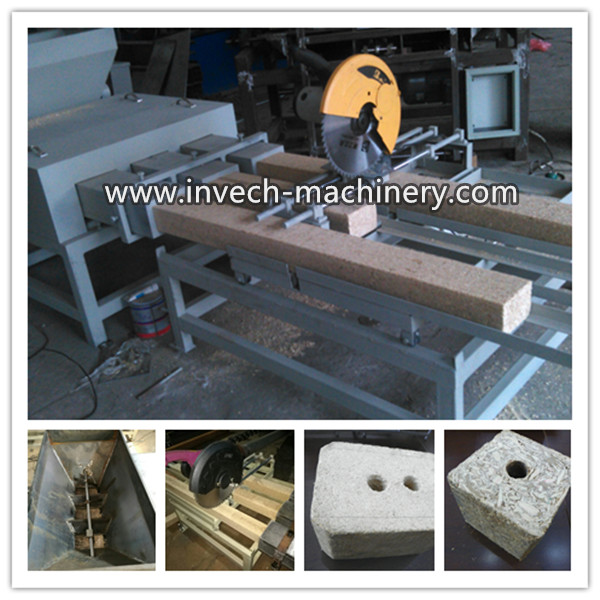

Six Head Hydraulic Wood Sawdust Pallet Feet Block Extruder Machine for Sale

1.Brief Introduction:

B. the wood block machine of our company is designed by Professional engineer according to the optimization principle and can do Special customization.

that is you just need to tell us what you need, such as plant Size, raw materials, expected output etc, we can provide you with the most Suitable machines and the production plan.

D. Raw material

Wood sawdust or shavings and urea-formaldehyde glue.

2.Techincal parameters:

Model	YHP-2	YHP-4	YHP-6
Size	49006001800	49008001800	49009401800
Capacity	2-4m3/24hr	4-6m3/24hr	6-8m3/24hr
Glue Consumption	90-100kg/m3	90-100kg/m3	90-100kg/m3
Density	550-600kg/m3	550-600kg/m3	550-600kg/m3
Power	12-15kw	18-25kw	24-30kw
Weight	1000kg	1200kg	1500kg

3.Performance features:

2. the raw materials could be sawdust, Shavings, branches, used wooden pallets or waste wood. that would be useful to Recycle waste material and be a environmentalist.

3. It's used hydraulic transmission, Horizontal driving the mould to continuous extruding wood blocks and no Interruption.

4. Our machine is easy to operate,1 person Can look after 3 working machines. Just set the parameters of the machine and Feeding raw mixed materials, then you can wait for the out blocks.

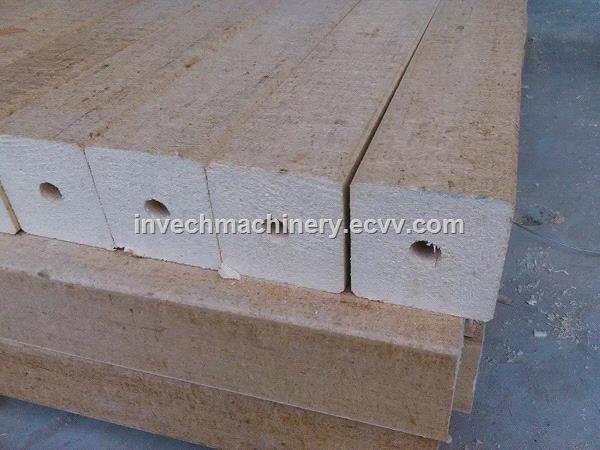

5.the final products of the machine have smooth and beautiful Surface with a large carrying capacity. They are strong, durable and away from Worms.

4. Package&Delivery
