Zhengzhou Invech Machinery Co., Ltd.
China Manufacturer with main products: Wood Pallet Making Machines, Wood Pallet Nailing Machine, Wood Pallet Block Machine, Wood Crushing Machine, Wood Chipping Machine, Wood... |

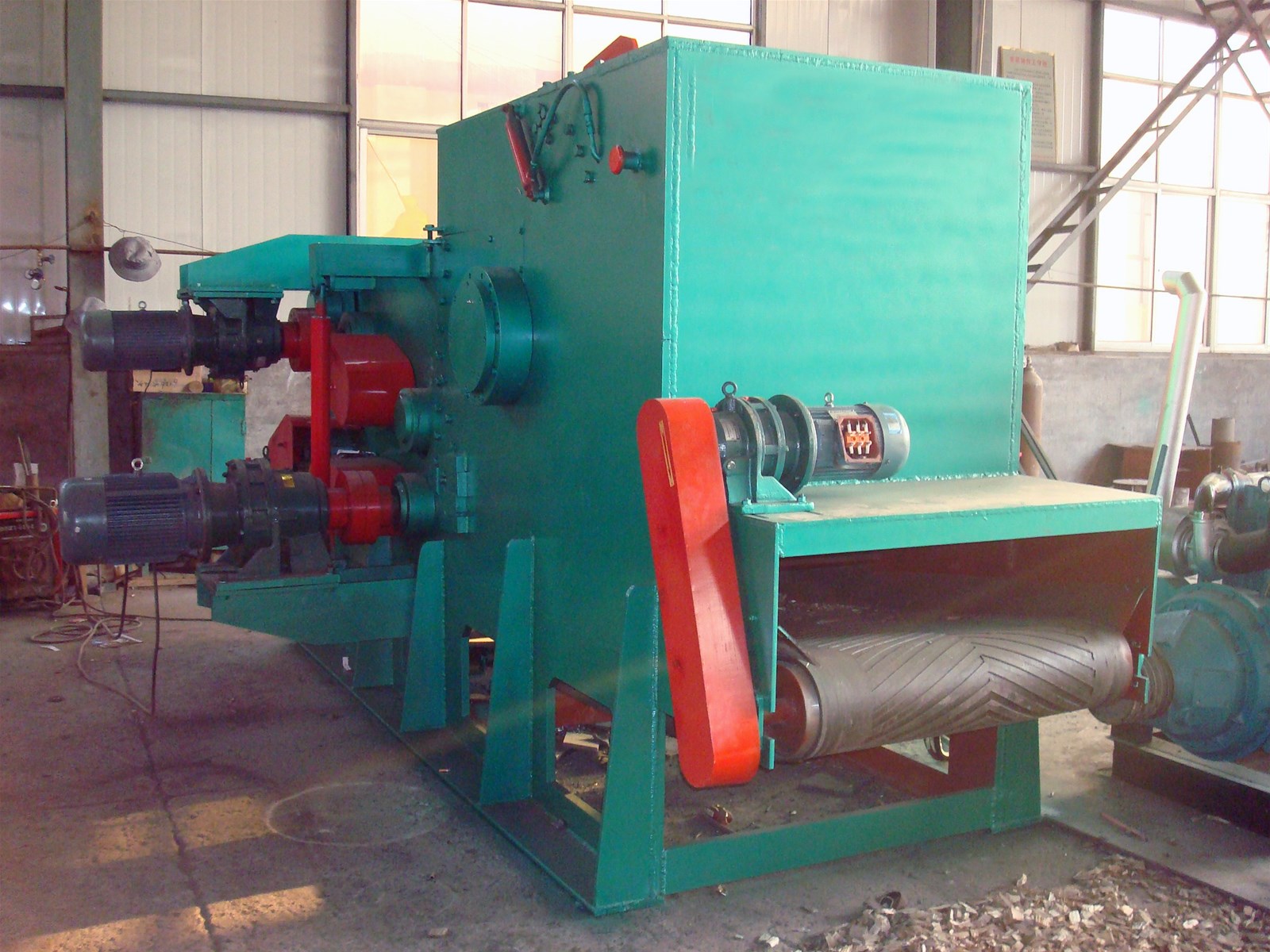

Drum Type Wood Chips Making Machine
| Supply Ability: | 100 Set(s) per Month |
|---|---|
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | soft films in container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 2900kg
- Brand Name: Invech
- Condition: New
- Dimension(L*W*H): 3421*1790*1060mm
- Model Number: BX215
- Inlet Diameter: 160mm
- Cutter Diameter: 200mm
- Length of Cutter: 200mm
- Number of Cutter: 2
- Spindle Speed: 592
- Aperture Size: 30
- Mill Granularity: 30mm
- Power: 45kw
- Feeding Port Size: 160*400mm
- Capacity: 3000-4000kg
Specifications
Drum Type Wood Chips Making Machine
1.Brief Introduction:
Drum cut piece of machine series products are special equipment of production of wood, the products are widely used in particle board factory, in high density fiberboard, factory, stubble factory, biomass power plant, of wood factory and manufacturer of industrial production preparation before section of the preferred equipment.
2.Techincal parameters:
|
Type |
BX215 |
BX216 |
BX218 |
BX2113 |
|
Feeding Port Size(mm) |
160*400 |
300*680 |
230*500 |
450*700 |
|
Cutter No.(PCS) |
2 |
2 |
2 |
2 |
|
Roller Speed(rd/hr) |
592 |
650 |
590 |
520 |
|
Max Raw Materials Diameter(mm) |
160 |
300 |
230 |
450 |
|
Chips Size(mm) |
30 |
30 |
30 |
38 |
|
Capacity(t/hr) |
3-4 |
12-15 |
7-8 |
15-30 |
|
Main Power (kw) |
45 |
110 |
55 |
200-250 |
|
Feeding Roller Motor(kw) |
2.2-3 |
4-5 |
3-4 |
7.5-2 |
|
Pump Motor(kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
|
Weight(kg) |
2990 |
7000 |
4070 |
11840 |
|
Appearance Dimensions(mm) |
|
4670*2150*1500 |
4348*1730*1258 |
3670*2517*2050 |
|
Feed Conveyor Motor(kw) |
3 |
3 |
3 |
3 |
3.Performance features:
A. The machine adopts high strength steel welding and into, is the whole machine of supporting the foundation.
B. Knife roller are installed on the two or three, four fly knife, use special manufacture of fly knife, through the pressure of bolt, fly knife fixed in the knife roller.
C. According to the thickness of the different raw materials by cutting, feeding roller assembly can use hydraulic system in a certain range to fluctuate.
D. Cutting down of material through the screen mesh of qualified down at the bottom of the hole, the discharge, big piece of material will be cutting machines.
