Hebei Xinqi Pipeline Equipment Co., Ltd.

China Manufacturer with main products: Stainless Steel Corrugated Pipe, Metal Bellows, Metal Bellows Compensator, Dismantling Joint, Expansion Joint, Flange, Elbow&Bend, Tee&Cross

Home >Products Catalog > metall bellows > Metal Bellows for Compensator Corrugated Pipe Flexible UNS N08825 DN40 PN10 Bar Single Wall

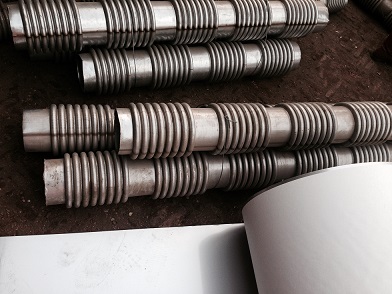

Metal Bellows for Compensator Corrugated Pipe Flexible UNS N08825 DN40 PN10 Bar Single Wall

Supply Ability:	2,000 Piece(s) per Day
Shipping:	FOB Tianjin sea port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden case

Quick Details

Connection: Flange
Brand Name: XQ
Type: metal compensator
Technics: cold forming
Material: Stainless Steel
Shape: Equal
size: DN40
design pressure: PN10 bar
material: UNS N08825
layers of wall: single

Specifications

Introduction of stainless steel expansion joint metal bellows

Metal Bellows Expansion joint (they are also called compensator ) are compensating Elements for thermal expansion and relative movement in pipelines, containers and machines. They consist of one or more metal bellows, connectors at both Ends, and tie rods that depend on the application. They are differentiated According to the three basic types of movement: axial, angular and lateral Expansion joints.

Metal Bellows are elastic vessels that can be compressed when pressure is Applied to the outside of the vessel, or extended under vacuum. When the Pressure or vacuum is released, the bellows will return to its original shape (provided the material has not been stressed past its yield strength).

Features of stainless steel expansion joint metal bellows

1.Reasonable Structure, good elasticity, large range of compensation pipeline and little Counter force to the brackets of pipeline.

2.Shock absorption and noise decrease, heat and dust insulation, environmental protection and Simple structure bracket.

3.the displacement Can be deflected to prevent damage caused by subsidence of connected brackets and equipment base. It can adapt itself to the centrifugal difference of Pipeline installation to provide convenience to installation and maintenance.

4.Good resistance to Milling, heat, aging and corrosion and long service life.

5.Little resistance and little weight. Each performance is better than the compensation device of Other materials.

6.the temperature Range of media is wide:-40300c
