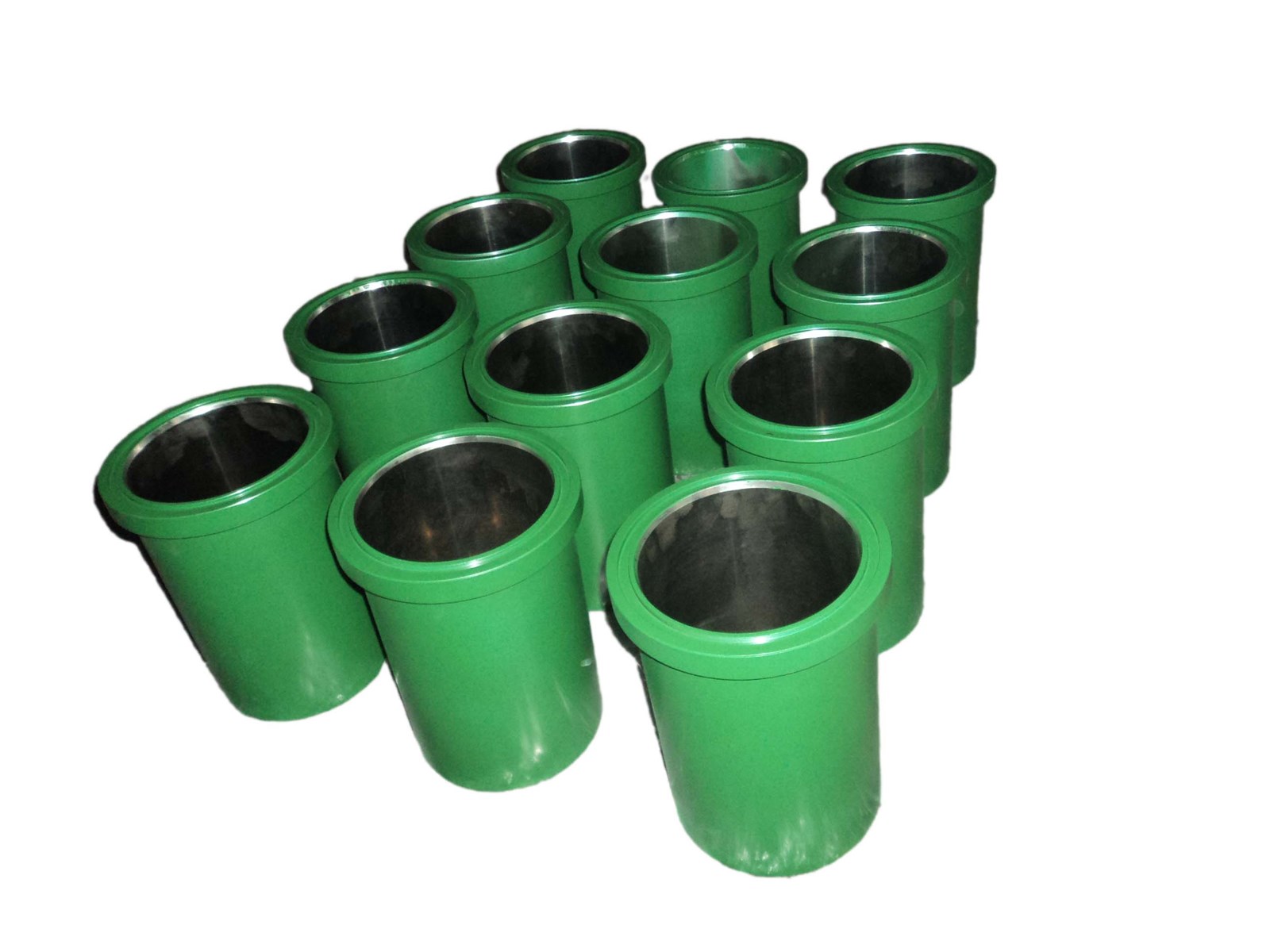

FMC 435 Bean Pump Ceramic Liners

Specifications

RPS offers High chrome liner, Ceramic liner, Chrome plated liner and Hardened liner for all brands of mud pump.

High chrome liner is manufactured by the highest-grade materials. the outer shell is made of forging high strength carbon or alloy steel. the inner sleeve is manufactured from a proprietary high chrome content iron alloy that offers excellent resistance to wear, chrome content is not less than 27%.

Features:

Liner sleeve manufactured from high chrome iron alloy

Excellent resistance to abrasion, erosion and corrosion

Sleeve hardness up to 60~65 Rockwell C

RPS ceramic liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve

the outer hull material is manufactured from alloy steel to increase yield strength and aid in fatigue resistance. the ceramic inner sleeves are corrosion resistant and have a smoother surface finish for reduced friction and heat.

Features:

Harder wear surface than chrome iron liners

Reduce liner and piston wear

Good performance for HTHP application

Extended run times

Emsco: F-350,F-500,F-650, F-800, F-1000,FD-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600,FC-2200D-300/500, D-175,D-225,D-375, D-500,D-550,DA-500,DB-500,D-700,DA-70,DB-700,DC-700,DA-850,DB-850,DC-850,D-1000,DB-1000,DC-1000,D-1000-A,D-1350,D-1650
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,JWS-165-L, JWS-340, JWS-400,C-250,C-350,K-380,K-500-A,G-700,K-700,N-1000,N-1300,N-1600
Oilwell: 350-PT,A-650P-T,A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT,HD-1400-PT,HD-1700-PT

Ideco:  T-500, T-800, T-1000, T-1300, T-1600,MM-450,MM-500-F,MM-600-A,MM-700-F,MM-1000
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,TGE,TGF,TGH,PAH-275
 Wirth  : TPK1000, TPK1600, TPK 2000
Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
Weathford /Ellis Williams:MP-5,MP-8,MP-10,MP-13,MP-16, E-447, E-2200, W446, W440
Drillmec: 7TS-600,8T-800,9T1000,10T-1300, 12T1600,14T-2200,10D2C, 8D1S
Upetrom: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 350-D,350-GD,500-DC,700-HDL | 1000-HDL
Lewco/Ewco:W-250-C,WH440,W446,W600,WH600,WH770,W1100,WH1312,W1612,W1712,W2000,W2214,W2215

Brewster: B-1000-T,B-1100-T,B-1300-T,B-1600-T

Soilmec: 7T500,7T508,8T650

GASO/Wheatly:1550,1560,1563,1654,1742,1753,1874,1849,1860,2652



Kerr: KA-3500PT, KT-3350PT, KT-3400PT, KM-3300PT, KM-3250PT, KZ-3150PT, Q-5450PT

Myers-Aplex: SC-65, SC-65L, SC-115L, SC-170L

FMC: FMC 420, FMC 435, FMC W1122BCD, 0618, 1432

Ellis Williams: W40, W446

Weatherford: 2100HDD, 2165HDD 2350HDD

Gardner Denver: the, TEE

these spare parts meet or exceed OEM specifications. Look forward to your inquiry.
