Explosion-Proof Nylon Cable Gland IP66 Exe

Supply Ability:	100,000 Piece(s) per Month
Shipping:	By sea,By air,By express
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export packing

Quick Details

Material: Nylon
Size: M,PG,G,NPT
Protection Level: IP66
Brand Name: Sanhui

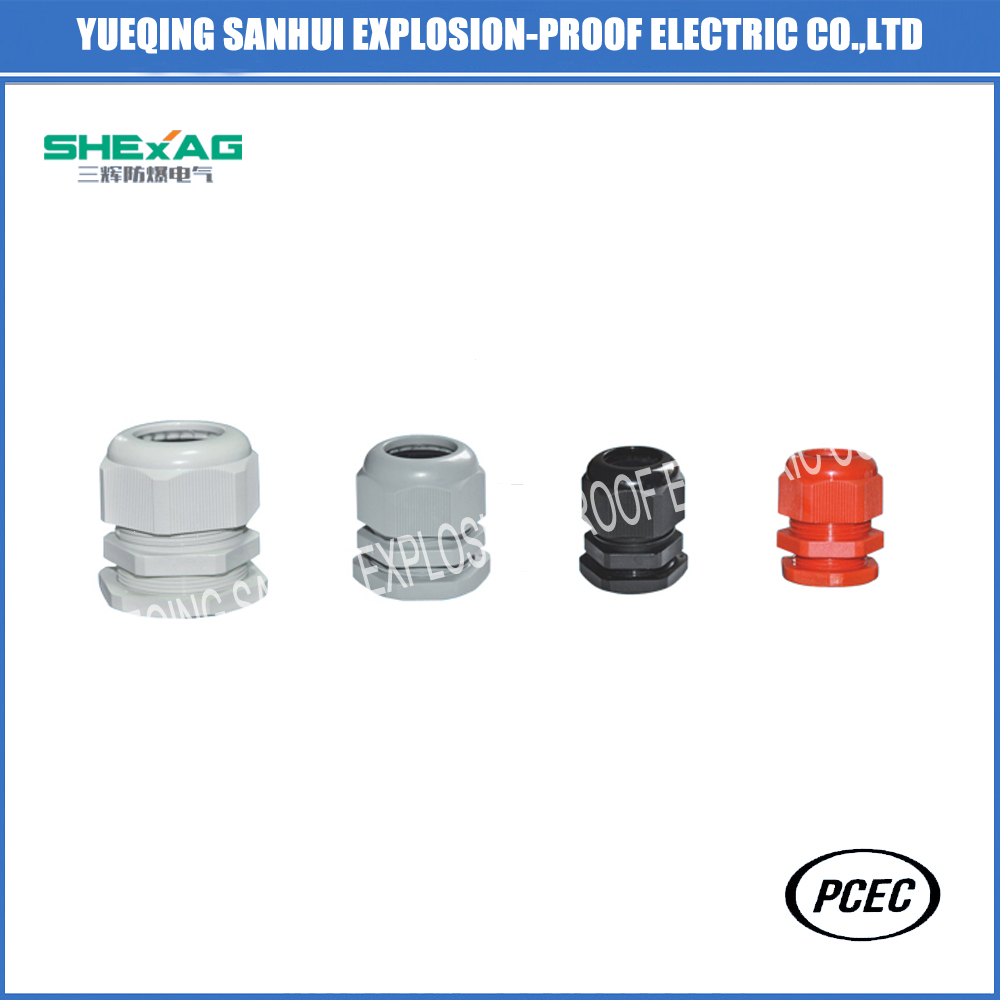

Color: Black/White
Model Number: SHBDM-11-1
Seal: NBR
Ex-mark: Exe II Gb
Thread: M,G,NPT,PG
Customization: Accepted

Specifications

Product Features

It is made of engineering plastics,with a strong anti-corrosion and waterproof function,which is used for cable entry,and suitable for increased safety enclosure.

Outline dimension

Specifications	A AG	Cable range (mm)	Thread Length B(mm)	C (mm)	Ex-mark	Protection Level
SHBDM-11M16	M16*1.5	5-10	8	35	Exe	IP66
SHBDM-11M20	M20*1.5	6-12	11	40
SHBDM-11M25	M25*1.5	10-14	11	40
SHBDM11-M32	M32*1.5	13-19	11	43
SHBDM-11M40	M40*1.5	17-26	15	59
SHBDM-11M50	M50*1.5	24-36	15	66
SHBDM-11M63	M63*1.5	37-44	18	68
