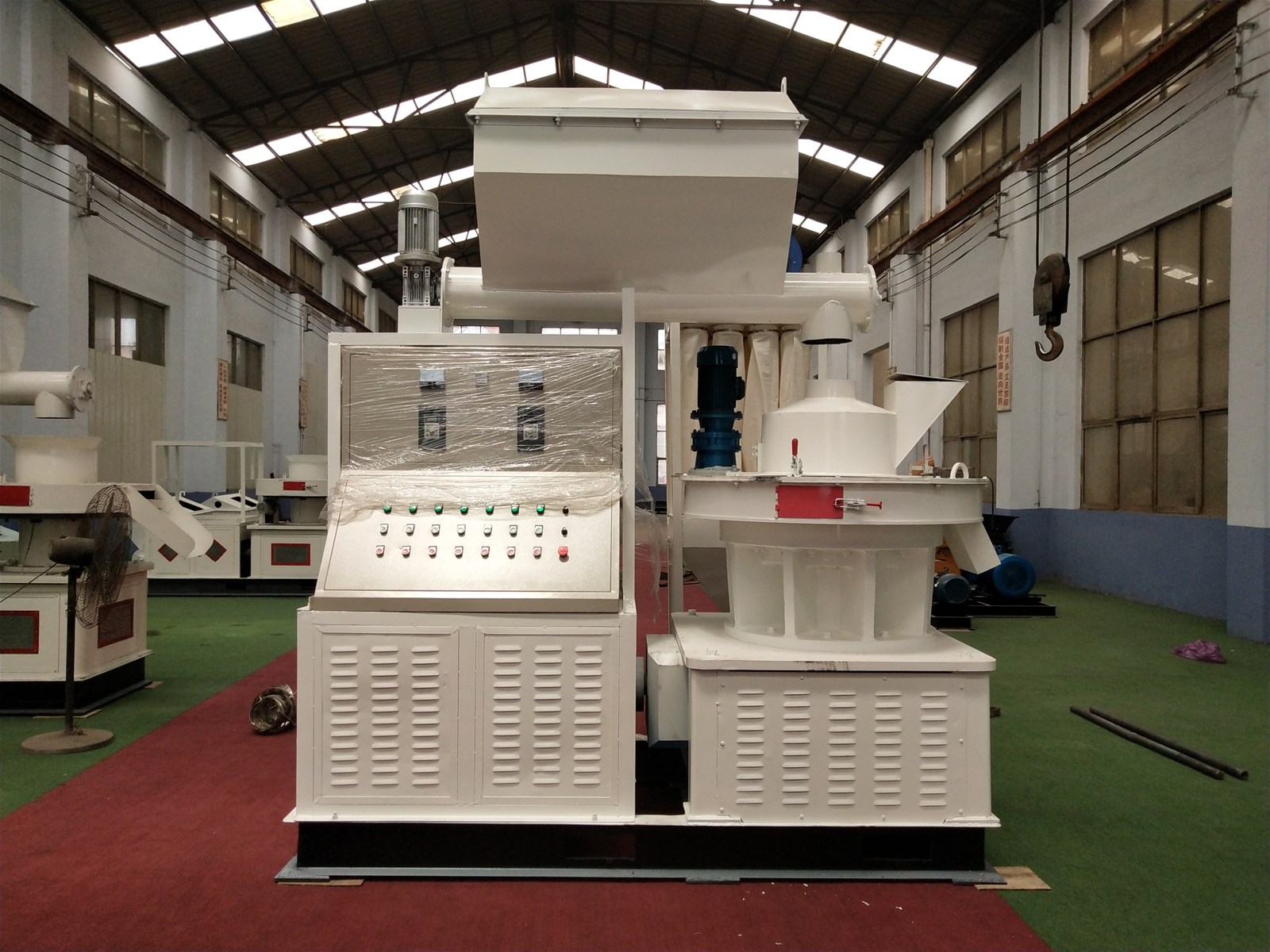

New Design Sawdust Pellet Production Line, 8mm Wood Pellet Making Machine

Supply Ability: 20 Set(s) per Month
Shipping: by sea or by air
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Henan in China
Packaging Details: container

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: one year
  • Certification: CE certificate
  • Brand Name: no brand
  • Condition: New
  • Weight: 4t
  • Dimension(L*W*H): 2600mm*1300mm*2500mm
  • Power(W): 90KW
  • Voltage: 380V/440V Or customed, 380v/440V/220V/415V
  • Model Number: HS-3
  • Product Model: wood pellet making machine
  • Model Number: HS-3
  • Power: 90KW
  • Capacity: 1.2-1.5t/h
  • Type: Ring die (vertical located)
  • Moisture: <12%
  • Pellet(diameter): 6mm,8mm,10mm

Specifications

I. Wood pellet making machine:
1. Wood pellet making machine is an automation equipment,wiith automatic grease -supply device,which can save a lot maintenance time.
2. Wood pellet making machine can forming with moisture less than 8%.
3.with high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.
4.Widely scope:All kinds of biomass raw material,industrial waste It can convert biomass raw material and solid waste into energy fuel with high density.

II.Working principle and process detail:
1.Material come from belt conveyor and then into the storage,screw conveyor feed material automaticllly to the pellet forming chamber
the forming chamber,two gear and mold help to form and press pellet,Gear rotate to press pellet come out surround.
3.Automatic cutting machine arround the mold,which can cut pellet automaticly,it can also adjust the length of pellet.
4.during the process,the oil supply device can lubricate the gear and mold.

III. Raw material required:
1.All kinds of biomass material,or farm waste,such as cotton stalk,corn straw,wheat straw,sawdust,peanut shell,rice husk,animal manure.
2.Moisture of material should <12%,material size should <6-10mm

IV. Pellet features
1.Pellet is new-style energy which is renewable, environmental protection,it is also clean and low cost.
2.Pellet (biomass pellet,wood pellet) is widely usedin heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal,also being used as industial fuel.
3.High density from 1-1.6g/cm3,easy to store and transportation,Calorific value can be 3500-5500Kilocalorie.
4.Biofuel can instead of coal for biomass power generation.

V. Complete wood pellet making machine
1.  Crushing process:
Wood crusher which can crushed the raw material into sawdust shape,under 6mm,which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches,nutshell,wood shavings,wood waste board,leaves,palm fiber,etc.
2.  Dring process
Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.the dryer use hot air accompany with material and evaporated rapidly.
3.Wood pellet maker:
Wood pellet making machine can convert the biomass material into pellet,the length can be customed.
4.Cooling process
You can use a cooling fan or cool it by nature about half or one hour,or cooled pellet by cooler machine.
5.Packing and bagger:
after cooling the semi-automatic quantative packing machine can pack the pellet into bag with quantative weight.
New design sawdust pellet production line 8mm wood pellet making machine
New design sawdust pellet production line 8mm wood pellet making machine
