Bottom Outlet Valves, Tank Botttom Feeding Valve

Supply Ability: 200 Set(s) per Month
Shipping: by sea
Payment Terms: L/C, T/T
Export Markets: North America, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin: Henan in China
Packaging Details: wooden box

Quick Details

  • Brand Name: FREE-VALVE
  • Temperature of Media: Medium Temperature
  • Material: Casting
  • Pressure: Medium Pressure
  • Standard or Nonstandard: Standard
  • Model Number: FRFb645Y
  • Port Size: DN50~DN 350
  • Media: Base
  • Power: Pneumatic
  • Structure: Shutoff
  • color: blue,gray,material color
  • parice terms: FOB,FCA,CFR,CIF

Specifications

FREE-Valve's Pneumatic Bottom Outlet Valvess are designed for the convenient and fast discharging the material or samples from the bottom of the reactor,drain or feed vessel.the valve can be welded or installed on the vessel through the flange at the bottom of the valve, tank bottom angle valves are most commonly installed on feeding of vessels or dead space free draining and pipelines.
Bottom Outlet Valvestank botttom feeding valve
Features
1.this Range of manual control tank bottom angle valve is manufactured in integrated structure.

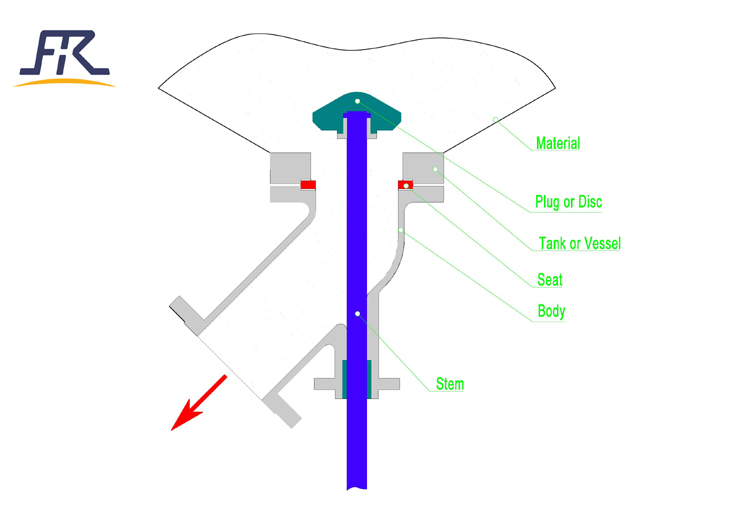

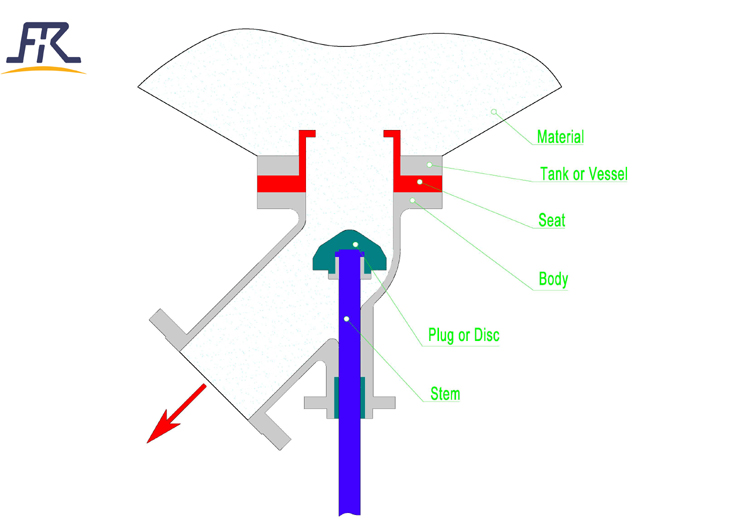

2. Structures with disc opening into the tank and disc opening into the valve.
3. Available with 45,50,90 degree outlet angle in the body.
4. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.
5.the protection plate makes for the outstanding erosion resistance and corrosion resistance of the valve body.
6.the sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. the auxiliary line sealing guarantee the reliability of the sealing performance.
7.Easy to realize the remote control or the local control with solenoid valve.

Technical Parameters
Flange connectionASME B16.5,GB/T9113
Design standardASME B16.34
Pressure RangeClass150~Class300
Size RangeDN50~DN 350, NPS2 ~NPS14
Materialcarbon steel, stainless steel
Connection typeFlange
Working Temperature425
Operating TypePneumatic, manual, electric
Sealing surface materialAlloy
Pressure testGB/T13927, API598

Applications
FREE-Valve's Pneumatic Bottom Outlet Valves are widely used in the petrochemical industry,alumina industry,steel industry,polymer,mining industry,the pharmaceutical and fine chemicals, and mineral processing industries.
