>Products Catalog > Hybrid Stepping Motor > 2.5N. m 4.0A 1.2 Step Angle Hybrid Stepping Motor 34HT7040

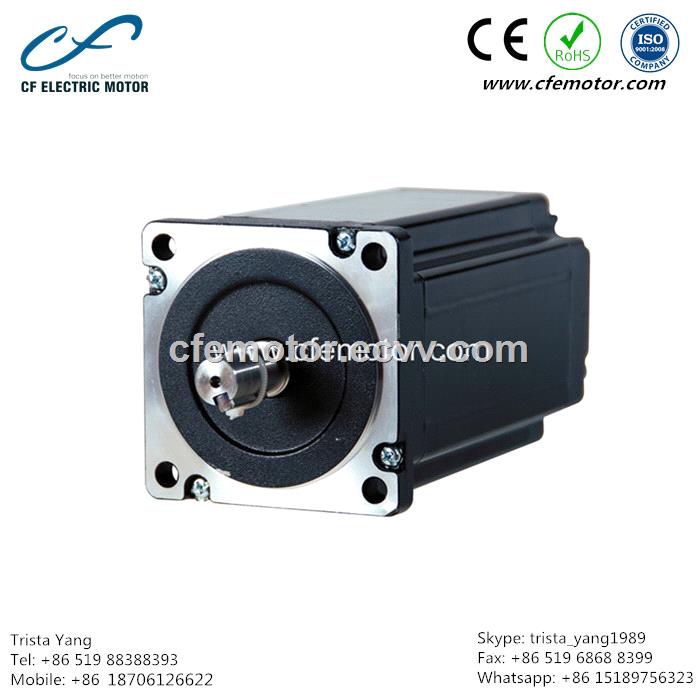

2.5N. m 4.0A 1.2 Step Angle Hybrid Stepping Motor 34HT7040
| Supply Ability: | 30,000 Piece(s) per Month |
|---|---|
| Shipping: | 1-35 days according to quantity, from Shanghai port, China, by Vessel, Air, Express |
| Payment Terms: | L/C, T/T, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Export standard carton or wooden package |
Quick Details
- Holding Torque: 250N.cm
- Step Angle(degrees): 1.2 degree
- Certification: CE,ISO,ROHS
- Type: Hybrid
- Brand Name: THANK
- Current / Phase: 4A
- Model Number: 34HT7040
- Sample: Available
- Delivery: Vessel, Express, Air
- Warranty: 1 year
- Payment method: T/T,L/C, Paypal
Specifications
Hybrid Stepping Motor
General Specification:
Step Angle: 1.2 degree/ full step
Step Angle Accuracy: +/-5% ( fUll step, no load)
Resistance Accuracy: +/-10%
Inductance Accuracy: +/-20%
Temperature Rise: 80 Max(rated current, 2 phase on)
Ambient Tenperature Range: -20~+50
Insulation Resistance: 100M Min. 500VDC
Dielectric Strength: 500VAC 50Hz 1mA 1Min
Insulation Class: B class
Electric Specification:
Model
L Motor
Length (mm)Holding
Torque () min.Rated Current
(A)Phase Resistance
()Phase Inductance
(mH)Rotor
Inertia (kg.Cm2)Lead Wire
Detent
Torque () Max.Motor
Weight (kg)34HT7040
70
250
4.0
0.7
9.3
1.1
3
12
2.1 34HT8040
80
300
4.0
0.9
12
1.23
3
15
2.3 34HT10040
100
500
4.0
1.3
16.2
2.7
3
20
3.3 34HT11840
118
600
4.0
1.6
16.5
3.3
3
30
3.7 34HT13040
130
750
4.0
1.95
17
4.0
3
35
4.0 34HT15040
150
900
4.0
2.35
19
5.0
3
45
5.5
Shown in the table is the representative product. It can be customized according to the requirements of users.
