Home >Products Catalog > Hybrid Stepping Motor > 3N. M 3 Lead Wire 1.2/0.6 Degree Step Angle 34HT8040 Hybrid Stepping Stepper Motor

3N. M 3 Lead Wire 1.2/0.6 Degree Step Angle 34HT8040 Hybrid Stepping Stepper Motor

Supply Ability:	300,000 Piece(s) per Quarter
Shipping:	vessel, air, express, train
Payment Terms:	L/C, T/T, Paypal

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	export standard package

Quick Details

Holding Torque: 300N.cm
Step Angle(degrees): 1.2/0.6 degree
Certification: CE,ISO,ROHS
Type: Hybrid
Brand Name: THANK
Current / Phase: 4A/3 PHASE
Model Number: 34HT8040
warranty: 1 year
Sample: available charged
Delivery: Approx 3-30 days according to quantity and stock have or not
Payment term: T/T, L/C, Paypal

Specifications

HYBRID STEPPING MOTOR 34HT SERIES

Step Angle ---------------------------------------------------1.2 (full step)

Step Angle Accuracy ---------------------------5%(full step, no load)

Resistance Accuracy -------------------------------------------------10%

Inductance Accuracy -------------------------------------------------20%

Temperature Rise -----------80 Max(rated current, 2 phases on)

Ambient Temperature Range -------------------------- -20+50

Insulation Resistance --------------------------- 100M Min. 500VDC

Dielectric Strength ------------------------ 500VAC 50Hz 1mA 1 Minute

Insulation Class --------------------------------------------------------- B class

Electrical Specifications:

Model	L Motor Length (mm)	Holding Torque () Min.	Rated Current (A)	Phase Resistance ()	Phase Inductance (mH)	Rotor Inertia (k)	Lead Wire	Detent Torque () Max.	Motor Weight (kg)
34HT7040	70	250	4.0	0.7	9.3	1.1	3	12	2.1
34HT8040	80	300	4.0	0.9	12	1.23	3	15	2.3
34HT10040	100	500	4.0	1.3	16.2	2.7	3	20	3.3
34HT11840	118	600	4.0	1.60	16.5	3.3	3	30	3.7
34HT13040	130	750	4.0	1.95	17	4.0	3	35	4.0
34HT15040	150	900	4.0	2.35	19	5.0	3	45	5.5

*Shown in the Table is the representative product. It can be customized according to the Requirements of users.

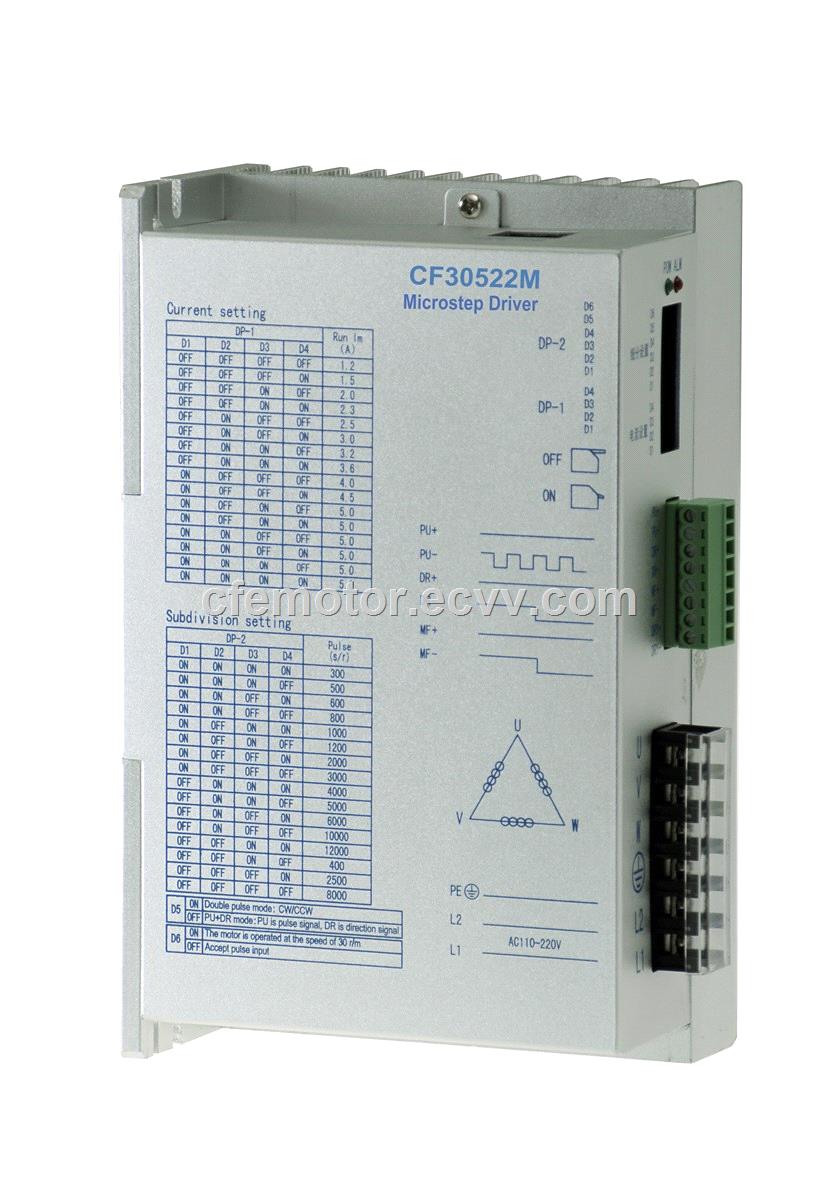

We have the related stepper motor driver which can be used to control the motor. CF3065D or CF30522M are suggested.
