Henan Quanshun Flow Control Science & Technology Co., Ltd.
China Manufacturer with main products: Industrial Valve, Segment Ball Valve, Slurry Valve, Tank Bottom Angle Valve, Bi-Directional Sealing Valve, Large Size Valve, Metal Seated... |

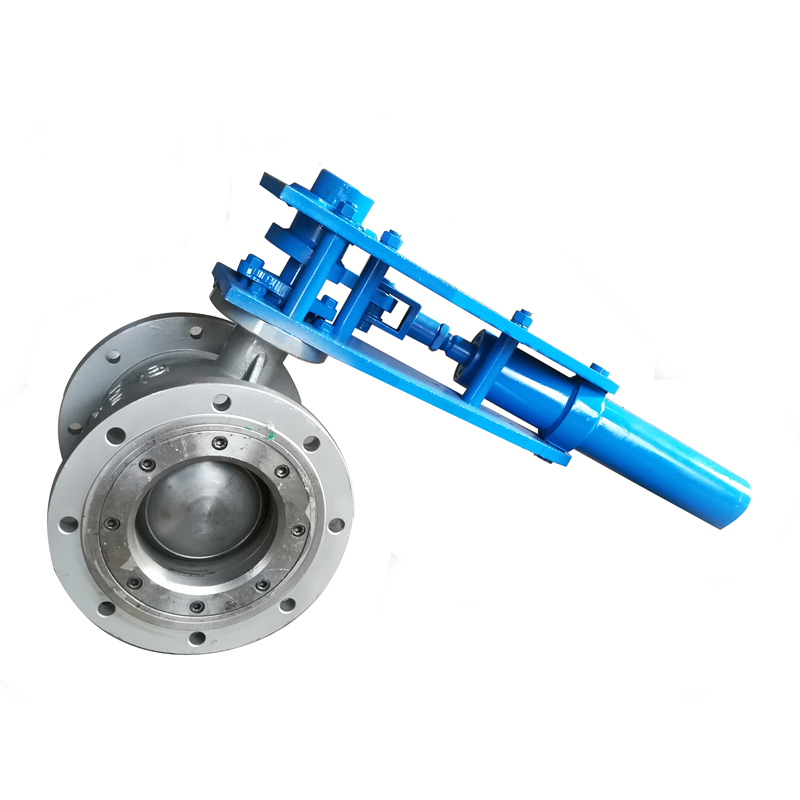

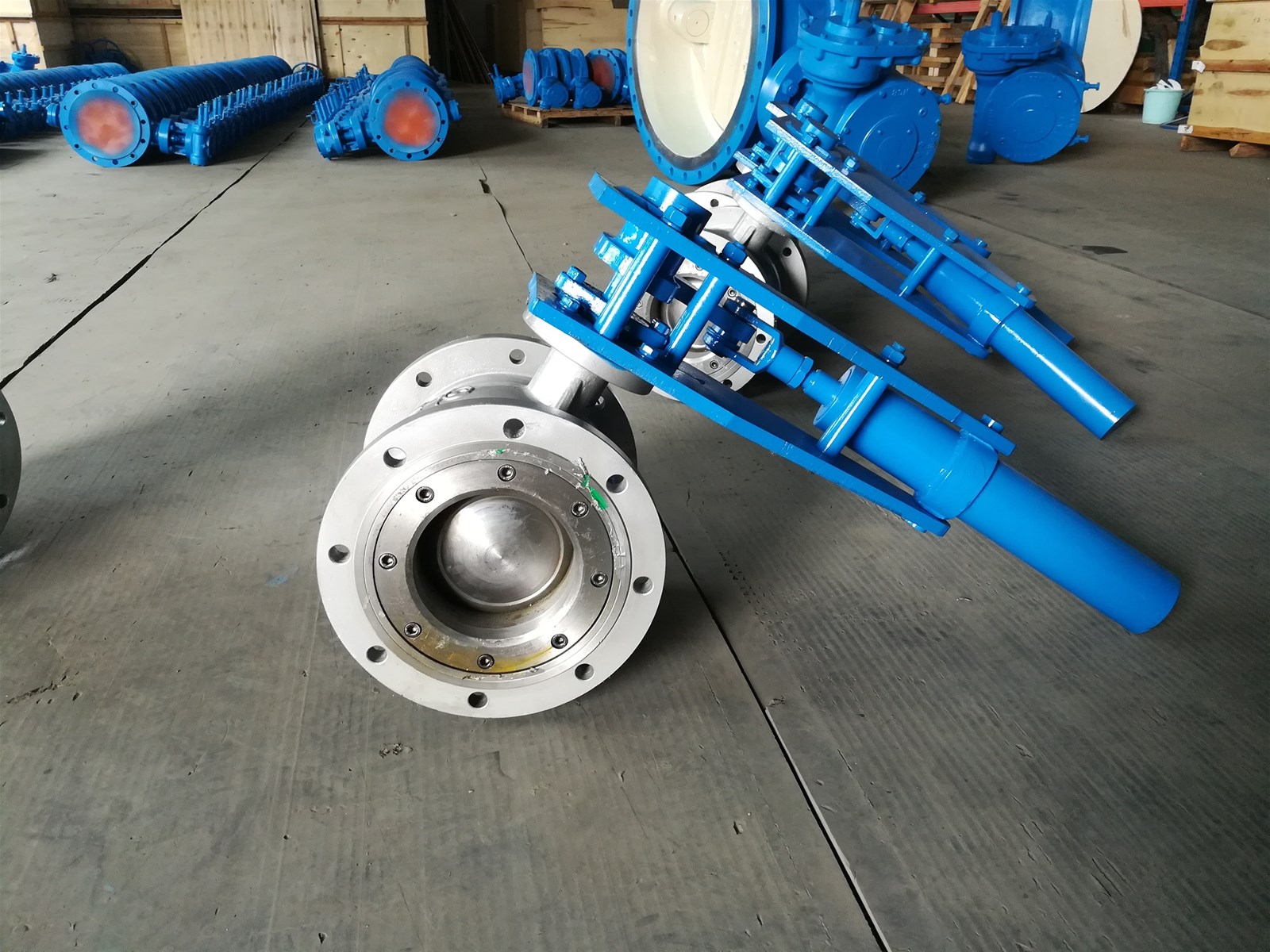

Hydraulic Operated Eccentric Hemspherical Valve
| Supply Ability: | 500 Set(s) per Month |
|---|---|
| Shipping: | By Sea |
| Payment Terms: | L/C, D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden Box |
Quick Details
- Brand Name: QUANSHUN
- Temperature of Media: Medium Temperature
- Material: Casting
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Model Number: BQ740Y-6C
- Port Size: DN200
- Media: Water
- Power: Hydraulic
- Structure: Ball
Specifications
Hydraulic Operated Eccentric Hemspherical Valve is a high performance ball valve we have developed with advanced technology. It is designed to C type ball valve on the base of O type ball valve,which solves the difficulties of? Conveyance of "solid-liquid" and "solid-gas" two phase medium.
BENEFITS
1.with straight through type valve body,this valve can keep the fluid flow by linear when the valve fully opened,so it reduced less energy loss compared with other valves.
2.Easy to operate: As the valve disc moved away from valve seat without any contact,so it has smaller starting torque compared with O type ball valve and easy to operate.
3.Because of double eccentric structure design,the segment ball valve is perfectly sealed and can be closed tightly.
4.When the valve is closed,the wedding force is able to remove the foreign materials,therefore it has anti-scaling performance.
5. Welding type connection with pipe line,it avoid leakage from the flange.
6. the weight is light compare to O type ball valve,so it reduced the cost of maintenance and man power.
7.both top entry and side entry can be manufactured.
SPECIFICATION:
1.Size: DN200
2 Pressure:PN6
3.Material:WCB
4.Sealing material:Hard Alloy
5.Connection method:Welding type
6.Driving method: Hydraulic Operated
7.Design standard:GB/T 26146-2010
APPLICATION:
Municipal Industry
Steel Industry
Soda Industry
Water Industry
