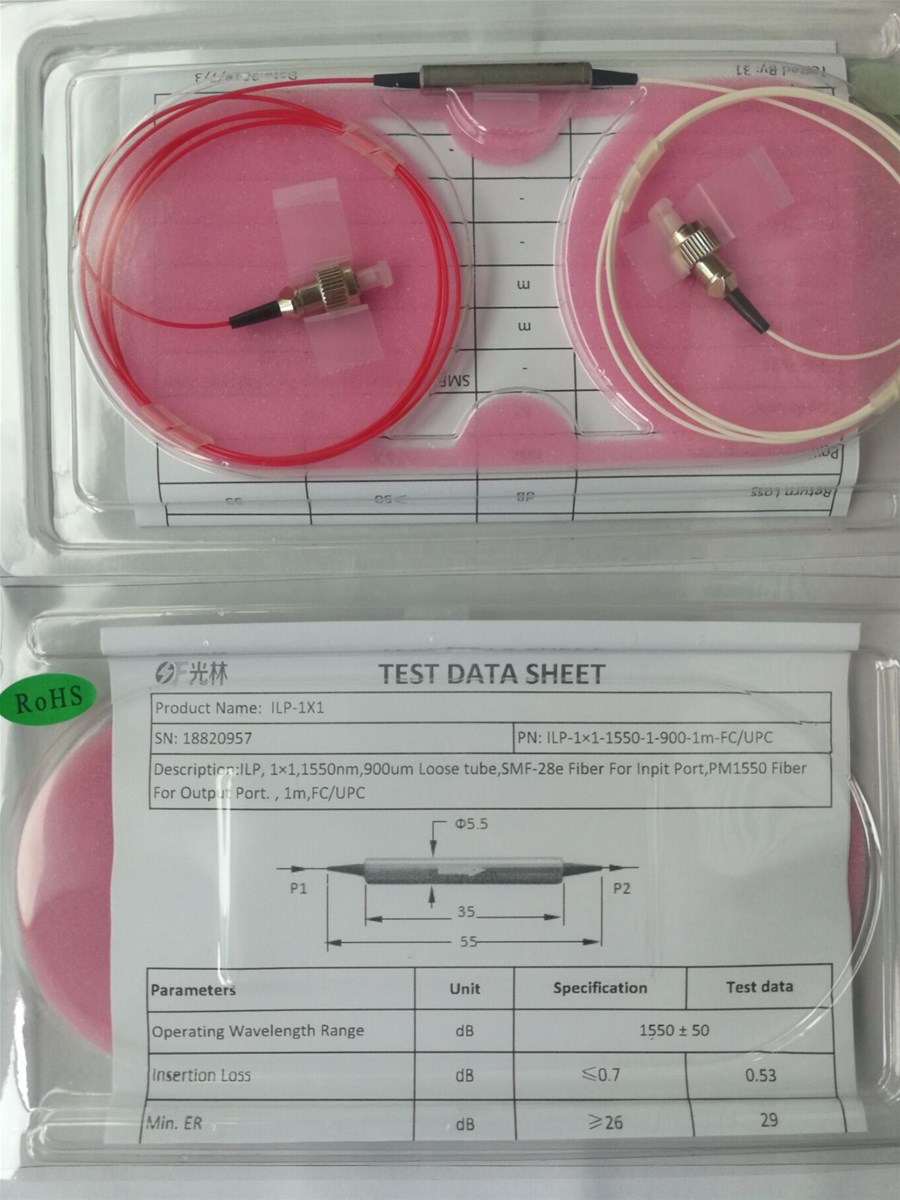

1310/1550 Fiber Optic in-Line Polarizer
| Supply Ability: | 1,000 Piece(s) per Day |
|---|---|
| Shipping: | DHL |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | stand package |
Quick Details
- Brand Name: OF
- Wavelength: 1550nm
- Data Rate: 10G
- warranty: 1year
- Connector: FC/APC
- Model Number: ILP-1550-FA
- In-line Polarizer: fiber Polarizer
Specifications
in-line Polarizer |
Product Features |
|
Product Applications |
|
Specifications | ||
Parameter |
Unit |
Value |
Center Wavelength |
nm |
1310, 1480 or 1550 |
Operating Wavelength Range |
nm |
20 or 50 |
Typ. Insertion Loss at 23C |
dB |
0.3 |
Max. Insertion Loss at 23C |
dB |
0.5 |
Min. Return loss(Input/output) |
dB |
50/50 |
Typ. Extinction ratio at 23C |
dB |
30 |
Min. Extinction ratio at 23C |
dB |
28 |
Min.PDL(Only for SMF on all ports)@23C |
dB |
25 |
Max. Optical Power (CW) |
mW |
500(Based on proper polarization alignment) |
Max. Tensile Load |
N |
5 |
Fiber Type(Input-output) |
- |
Option1:PMF-PMF Option2:SMF-28e-PMF Option3: SMF-28e - SMF-28e |
Package Dimensions |
mm |
5.5*55 |
Operating Temperature |
C |
-5 to +70 |
Storage Temperature |
C |
-40 to +85 |
*above Specifications are for devices without connectors
*for devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower
*the PM fiber and the connector key are Aligned to the slow axis
Ordering Information | |||||
ILP |
Wavelength |
Pigtail Type |
Fiber Typeon Port 1 & 2 |
Fiber Length |
Connector |
1x1 |
1310nm 1480nm 1550nm Specify |
250um bare fiber 900um loose tube
|
PMFPMF SMFPMF SMFSMF
|
0.5m 1m 1.5m 2m |
N=None FC/APC SC/UPC LC/UPC |
