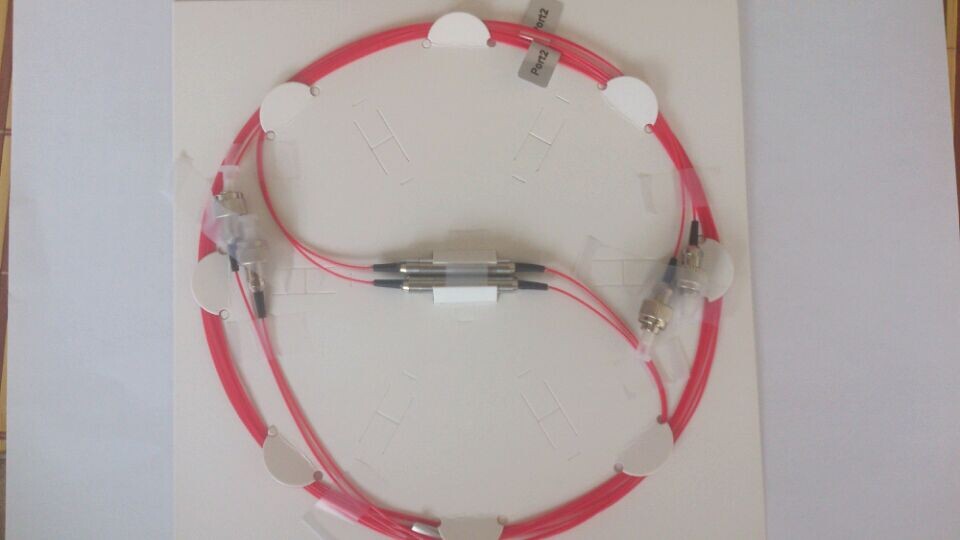

3 Ports Polarization Maintaining Optical Circulator PM CIR
| Supply Ability: | 1,000 Piece(s) per Day |
|---|---|
| Shipping: | DHL |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | stand package |
Quick Details
- Brand Name: OF
- Wavelength: 1550nm
- Data Rate: 10G
- warranty: 1year
- Connector: FC/APC
- Model Number: PBC
- 1550: 1064
Specifications
Polarization Maintaining Circulator (PMCIR 1310/1550 1x2) |
Product Features |
|
Product Applications |
|
Specifications | |||
Parameter |
Unit |
Value | |
Stage |
|
Single Stage |
Dual Stage |
Center Wavelength (c) |
nm |
1310 or 1550 | |
OperatingWavelengthRange |
nm |
20 |
30 |
Typ. Isolation |
dB |
30 |
46 |
Isolation At Tr* |
dB |
20 |
40 |
Typ. Insertion Loss at Tr* |
dB |
0.6 |
0.7 |
Insertion Loss at to* |
dB |
0.8 |
0.9 |
Return Loss (Input/Output) |
dB |
50 | |
Cross talk |
dB |
50 | |
Typ. Extinction Ratio |
dB |
24 |
25 |
Extinction Ratio |
dB |
20 |
22 |
Power Handling(CW) |
mW |
500 | |
Tensile Load |
N |
5 | |
Fiber Type |
PM 1310, 1550 Panda Fiber | ||
Operating Temperature |
-5 to +70 | ||
Storage Temperature |
-40 to +85 | ||
Remark:
* Tr=Room temperature, to=Operating temperature.
* above specifications are for device without connector.
* for devices with connectors, 0.3dB higher for IL, 5dB lower for RL and 2dB Lower for ER
* the PM fiber and the connector key are aligned to the slow axis.(Default if Customer no special request)
Ordering Information | |||||
PMCIR |
Wavelength |
Stage |
Pigtail Type |
Fiber Length |
Connector |
1x2 |
1310nm 1550nm Specify |
Single Stage Dual Stage |
250um bare Fiber 900um Loose tube Specify |
0.5m 1m 1.5m 2m Specify |
N=None FC/APC SC/UPC LC/UPC Specify |
