Good Quality China Floor Deck Roll Former Manufacturer with CE

Specifications

the following example is for you reference.

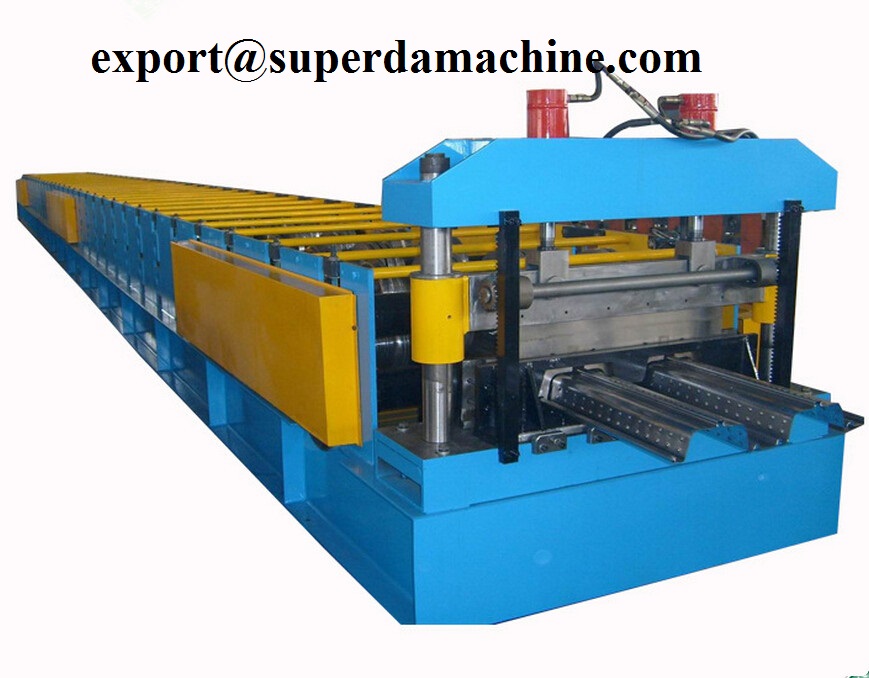

Floor deck roll forming machine photo


Good quality China floor deck roll former manufacturer with CE

1.Brief Introduction:

the entire forming line imported PLC control, LCD touch screen, Man-machine interface. People interact with the PLC. Operator setting the Program to run automatically (programmable control) and control process Monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault Indication. Workpiece length digital setting, adjustable length can be Adjustable as well. Real-time monitoring of equipment operating status and Fault indication.

2.Techincal parameters:

Hydraulic press,Hydraulic hole punching System;
Hydraulic Function,Hydraulic punch Breach  (Mould 1 set);
Hydraulic pressure,16MPa;
Hydraulic station,18.5KW;
Roller station,20 stations and add Rub-roll to make sure the surface profile no scratches;
Side Panel,T18mm A3 steel Heavy duty;
Rolling speeding,2-8 m/min;
Roller material,GCr15 overall quenching Hardness HRC56-62 ;
Motor power,7.5KW;
Main Roller,Dia75mm;
Equipment base,45 # H type using welded Steel plate;
Transmission,chain drive;
Security,emergency stop buttons with;
PLC control system,Siemens;
Inverter,Taiwan Shilin;
Encoder,Omron;
Touch screen, Siemens;

3.Performance features:
2 in 1 Uncoiler StraighteningServo feederHydraulic press breach device   Guide device roll forming machine hydraulic Punch shear device (including knife) finished product rack
