Rotating Electrode Rod Vacuum Induction Melting Inert Gas Atomization Equipment for Titanium Powders

Supply Ability: 30 Set(s) per Year
Shipping: 150days/FOB China
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hunan in China
Packaging Details: Standard sea-worthy package

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1year
  • Brand Name: Hanhe
  • Usage: Melting Furnace
  • Condition: New
  • Certification: ISO9001
  • Weight: 10T
  • Dimension(L*W*H): 4500*4500*7500
  • Power(W): 100KW
  • Voltage: 380V
  • Model Number: HH-EIGA-10
  • Type: Induction Furnace
  • Product Name: Gas atomization equipment
  • Processed material: Titanium alloy
  • Rated power: 100KW
  • Input voltage: 380V 50HZ 3Phase
  • Atomizing rate: 35%
  • Powder shape: Spherical
  • Powder particle size: Tailored
  • Protective gas: 5N Argon
  • Color: Blue or customized
  • Warranty: 12months

Specifications

Product Description
Melt the pre-made Titanium alloy rods under proper vacuum conditions. the liquid metal flows down and passes the restriction-type nozzle. High pressure air flow goes through the tight coupling nozzle and then cracks and atomizes the liquid metal into a large number of tiny liquid drops. these tiny liquid drops will solidify during flying. The mixture of powders and air will be sent to the cyclone separator via the convener pipe. and the rough powders and fine powders as well as atomizing gas will be separated in the separator. The metal powders will be collected in the sealed container.

Metal powder gas atomization technology is mainly used for metal powder production of high grade and high-tech requirements. Main technical indicators of inert gas atomized powders are as following: high degree of sphericity, high purity, low oxygen, rapid solidification, homogeneous micro-structure etc.

Main Features

1) Advanced & mature tight-coupling and restrictive type nozzle technology.

2) Adopting advanced world famous brand components in vacuum parts,electric parts and operation parts.

3) Patented vacuum insulation technology which can reduce vacuum time from 40min. to 10min.

4) Running in a high automatization and intellectualization, less pollution.

5) High purity, rapid solidification.


Technical Parameters
Product Name Gas atomization equipment Principle Induction melting & gas atomizing
Rated capacity 10KG Raw material Titanium alloy
Powder size 10-150um Melting temperature 2000
Protection grade IP54 Protective gas Argon

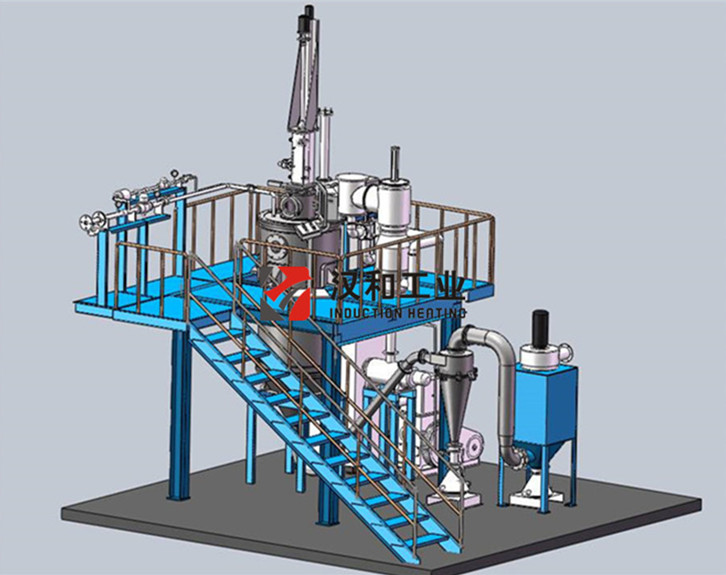

Picture for referenceRotating Electrode Rod Vacuum Induction Melting Inert Gas Atomization Equipment for Titanium Powders
