Automatic Pressure Silicone Trademark Moulding Machine

Supply Ability:	100 Set(s) per Month
Shipping:	shenzhen
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Seaworthy wooden packaging

Quick Details

Type: Heat Press Machine
Color & Page: Multicolor
Usage: Cloths Printer,Label Printer
Brand Name: JINYU
Condition: New
Type: JY-B04
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE Certification
Weight: 600kg
Dimensions(L*W*H): 1650*1700*1700MM
Gross Power: 13KW
Voltage: 380v/50hz
Automatic Grade: Automatic
Model Number: JY-B04
Warranty: 1year

Specifications

Automatic pressure silicone trademark moulding machine

the Silicone Garment Logo Embossed Machine for Producing 3D Silicone Logo On Garment, Unique circuit design, with single motor, single pump control double circuit, no impact in operation and improve the efficiency, reduce energy consumption.with 2 Working Table, Independently Control, Also Can Work At the Same Time. Intelligent PID Control output, the Difference of Setting Temperature and Actual Temperature Control In+-1, It's Economic and Efficiency.Automatic Embossing Machine

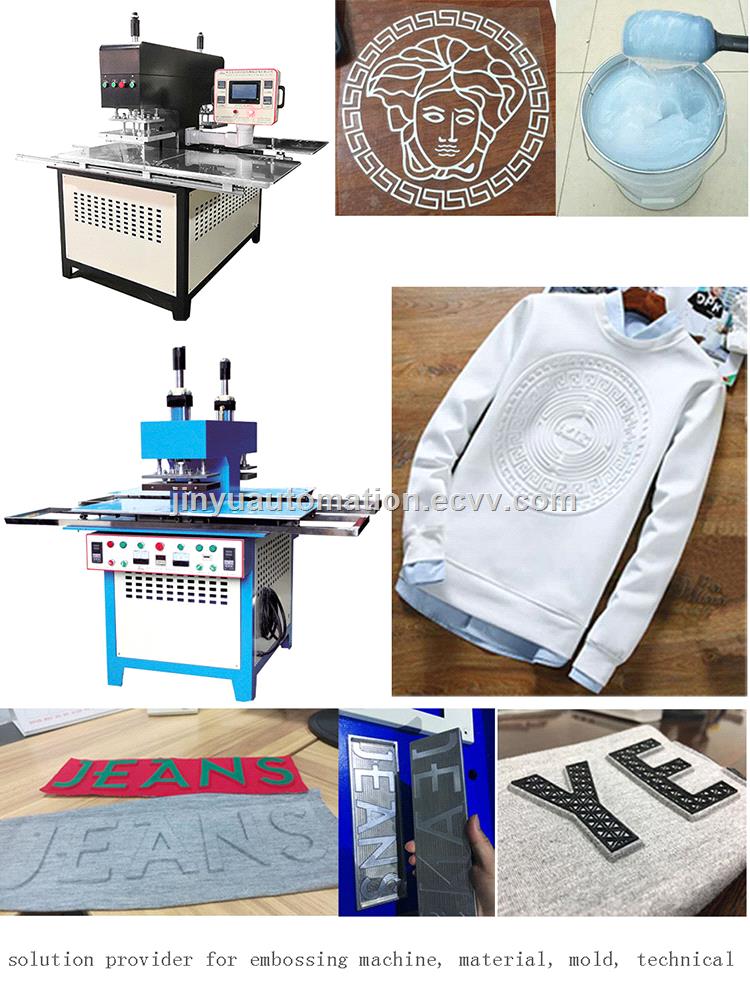

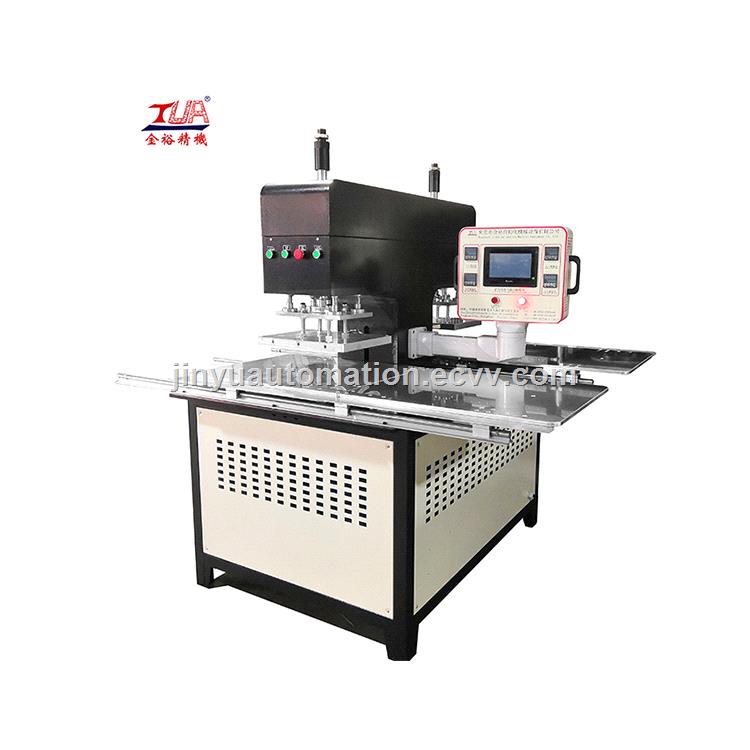

Product Picture:Automatic Embossing Machine

Automatic Pressure Silicone Trademark Moulding Machine

Specification:Automatic Embossing Machine

Type	5T
Stroke (mm)	120
Work table size (mm)	*300400**
Main cylinder diameter (mm)	80
Horse (HP)	3
Heating power (kw)	7.2
Machine size (mm)	*165017001750*
Machine weight (kg)	700

Description:Automatic Embossing Machine

1.Importing the latest digital prototype testing technology, higher thermal performance, better stability than the traditional design.

2.Heating plate used for deep hold processing, and after carburizing, nitriding completed after grinding,using the principle of heat, the high accuracy, the optimal design with average temperature,HRC50-55 hardness, wear a long time, Not easy to out of shape and it has high plane precision.

3.Using the technology of planar pressure correction, the maximum pressure (20KG) nut leveling device, the highest plane precision can reach 0.05MM.

Application:
the Silicone Garment Logo Embossed Machine is applied the embossing/debossing logo /label on all kind of fabric.
