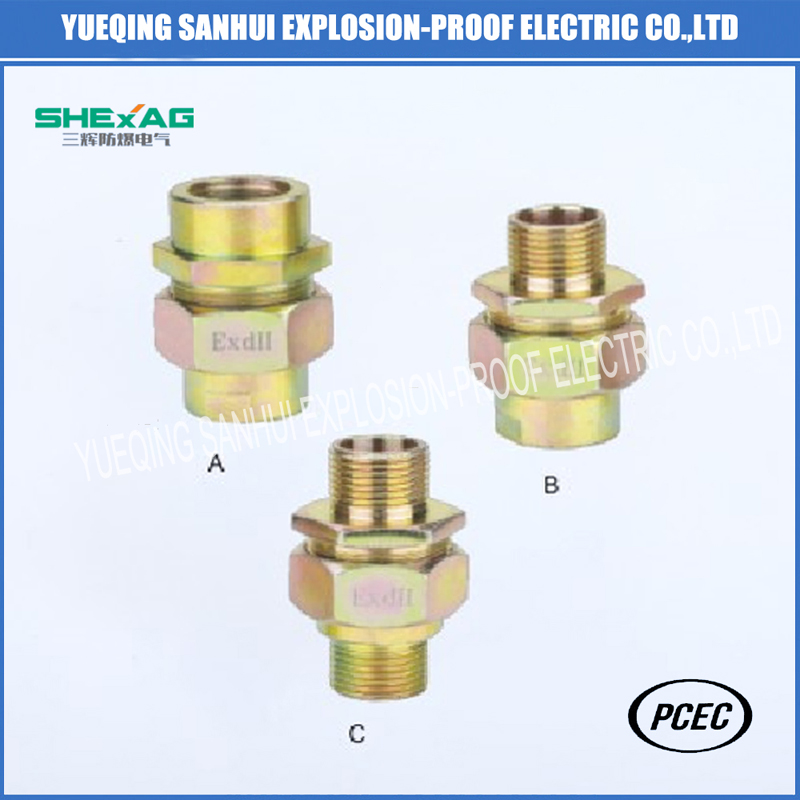

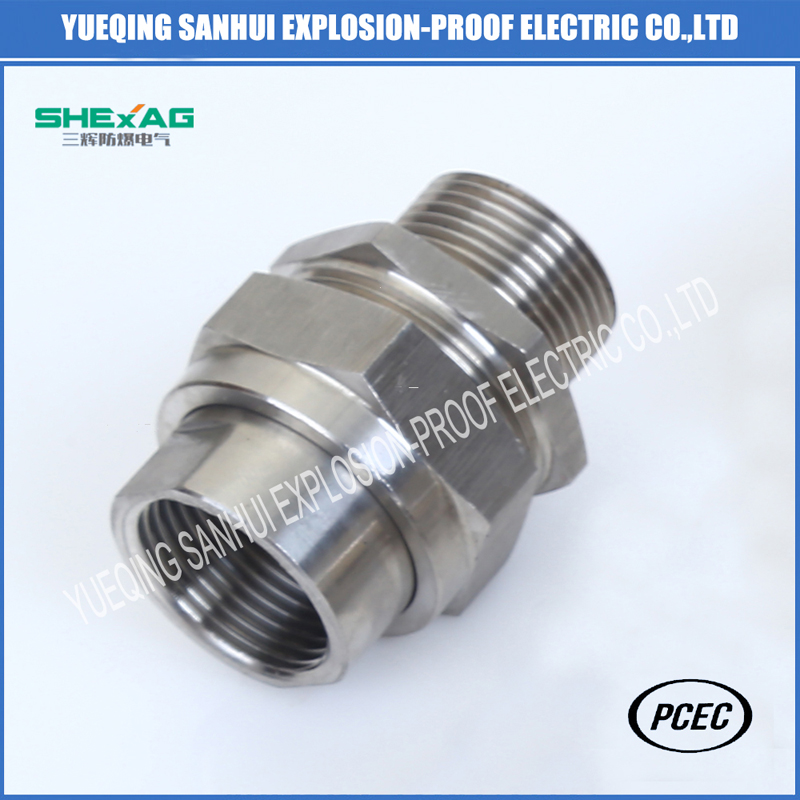

SHBDM-11 Explosion Proof Fittings, Explosion Proof Union Coupling
| Supply Ability: | 10,000 Piece(s) per Week |
|---|---|
| Shipping: | By sea,By air,and by express |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard export packing; Pack as requirement |
Quick Details
- Material: Brass
- Size: M,G,NPT
- Protection Level: IP66
- Brand Name: Sanhui
- Color: Metal color
- Model Number: SHBDM-11
- Materials: Carbon steel/Brass/Stainless steel
- Seal: Silicon rubber
- Type: Straight head
- Thread: M16-M100, G1/2-G3, NPT1/2-NPT3
- Explosion-Proof Mark: Exd Iic GB
- Fireproof Classification: V0(UL94)
- Ambient Temperature: -40 to 100,Short up to 120
- Accessories for gland: Lock Nut,Earth Tag,and Shroud
Specifications
SHBDM-11 Explosion-proof union coupling
Product Features
- Hazardous environment:division1&2,or21,22&23
- Explosive gas atmosphere:Class IIA,IIB,IIC or inflammable dust environment.
- Indoor or outdoor(IP65,IP66*).
- It is widely used in the fields of oil,chemical industry,aerospace,military and so on.
- It is made of carbon steel or stainless steel by mechanical cable clamping device.
Outline dimension
| Specifications | A AG | Cable range (mm) | Total length C(mm) | Ex-mark | Protection Level |
| SHBDM-11 G1/2 | G1/2 | 10-14 | 66 | Exd IIC GB |
IP66 |
| SHBDM-11 G3/4 | G3/4 | 11-18 | 66 | ||
| SHBDM-11 G1 | G1 | 14-26 | 82 | ||
| SHBDM-11 G1 1/4 | G1 1/4 | 18-30 | 85 | ||
| SHBDM-11 G1 1/2 | G1 1/2 | 25-37 | 85 | ||
| SHBDM-11 G2 | G2 | 29-42 | 90 | ||
| SHBDM-11 G2 1/2 | G2 1/2 | 29-56 | 90 | ||
| SHBDM-11 G3 | G3 | 41-80 | 90 |
Note: NPT thread can also be provided.
