Baoji Toptech Industrial Co., Ltd.
China Manufacturer with main products: Metal Detector, Needle Detector, Detector Metal, Check Weigher, Needle Detection Machine, X Ray Detector, Titanium, Titanium Tube |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shaanxi in China |
| Packaging Details: | Moisture-Proof Paper+Kraft Paper+Plywood Case |
Quick Details
- Grade: Gr2
- Technique: Forged
- Shape: Round
- Application: Industrial
- Brand Name: TOPTECH
- Diameter: Round: Dia. 5 ~ 200 mm
Specifications

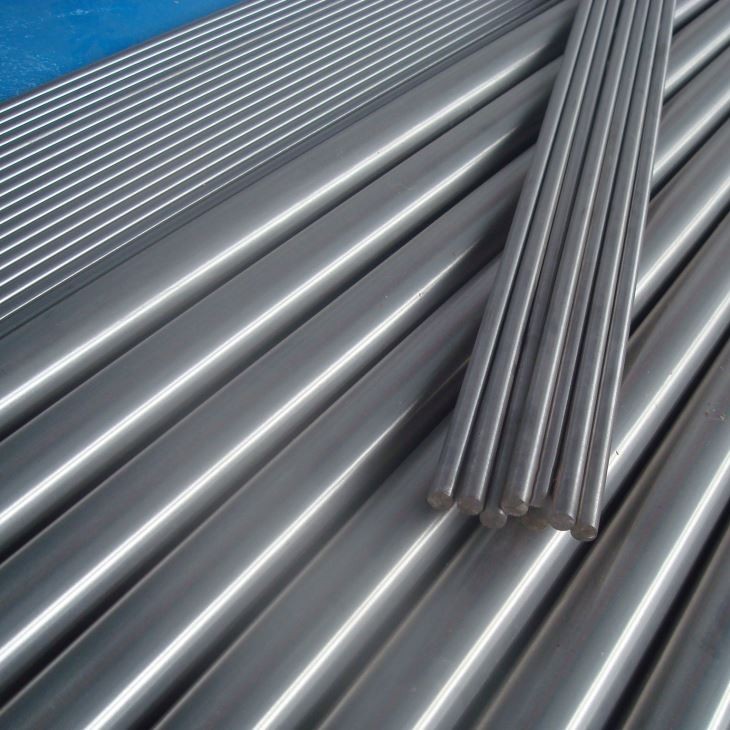

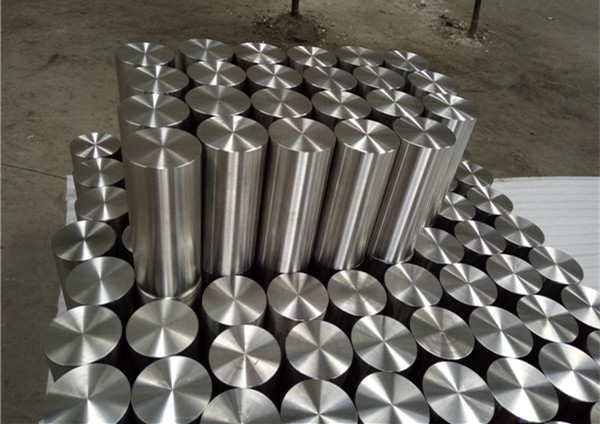

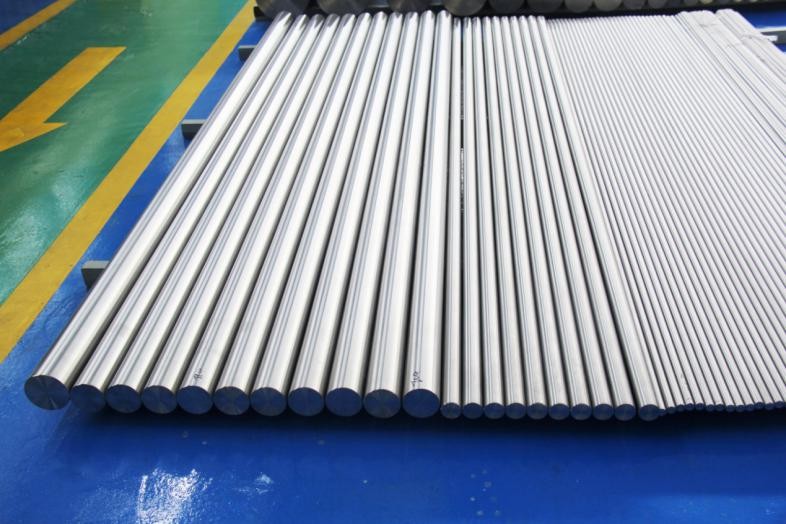

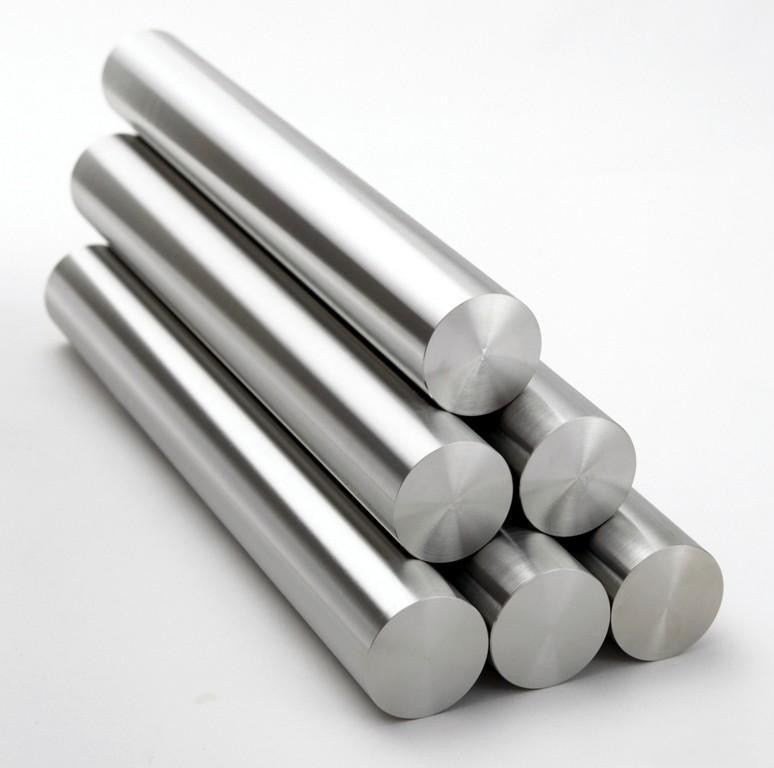

Titanium bar/ Titanium and Titanium alloy rod
Standard: ASTM, AMS, GB/T
Specifications:
Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Size: dia1.0-dia350mm (+1/-1mm)*4000mm
OD:2mm-219mm
WT:0.3mm-15.24mm
L:with in 18Meters
Standard:ASTM B337,ASTM B338,ASTM B861
Surface Treatment: polished or according to customer's requirement.
Applications:
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
Application
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.).
Chemical components of each grade
Mechanical characteristics of each grade
2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
Standard: ASTM, AMS, GB/T
Specifications:
Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Size: dia1.0-dia350mm (+1/-1mm)*4000mm
OD:2mm-219mm
WT:0.3mm-15.24mm
L:with in 18Meters
Standard:ASTM B337,ASTM B338,ASTM B861
Surface Treatment: polished or according to customer's requirement.
Applications:
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
| Product | Titanium and Titanium alloy rod |
| Size | Dia.: 5mm-300mm (0.2"-12"), , Length: 50mm-6000mm (2.0"-236") |
| Material | Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, etc. |
| Standard | ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. |
| Surface | Polished |
| Shape | Rod, Straight |
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.).
Chemical components of each grade
| Grade | Fe% | C% | N% | H% | O% | Al% | V% | Mo% | Ni% | Pd% | Ti |
| Gr1 | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | -- | -- | -- | -- | -- | BAL. |
| Gr2 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | -- | BAL. |
| Gr3 | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | -- | -- | -- | -- | -- | BAL. |
| Gr4 | 0.3 | 0.08 | 0.05 | 0.015 | 0.40 | -- | -- | -- | -- | -- | BAL |
| Gr5 | 0.25 | 0.08 | 0.03 | 0.015 | 0.02 | 5.5 - 6.75 | 3.5 - 4.5 | -- | -- | -- | BAL |
| Gr7 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | 0.12 - 0.25 | BAL. |
| Gr9 | 0.25 | 0.08 | 0.03 | 0.015 | 0.15 | 2.5 - 3.3 | 2.0 - 3.0 | -- | -- | -- | BAL. |
| Gr12 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | 0.2 - 0.4 | 0.6 - 0.9 | -- | BAL. |
| Gr23 | 0.3 | 0.08 | 0.03 | 0.015 | 0.13 | 5.5 - 6.75 | -- | -- | -- | -- | BAL |
| Grade | Tensile Strength (min) | Yield Strength 0.2% Offset | Elongation in 2 inch or 50mm % (min) | ||
| KSI | MPa | KSI | MPa | ||
| Gr.1 | 35 | 240 | 20 - 45 | 138 - 310 | 24 |
| Gr.2 | 50 | 345 | 40 - 65 | 275 - 450 | 20 |
| Gr.3 | 65 | 450 | 55 - 80 | 380 - 550 | 18 |
| Gr.4 | 80 | 550 | 70 | 483 | 15 |
| Gr.5 | 138 | 950 | 128 | 880 | 14 |
| Gr.7 | 50 | 345 | 40 | 275 | 24 |
| Gr.9 | 125 | 860 | 105 | 725 | 10 |
| Gr.12 | 70 | 483 | 50 | 345 | 18 |
| Gr.23 | 125 | 860 | 115 | 790 | 15 |
2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
