Long Distance Telescopic Portable Mobile Mining Belt Conveyor for Mine

Supply Ability: 200 Set(s) per Month
Shipping: Xiamen
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangxi in China
Packaging Details: 1 set in iron frame

Quick Details

  • Brand Name: JXWKD
  • Structure: Belt Conveyor
  • Material: Rubber
  • Type: Gravity Conveyor
  • Condition: New
  • After-sales Service Provided: Overseas third-party support available
  • Certification: ISO9001:2008
  • Power(W): 1.1 KW
  • Voltage: 380V
  • Model Number: B400
  • Load Capacity: 50 T/H
  • Material Feature: Heat Resistant
  • Color: Multi color
  • Material: Rubber
  • OEM: Yes

Specifications

Introduction of mobile belt conveyor

Belt Conveyor System is used widely in metallurgy, mine, building, transportation, light & textile, hydropower and harbors industries and departments and used to convey scattered and block materials. Conveyor can transport materials alone and multi-drop or form horizontal, oblique or vertical conveyor system with other conveyors.

Belt conveyors used to transport minerals are to be found all around the world in a large number of surface and underground mining operations. the idea of using the conveyor belt is not new, indeed, the first bell conveyors were introduced at the end of the nineteenth century; the basic principles of operation have not changed. however, over the years the capacity rating of belt systems and the length over which material can be transported have increased very considerably, together with the power inputs, the size of components and the degree of sophistication.

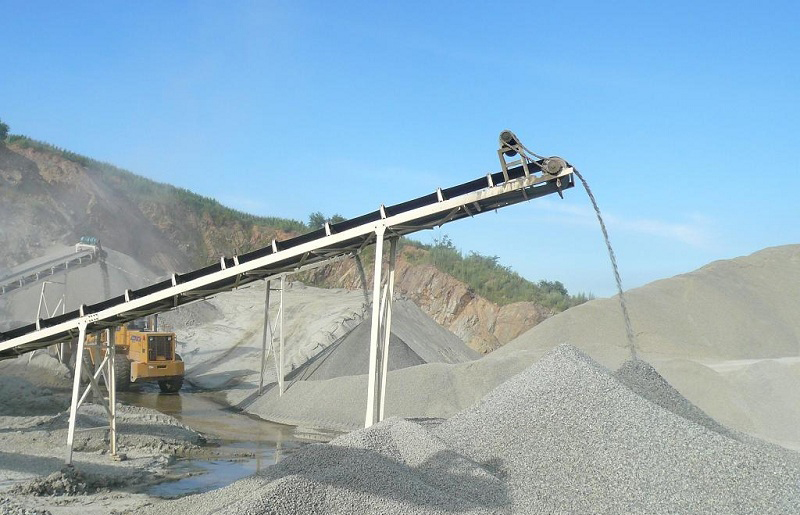

Long Distance Telescopic Portable Mobile Mining Belt Conveyor for Mine

Feature of mobile belt conveyor

1.An underground mine is more economically served by a belt conveyor than railcars or trucks when the daily mine production exceeds 5000 tons.
2.as a rule, belt conveyor operation is more economical than truck haulage if the conveying distance exceeds I km
3.A further attempt to provide guidelines for the selection of forms of haulage on cost grounds can be found in the Conveyor Equipment Manufacturers Association (CEMA) publication. CEMA agrees with the second bullet point above and adds four other economic points.
4.Beyond 1 km distance, the ton-mile cost of transport by belt conveyor may be as low as 1/10th cost by haul truck.
5.Estimated operating maintenance cost per year for a belt conveyor is 2% of the purchase cost plus 5% of the belt cost.
6.Belt replacement is on average every 5 years for hard rock applications and up to 15 years for non-abrasive applications.
7.Well maintained conveyor systems can reliably operate at 90% or higher availability.

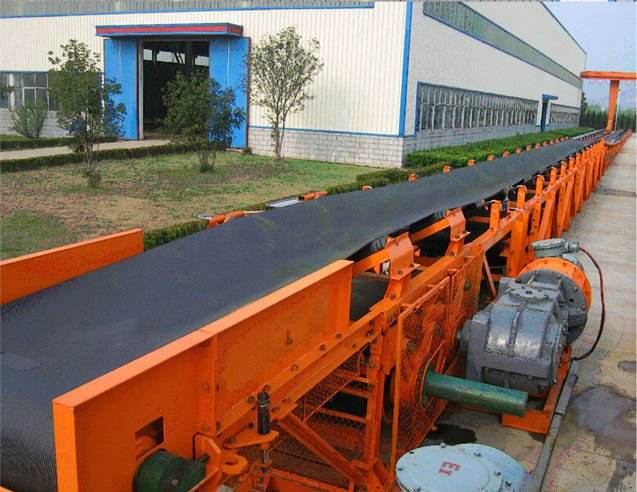

Long Distance Telescopic Portable Mobile Mining Belt Conveyor for MineBelt Conveyor Applications  Belt Conveyors are used in self-unloading bulk freighters and in live bottom trucks. Belt conveyor technology is also used in conveyor transport such as moving sidewalks or escalators, as well as on many manufacturing assembly lines. Stores often have conveyor belts at the check-out counter to move shopping items. Ski areas also use conveyor belts to transport skiers up the hill.

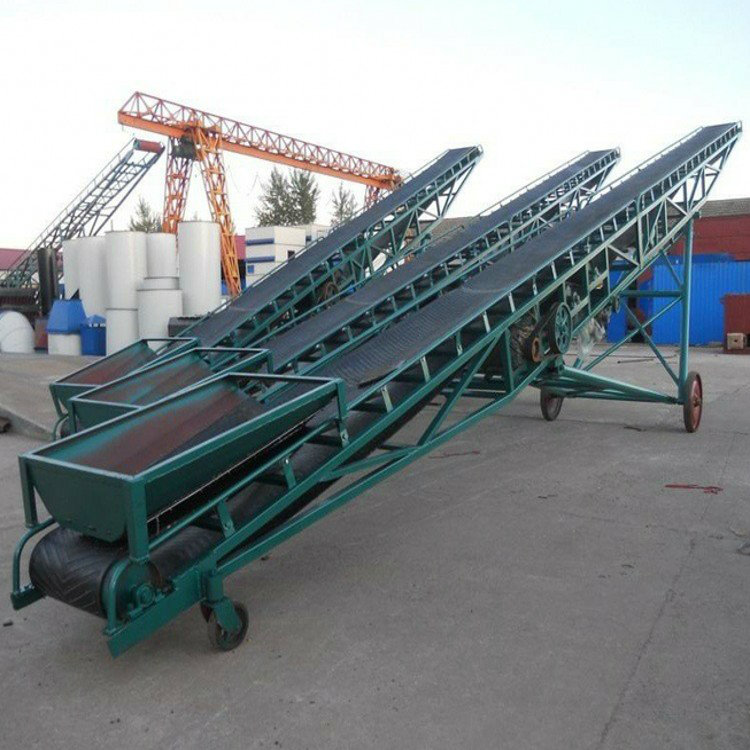

Long Distance Telescopic Portable Mobile Mining Belt Conveyor for Mine

Techinical Parameters of mobile belt conveyor

Belt Width(mm)     Blet Length/Power(kw)    Belt Speed(m/s)   Capacity(t/h)
I(I/kw)   II(I/kw)     III(I/kw)
B400 12/1.5         12-20/2.2-4   20-25/3.5-7.5     1.3-1.6 40-80
B500 12/3 12-20/4-5.5 20-30/5.5-7.5 1.3-1.6 80-190
B650 12/4 12-20/5.5 20-30/7.5-11 1.3-1.6 130-320
B800 6/4 6-15/5.5 15-30/7.5-15 1.3-1.6 280-550
B1000 10/5.5 10-20/7.5-11 20-40/11-12 13-2 440-850
B1200 10/7.5 10-20/11 20-40/15-30 13-2 660-1200

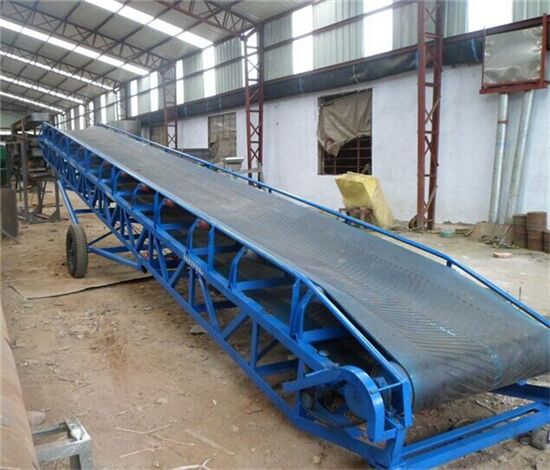

Long Distance Telescopic Portable Mobile Mining Belt Conveyor for MineCompany Information

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.

with 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant

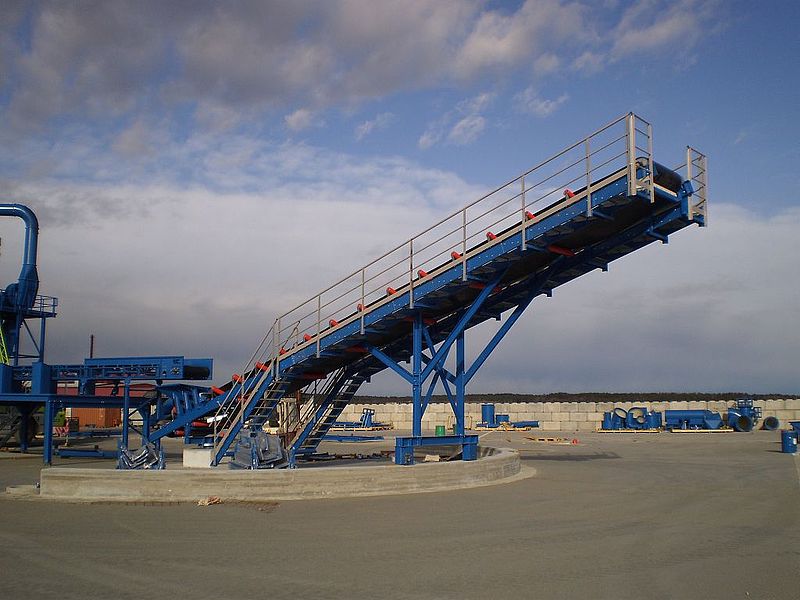

Long Distance Telescopic Portable Mobile Mining Belt Conveyor for Mine

Our Services

1. One year guarantee.

2. Sample testing.

3. Our technician can design your project based on your information such as flow chart.

4. Engineer available for over seas installation and training.

5. after sale service, such providing spared parts.

FAQ

Q: Are you a manufacturer of spiral chute?

A: Yes, we are manufacturer of spiral chute and have our own factory, located in Shicheng, Ganzhou, Jiangxi.

Q: What is the warranty of spiral chute?

A: 1 year.


Q: will you help to install spiral chute machinery?

A: If you need, we will have our technicians to assist you for installation.


Q:Could your company provide customized products?

A: Yes. OEM is welcome.
