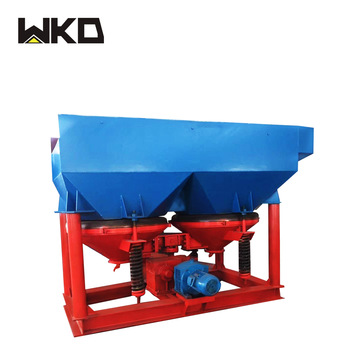

Mining Equipment Jig Concentrator with Best Price

Supply Ability: 200 Set(s) per Month
Shipping: Xiamen
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangxi in China
Packaging Details: 1 SET IN nude package

Quick Details

  • After-sales Service Provided: Overseas third-party support available
  • Warranty: 1 YEAR
  • Brand Name: JXWKD
  • Type: Gravity Separator
  • Condition: New
  • Certification: ISO 9001:2008
  • Weight: 612 kg
  • Dimension(L*W*H): 1530*780*1550
  • Power(W): 1.1 KW
  • Voltage: 380V
  • Model Number: JT-0.57
  • Production Capacity: 1.5 T/ H
  • Color: Multi color
  • Material: Carbon steel
  • OEM: Yes

Specifications

Gold Jigger Product Introduction Jigging Machine is a separation machine with deep tank, which is developed according to the law of layer theory of jigger bed stratification, and on the basis of traditional jigger. The performance of jigging machine has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation. When processing the open-pit mines, the jigging machine is a key machine with the principle of gravity separation. Jigging machine pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
Mining Equipment Jig Concentrator with Best Price
Gold Jigger Working Principle
Jig machines need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. the basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber.
Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. the minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.
Mining Equipment Jig Concentrator with Best Price
Application
this jig machine Can achieve a good result in processing such as placer gold, diamond, tungsten, iron, tin, hematite, cope, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.
Mining Equipment Jig Concentrator with Best Price
Gold Jigger Main Feature
1.High capacity, High concentration ratio and recovery
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation,Saving water 30-40% than ordinary jig
Main Structure

  • 1. Lauder
  • 2. Feeding Mouth
  • 3. Drive Plate
  • 4. Connector
  • 5. Transmission Part
  • 6. Push-puller
  • 7. Rubber Ring
  • 8. Connecting Rod
  • 9. Rack
  • 10. Heavy Mineral Discharge Port
  • 11. Deposition Hopper
  • 12. Middling Discharge Port
  • 13. Screen Plate

Mining Equipment Jig Concentrator with Best Price
Gold Jigger Technical Parameters
Model Cham shape Ber Area m2 Feeding size(mm) Water added Water
Pressure(Mpa)
Capacity Power(kw) Dimension
(mm)
Weight(kg)
JT-0.57 Ladder 0.57 <15 5~20 >0.5 1~2 1.5 1530*780*1550 612
JT1-1 Ladder 1 <20 8~25 >0.5 2~3 2.2 2060*1112*1890 989
JT2-2 Rect 2.28 <20,screen on top<60 35~50
50~65
>0.5 7.5~10
7.5~15
3 single motor
2.2*2 dual motor
2870*1520*1880 1637
JT3-1 Ladder 3.3 <20 35~50 >0.5 10~15 5.5 2662*2000*3030 3260
JT4-2 Rect 4.86 <20,screen on top<60 50~65
65~80
>0.5 15~20
15~30
7.5 single motor
5.5*2 dual motor
4240*1990*2750 3500
JT5-2 Ladder 5 <20,screen on top<60 50~65
65~80
>0.5 16~23
16~33
7.5 single motor
5.5*2 dual motor
3940*2006*2580 3854

Company Information

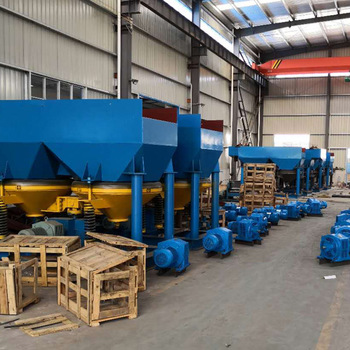

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
with 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant


Mining Equipment Jig Concentrator with Best Price

Our Services

1. One year guarantee.

2. Sample testing.

3. Our technician can design your project based on your information such as flow chart.

4. Engineer available for over seas installation and training.

5. after sale service, such providing spared parts.

FAQ

Q: Are you a manufacturer of spiral chute?

A: Yes, we are manufacturer of spiral chute and have our own factory, located in Shicheng, Ganzhou, Jiangxi.

Q: What is the warranty of spiral chute?

A: 1 year.


Q: will you help to install spiral chute machinery?

A: If you need, we will have our technicians to assist you for installation.


Q:Could your company provide customized products?

A: Yes. OEM is welcome.
