Home  >Products Catalog > dc contactor > DC Rated Contactors Single Pole Contactor with 200 A 24 Volt Coil 6000 Times Electric Life

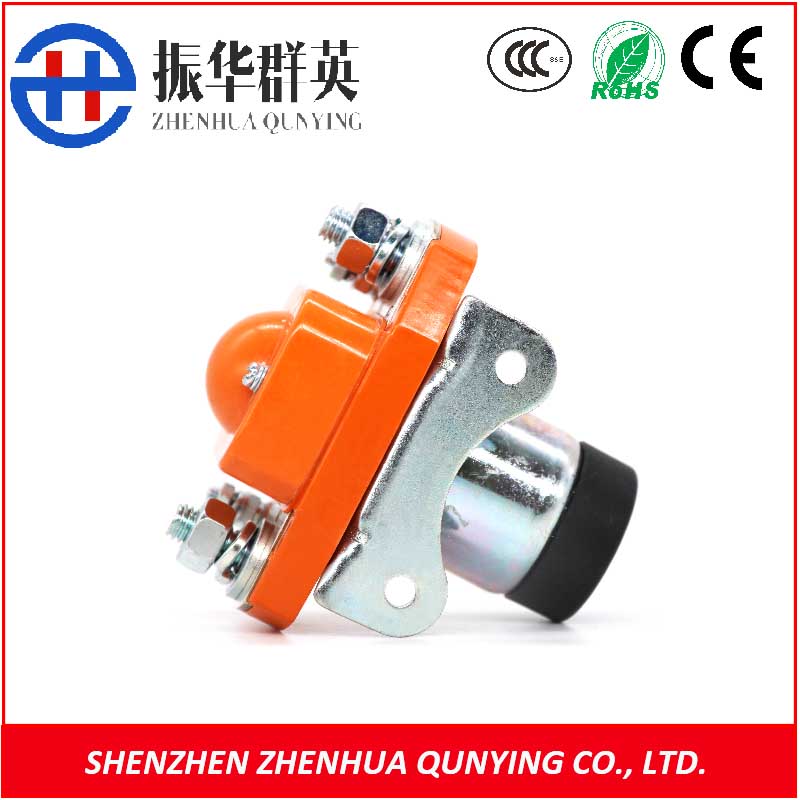

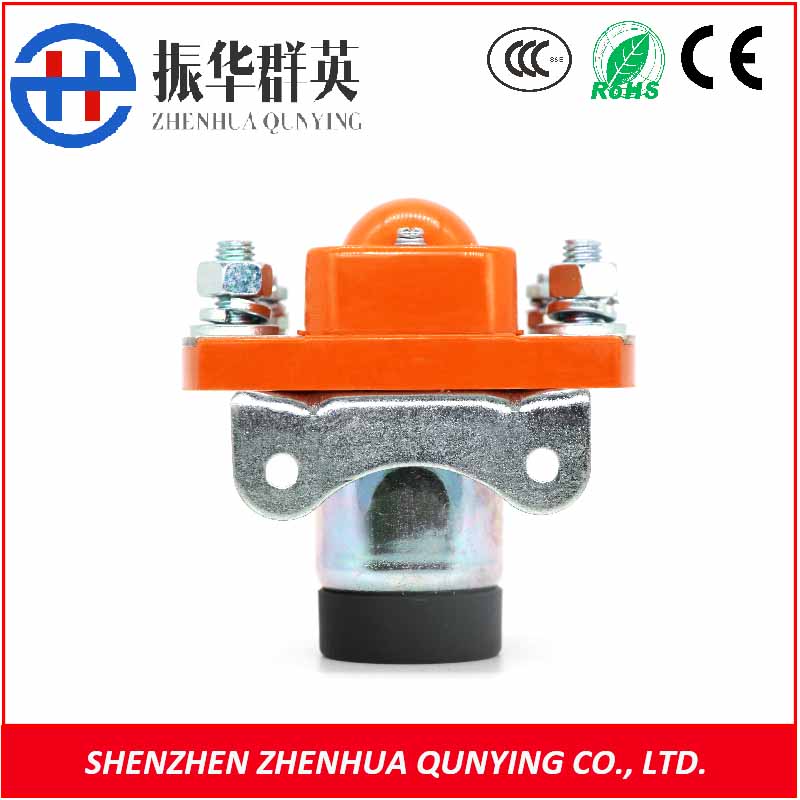

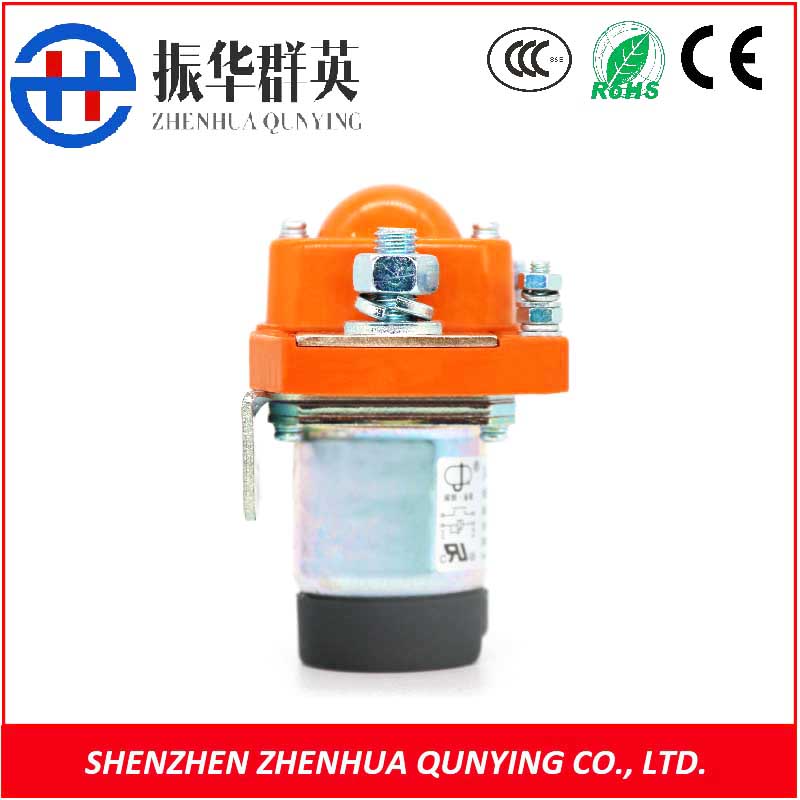

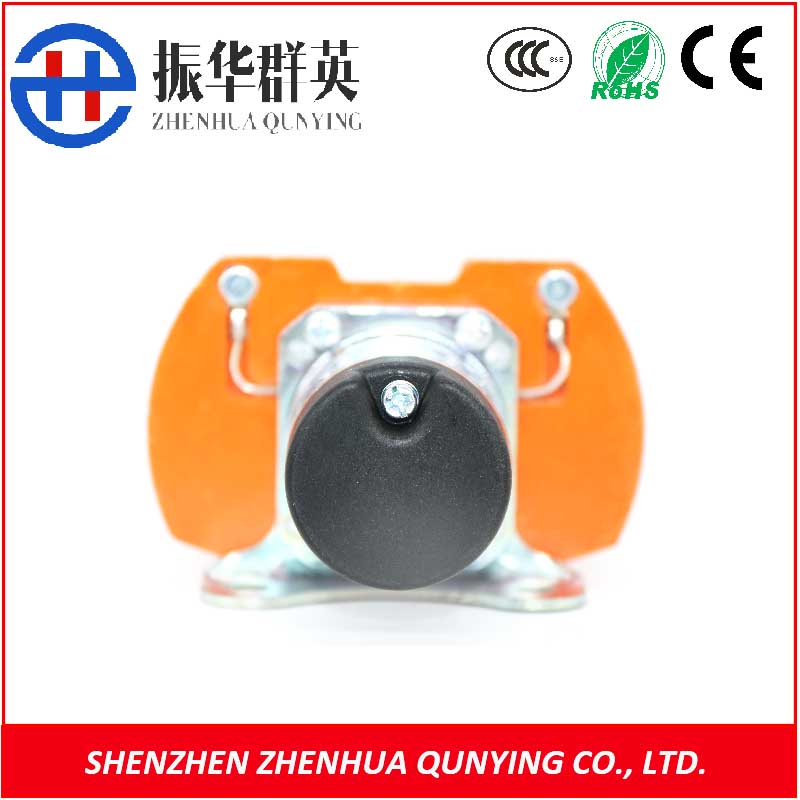

DC Rated Contactors Single Pole Contactor with 200 A 24 Volt Coil 6000 Times Electric Life SafeBuy Supplier Member

Supply Ability: 1,000 Piece(s) per Day
Shipping: shenzhen port
Payment Terms: T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: standard package

Quick Details

  • Main Circuit Rating Current: 200a
  • Main Circuit Rating Voltage: 48v
  • Phase: 0
  • Brand Name: OEM
  • Model Number: 200H(B)/48-48BW
  • Rated coil voltage: Ue=48V
  • Maximum coil voltage: 57.6V
  • Mininum coil voltage: 38.4V
  • Load current: 200A
  • Dielectric strength: 50HZ
  • Mechanical life: 10,0000 times
  • Electric life: 6000 times
  • Weight: 0.442KG

Specifications

Solenoid Single Pole Dc Operated Contactor Controlled By A Circuit For ForkliftSolenoid Single Pole Dc Operated Contactor Controlled By A Circuit For ForkliftSolenoid Single Pole Dc Operated Contactor Controlled By A Circuit For ForkliftSolenoid Single Pole Dc Operated Contactor Controlled By A Circuit For Forklift



1. DC contactor
Summary

JQ-200H(B)/48-48BW DC contactor has a set of bridge normally opened contactors with load current up to 200A. Accord with GB1408.4-2010/IEC60947-4-1:2009 Ed.3.0.MOD, YD/T585-2010. Suitable for communication power equipment electrical control device.


2. Usage condition

Ambient temperature: work

- 40 ~ + 60;

Storage and transportation: - 40 ~ + 70

Relative humidity 95% at 40
Altitude Not more than 2000 meters
Vibration 10-55hz
Amplitude 0.35mm
Impact 30m/s2


3. Standard,safty and environmental protection

(1) Comply with GB14048.4-2003 / IEC60947-4-1:2000 low voltage switching equipment and control equipment electromechanical contactor and motor starter standard;

(2) YD/T585-2010 General credit distribution equipment technical conditions.


4. Parameter table

Parameter Coil voltage of contact circuit
Voltage range 6-220v
Coil power 5-8w
Normal state Normally opened
Main rated load current of contact circuit 200A
Rated voltage of contact circuit 6-80v
Sucking time 40ms
Releasing time 30ms
Mechanical life 100000times
Electric life 1000times
Coil resistance 603.6-708.4


5. Order mark standard

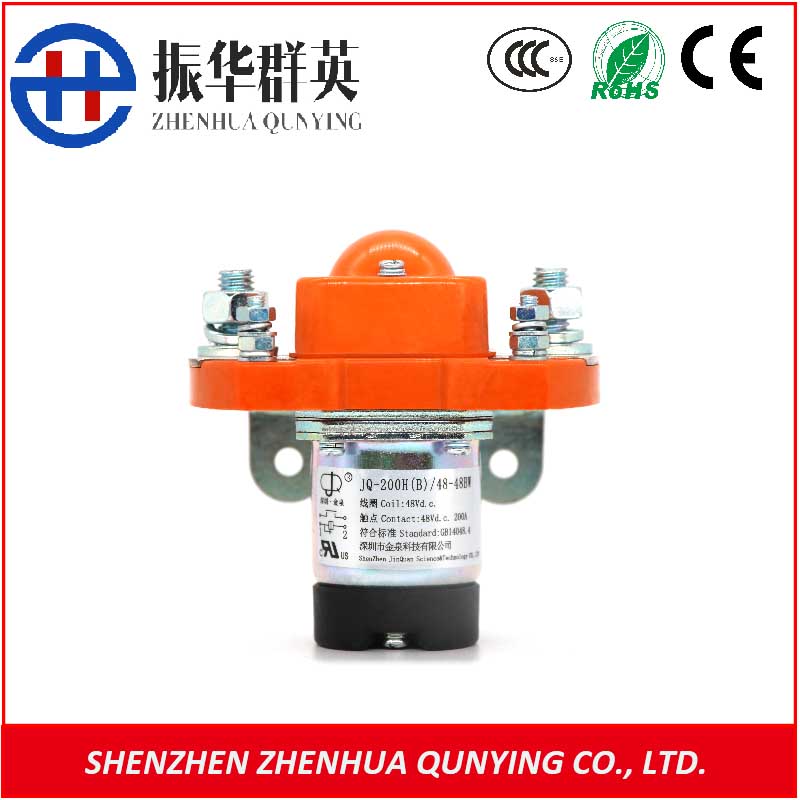

JQ - 200H(B)/48 - 48BW

JQ DC Ccontactor
200 Rated load 200A
H Normally Opened
(B) Communication power
B Double coil
48 the contact voltage
48 the contact voltage
W Bending mounting plate


6. Current curve
Low Voltage Electromagnetic Dc Contactor Relay Continuous Operation Duty

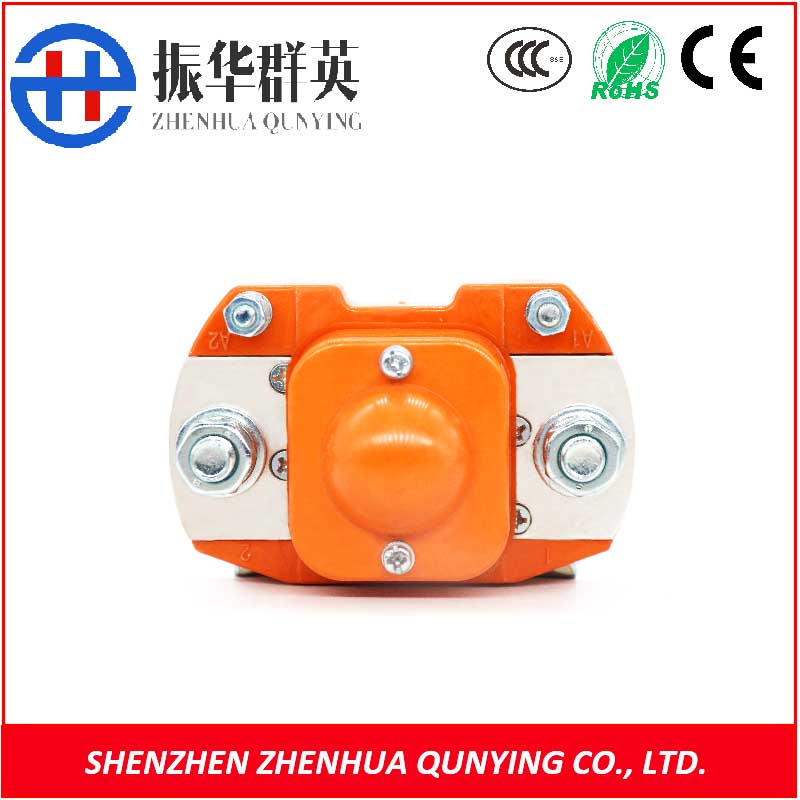

7. the circuit diagram of the configuration, installation and terminal
Low Voltage Electromagnetic Dc Contactor Relay Continuous Operation Duty8. Series of products presentation
Low Voltage Electromagnetic Dc Contactor Relay Continuous Operation Duty

9.
 General description about company

Shenzhen Zhenhua Qunying Electronics CO.,Ltd. Was founded on July 6 , 2012. It's located in in Shenzhen, China's first economic Zone. Our plant was built in 2017. We are Professional manufacturer of Electronics focusing on researching, producing and Selling high(low) pressure Contactor, relay(Magneticretaining relay), shunt Resistor, potentiometer.
Solenoid Single Pole DC Operated Contactor Controlled by A Circuit for Forklift


11. Our mission
A.  Focusing on quality

B.  Innovation is our life

C.   Offering best service to Our customers

D.   Dedicating all the energy to our business

E.   Thankfulness to all

We strictly supervise of products' quality and have been trying to Supply the best service and competitive price to our Customers. In order to Guarantee the interest of customers, we organize a Professional technical team To track industry market and researching suitable Products to meet our Customers' needs.


12. Our advantages
Solenoid Single Pole DC Operated Contactor Controlled by A Circuit for Forklift

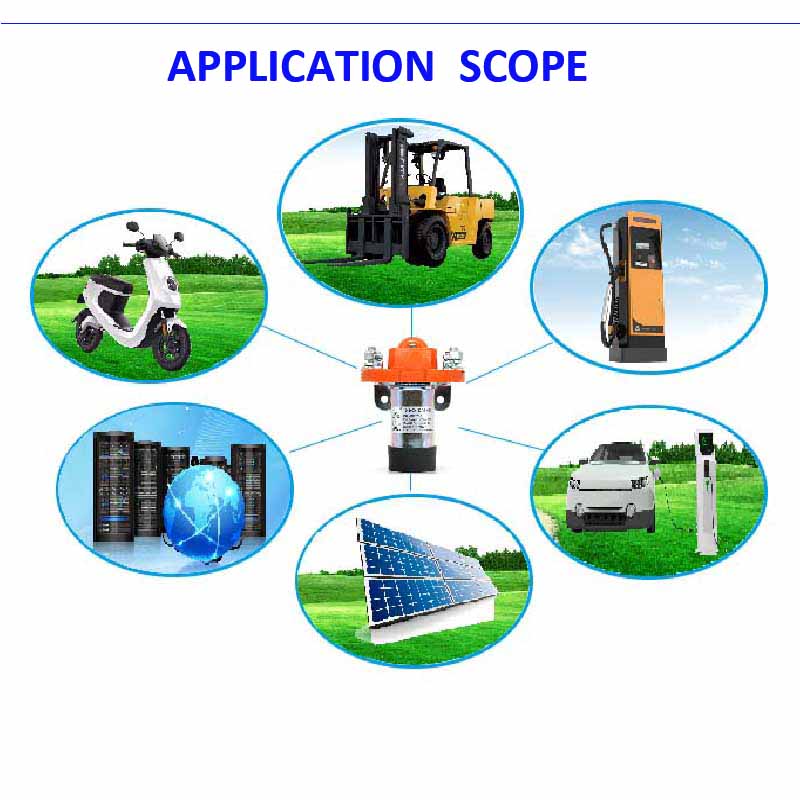

13. Application scope
Solenoid Single Pole DC Operated Contactor Controlled by A Circuit for Forklift


13. Payment
(1).
We accept Western Union and T/T

(

2). 30% deposit and 70% before shipping

(3). No payment Collection. We only can deliver goods after getting full payment


14. Packaging and Shipping


Solenoid Single Pole DC Operated Contactor Controlled by A Circuit for Forklift
