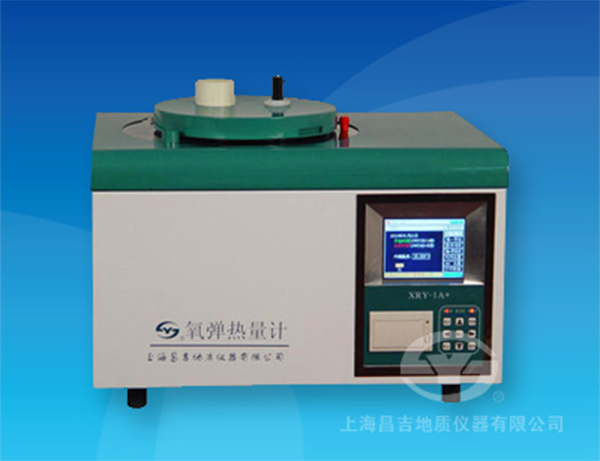

Automatical Oxygen Bomb Calorimeter, ASTM -- D240

Specifications

I. Main technical features

1. the instrument adopts technology of single chip machine, LCD screen, high accuracy temperature sensor and high
    performance A/D conversion device. It is a highly intelligent instrument.

2. the test procedure is fully automatic. after placing the sample and inputting the right parameters, the instrument will
    finish all the procedures without manual interference. It will print the test data directly after test is over.

3. this instrument adopts sealed oxygen bomb. the whole structure adopts stainless steel material.the strength is
    enough to resist 20MPa hydrostatic test under room temperature.

4. the inner water container is made of stainless steel and the section likes as a pear.Its water volume is 3000g and with
    electric stirrer to make sure the uniform temperature in water bath.

5. the external water jacket is a double container.It will be filled fully with water when testing,and the stirrer in the water
    jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.

II. Main technical specifications

1. Heat capacity: 14000 J/K15000 J/K

2. Measuring range: (1035)

3. Resolution: 0.001 K

4. Measurement accuracy: 60J/g

5. Repeatability error: 0.2% (Grade C)

6. Pressure endurance of bomb: 20 MPa

7. Temperature measurement range: 10 28

8. Relative humidity: 85%

9. Power supply: AC 220V5%, 50 Hz

10. Overall dimension: 600mm480mm460mm

11.Total power consumption: Less 150W

  (Note: Pellet press machine is optional)
