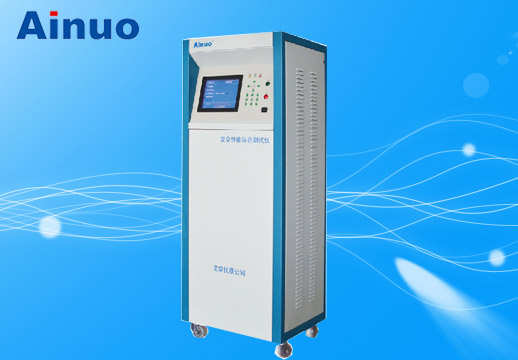

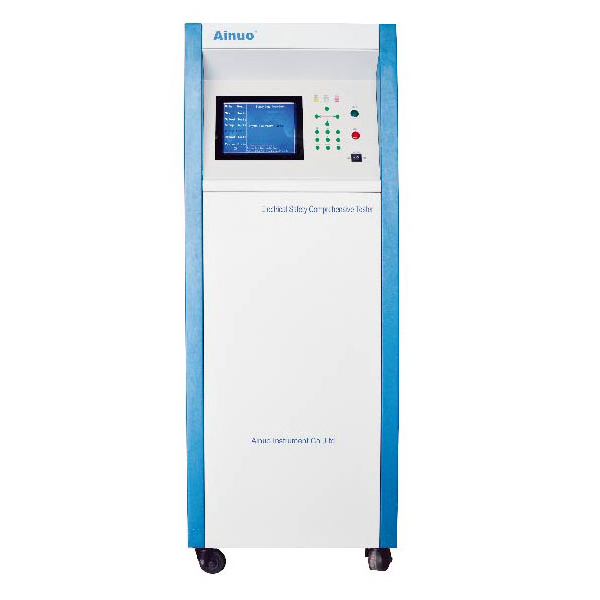

Precision Electrical Safety Comprehensive Tester AN9651TH(F)

Model

AN9651TH (F)(Three Phase/single phase7 In1)

Ground Bond Test

Empty Load Output Voltage

<12V

Output Current Setting Range

AC3A~30A 50Hz/60Hz,1A/step

Output Current Setting Accuracy

(2% of setting+0.2A)

Upper Limit of Resistance

3Aoutput current10A, 10~600m; 10A

Ground Bond Resolution/ Measurement Range/ Accuracy

1m, 10~600m, (2% of reading +2m)

Compensation Resistance Measurement Range/Accuracy

0~200m 1m

Test Time Setting Range

0.5~999.9s 0.1s/step

Insulation Resistance Test

Rated Output Load/Current

1VA (1000V/1mA) 1mA

Output Voltage Range/Adjustable

DC:500V/1000V <1% (Empty load to full load)

Output Voltage Ripple

Pure resistance load, 1000V/1mA, <3%

Insulation Resistance Range

1.0~2000M

Insulation Resistance Lower Limit Setting Range/ Resolution

1.0~99.9 M, 0.1M/step, 100~2000 M 1 M/step

Insulation Resistance Accuracy

1~200 M: (2% of reading+2counts), 200~2000 M: (5% of reading+5counts)

Ramp-up Time Range/Resolution

0.1~999.9s 0.1s

Delay Judgment Time

0.3~10.0s (Count from ramp-up )

Test Time Setting Range

0.5~999.9s 0.1s/step

AC Hipot Test

Rated Output Load

500VA (AC:5000V/100mA)

Output Voltage Range /Frequency/Adjustable Rate

500~5000V, 50Hz/60Hz, <2%(Empty load to full Load)

Output Voltage Setting Range/Accuracy

Cold state AC:500~5000V, Hot state AC:500~2500V, 5V/step, (2.5% of setting+5V)

Leakage Current Preset Alarm

Upper limit: 0.10~99.99mA; Lower limit: 0.00~99.99mA , 0.01mA/step

Compensation Current Setting Range/ Resolution

0.00 ~5.00mA, 0.01mA

Output Initial Voltage Range

(0%~99%) of test voltage, from 0V to initial voltage Need 200ms

Leakage Current Measurement Range/Resolution/Accuracy

0.10~99.99 mA, 0.01mA, (2% of reading +2counts)

Test Time/Ramp-up/Ramp-Down

0.5~999.9s, 0.1~999.9s, 0.0~999.9s(after test pass)

DC Hipot Test

Rated Output Load

60VA (AC:6000V/10mA)

Output Voltage Range /Frequency/Adjustable Rate

500~6000V, <2%(Empty load to full load)

Output Voltage Setting Range/Accuracy

Cold state AC:500~6000V, Hot state AC:500~2500V, 5V/step, (2.5% of setting+5V)

Leakage Current Preset Alarm

Upper limit: 50~9999A; Lower limit: 0~9999A, 1A

Compensation Current Setting Range/ Resolution

0 ~5000A, 1A

Output Initial Voltage Range

(0~99%) of test voltage, from 0V to initial voltage Need 200ms

Leakage Current Measurement Range/Resolution/Accuracy

50~9999A, 1A, (2% of reading +2counts)

Test Time/Ramp-up/Ramp-Down

0.5~999.9s, 0.1~999.9s, 0.3~10.0s(Count from Ramp-up)

Leakage Current Test

Output Voltage Range

1.06 times of input voltage (output by isolated Transformer)

Leakage Current Range/Resolution

Upper limit: 50~9999A 1A

Compensation Current Setting Range/ Resolution

0~500A 1A

Test Time Range/Resolution

1.0 ~999.9s 0.1s

Leakage Type

Dynamic, static

Three Phase Dynamic Mode

A mode: ABC-AB-BC-CA (standard)
B mode: ABC-AB-ABC-BC-ABC-CA (customized)

Output Voltage Measurement Range/Accuracy

AC 50~500.0V 0.1V, (0.5% of reading+2counts)

Leakage Current Measurement Range/Accuracy

50~9999A 1A
DC~10kHz: (2% of reading+5counts) 10kHz~1MHz: (5% of reading+5counts)

Leakage Current Accuracy

50.0~2000A is (5% of reading);2000A or above is (2.5% of reading)

Leakage Power

6kVA,isolated transformer capacity is designed According to the rated voltage 220V

Time Setting Range

1~300s

Measurement Mode

Dynamic, static

Power Test

Output Voltage Range

1.00 times of input voltage (output by isolated Transformer)

Power Setting Range/Resolution

Upper limit, Single phase:20~6000W Three Phase:60~20000W
Lower limit, Single phase:0~6000W Three phase:0~20000W 1W/step

Test Time Range/Resolution

0.5 ~999.9s 0.1s

Voltage Measurement Range and Accuracy

AC:50.0V~500.0V, 45~65Hz: (0.5% of reading +2counts)

Current Measurement Range and Accuracy

AC:0.30~30.00A, 45~65Hz: (0.5% of reading +2counts)

Active Power Measurement Range and Accuracy

20.0~999.9W; 1.000~9.999kW; 10.00~20.00kW
45~65Hz: (0.5% of reading +2counts)

Power Factor Range and Accuracy

0.100~1.000, (2% of reading +2counts)

Low Voltage Start Test

Output Voltage Range

0.85 times of input voltage (output by isolated Transformer)

Test Time Range/Resolution

0.5 ~999.9s 0.1s

Current Setting Range/Resolution

Upper limit: 0.30 ~30.00A Lower limit: 0.00 ~30.00A0.01A

Voltage Measurement Range and Accuracy

AC:50.0V~500.0V, 45~65Hz: (0.5% of reading +2counts)

Current Measurement Range and Accuracy

AC:0.30~30.00A, 45~65Hz: (0.5% of reading +2counts)

Display Mode

10.4 Inch, 640480, TFT LCD display

Isolated Transformer Capacity

Three Phase:20kVA, Single Phase: 6kVA

over Current Protection

Power, Start, Leakage Current, Phase Current35A, over 5s protection

DUT Type Setting

Single Phase, Three phase Three line, Three phase Four line

Grounding Mode

Load Grounding, Load Floating

DUT Error Processing

Voice and light alarm

Outer Alarm Light

Red alarm light

PLC Output Interface

Each test function have one

Interface Function

RS232, Outer Printer, Remote

Optional Interface

RS485, GPIB, Internet Card, Inner Printer

Remote control Interface

Foot Pedal, three-color alarm light(on-off signal Output, PRINTER, 97 COM interface, Mini-Printer function optional)

Test Group

15 groups, 8 steps / group

Buzzer Alarm Voice

Can turn on,Can cut
