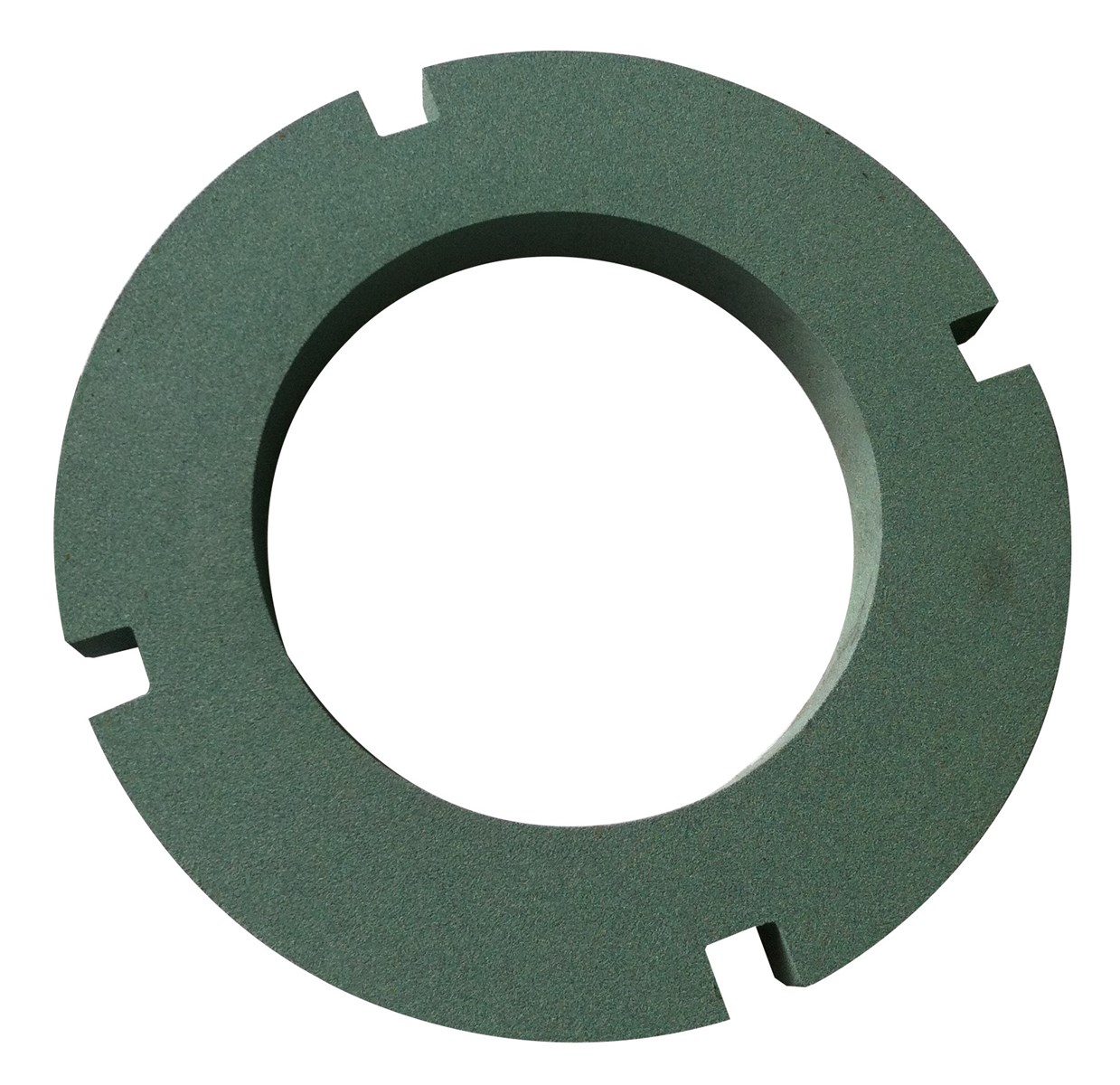

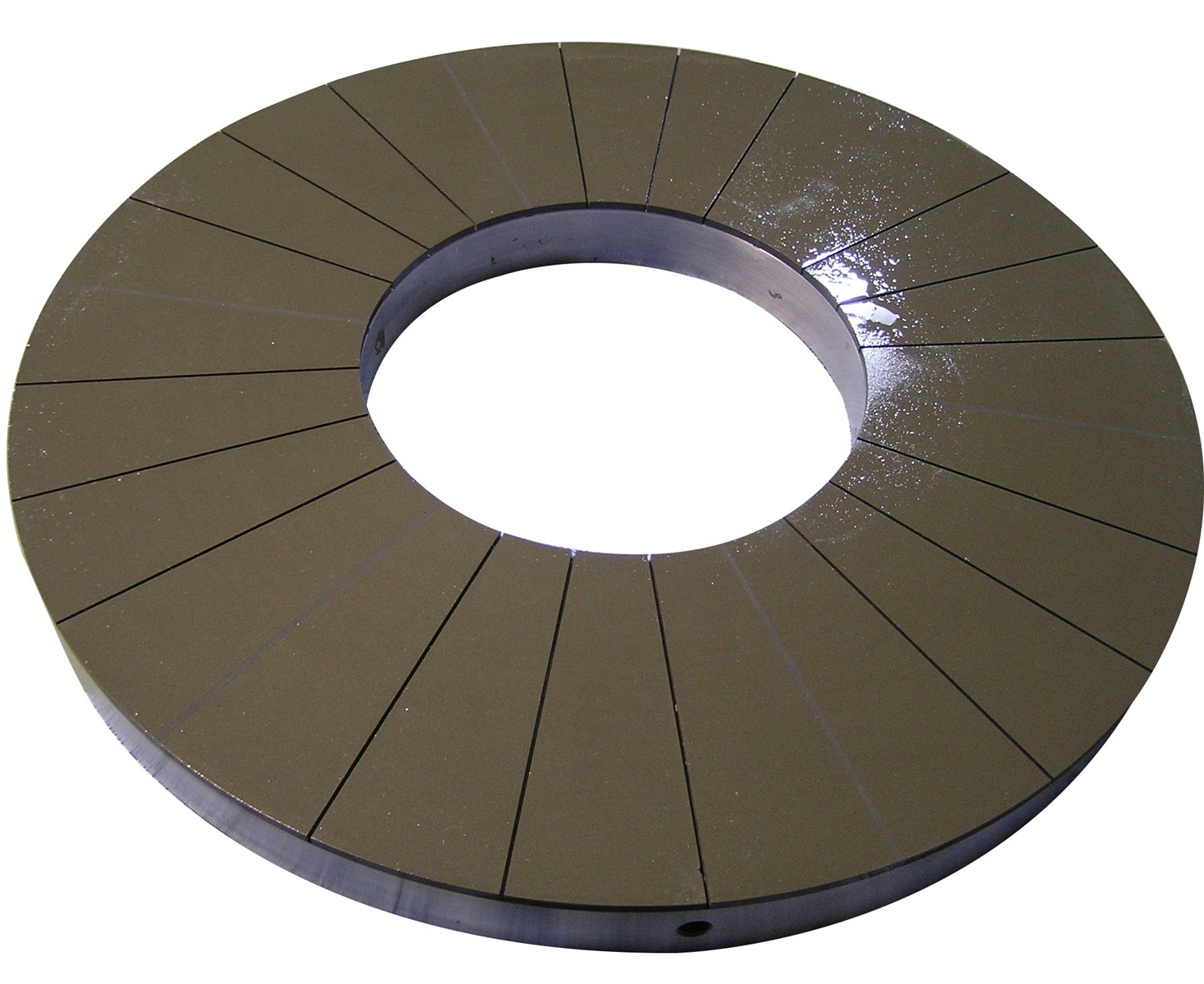

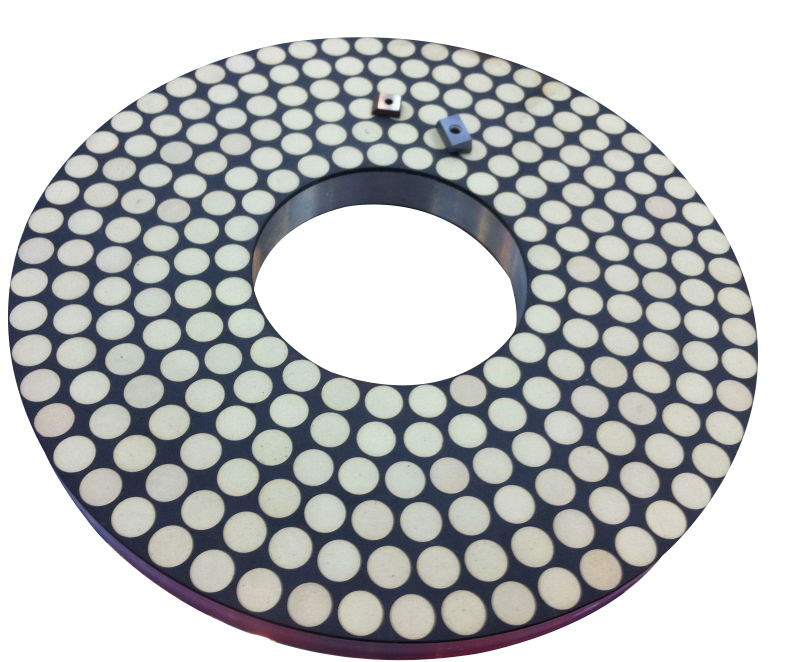

Double Disc Diamond/ CBN Grinding Wheels Sets for End Grinding Machines

Supply Ability: 100 Piece(s) per Month
Shipping: FOB Tianjin/Shanghai
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Beijing in China
Packaging Details: wooden cases

Quick Details

  • Size: 700*300*6 mm
  • Type: Abrasive Disc
  • Brand Name: KSHS
  • Material: diamond /CBN
  • Grit: 200-3000
  • Model Number: 700-300-6
  • Bond: Resin, metal, or ceramic
  • Sizes: OD700*ID300*T6MM
  • Grit: customized
  • Package: wooden case

Specifications


Origin:

Made in China;

Made in Korea.



Quality control:

ISO9001:2008

CE



Application fields



Double faceDiamond grinding wheel:



Suitable for grinding hard and brittle materials such as cemented carbide, ceramics, optical glass, agate, semiconductor materials, stone materials and non-ferrous metals.

however, under a high temperature, it will spread to iron, chromium, vanadium, tungsten, molybdenum, titanium and other metals to form carbide, which will accelerate abrasive wear. Therefore, it is not suitable to grind iron and steel. Various alloy cast iron can be ground because the carbon in cast iron is saturated, and no diffusion problems will occur.



Double face CBNGrinding wheel:

Mainly used for machining black metal materials with high strength and high hardness. for example, tool steel, die steel, stainless steel, heat-resistant steel, high vanadium steel, quenched steel, etc.







Application Industries:



Hydraulic components: vane pump, steering pump, plunger pump, gasoline pump, hydraulic motor, etc.

Compressor parts:Piston, cylinder, air conditioning compressor blade, refrigerator compressor valve plate, etc.

Engine parts: oil pump nozzle parts, supercharger parts, internal combustion engine parts, etc.



Carbide blades, high precision bearings, seals, watch parts, precision ceramics, magnetic materials, etc.



According to different materials, roughness can reach Ra 0.05 um-Ra 0.2 um, parallelism 1.5um and flatness 1um



Technical Data:
double disc Diamond CBN grinding wheels sets for end grinding machines




Shape

DTHX  (mm)

Abrasive No.

PArticle size

Bond

COncentration

D

T

H

X

E.g.: 6A2T

700

55

300

5

RVD

#800

V

100

Specifications Customizable
