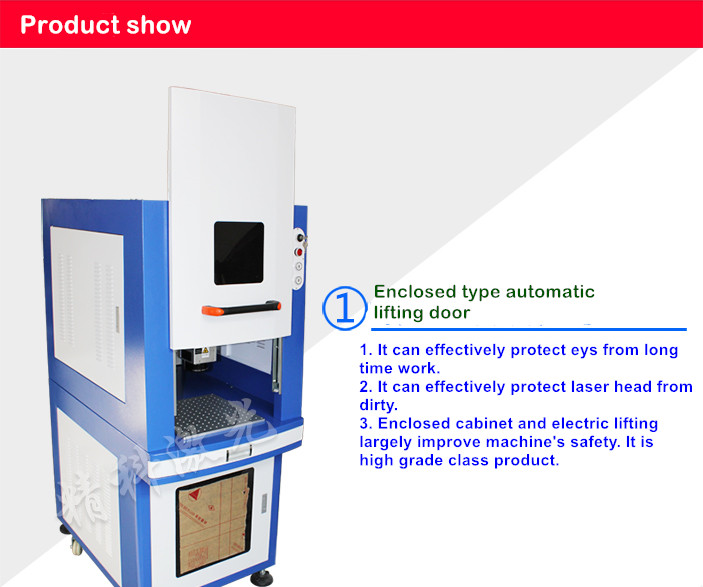

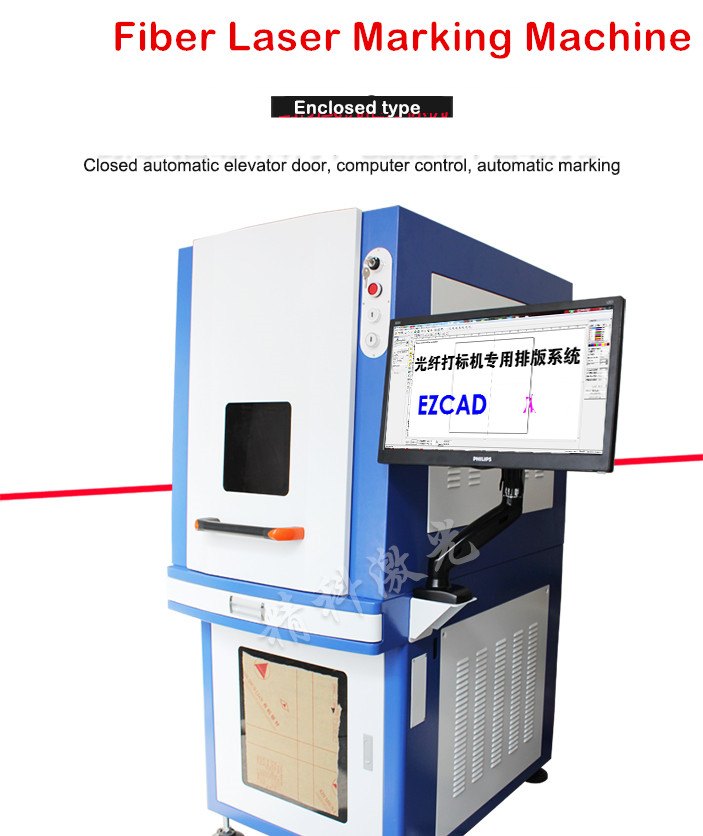

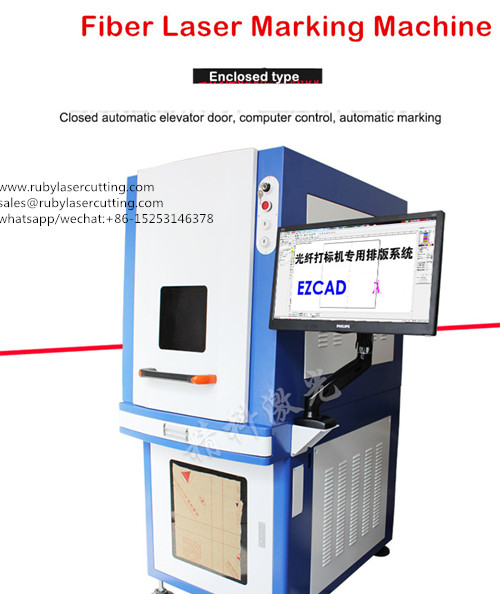

Enclosed Type 30W Fiber Laser Marking Equipment MOPA Black Marking
| Supply Ability: | 200 Set(s) per Month |
|---|---|
| Shipping: | 4 working days after payment is received DHL |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | WOODEN BOX AND FOAM |
Quick Details
- Application: Laser Marking
- Certification: CE
- Brand Name: Rubylasertech
- Graphic Format Supported: AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
- Condition: New
- Applicable Material: metal and non metal
- After-sales Service Provided: Engineers available to service machinery overseas
- Power(W): 20W30W50W
- Model Number: 20W FIBER LASER MARKING MACHINE
- Control Software: EZCAD
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Laser Type: Fiber Laser
Specifications
Enclosed type 20/30/50WFiber LaserEngraving Machine Fiber laser marker
Features
1.Extremely fast, with the high-speed galvanometer.
2.Small volume, lightweight.
3.No consumables, low power consumption, less than 500W.
4.Completely air cooled, do not need water chiller, lower power consumption.
5.Robust under harsh environment and temperature change can operate with batteries or supply from an automobile cigarette lighter in case of power failure.
6.Low product depreciation cost. Ability to meet customers' mass and stable production.
Specification
1. Model:LF10, LF20, FL30 or LF50
2. Wave length:1064um
3. Laser power:10W,20W,30W or 50W IPG, Raycus or Max
3. Marking thickness:More than 0.8mm(depends on materials)
4. Min line width:0.05mm
5. Working distance:500mm
6.Marking speed: Less than 10000mm/S
7. Min character: 0.2mm
8. Repeatability precision: 0.002mm
9. Laser security classification: Class IV
10. Laser marking size: 110x110mm standard,70x70mm,200x200mm or 300x300mm optional
11. Operation software: EZCAD, it can support windowsXP/7 32
12. Graphic format: PLT,DXF,AI,SDI,BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
13. System protection: IP54
14. Galvanometer: Germany technology product
15. Control interface: USB
16. File format: All font and graphemic of Windows
17. Input voltage: 110/220V
18. Cooling method: Air cooling
19. Optional spares:Various fixtures, assembly line working table, multistation working table, rotatable working table,etc.
20. Overall power consumption: Less than 500W, Less than 700W, Less than 1000W
21. Machine size: 600x650x1300mm
22. Machine weight: 75KG
Applicable Materials
Can be used in wood,paper,leather,cloth,organic glass, epoxy,acrylic,unsaturated poluester resin and other non-metal materials.
Applicable industry
Widely used in leather,food,beverage,cloth,electronic,meter,communication instruments,package and other industries,can be combined with streamline for online marking.
