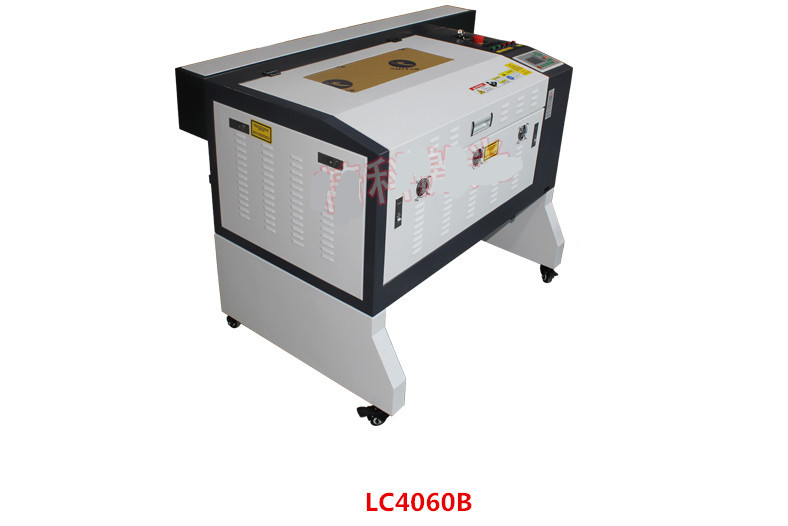

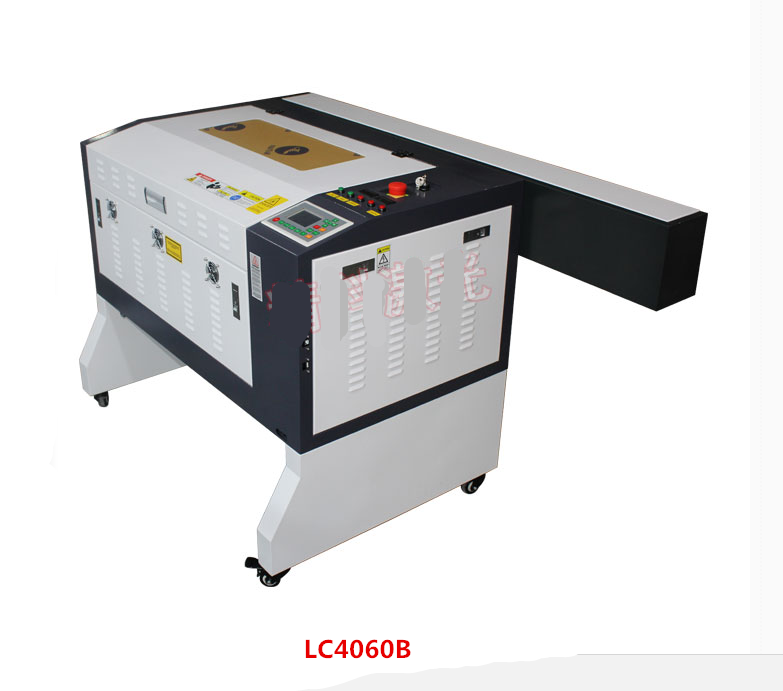

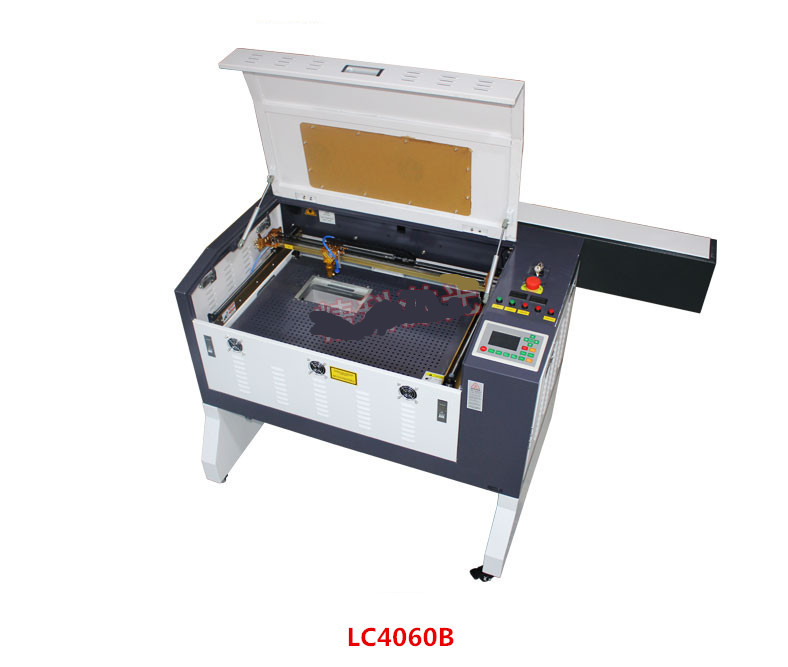

4060 60W CO2 Laser Engraving Machine AUTOFOCUS CO2 Laser Engraver

DSP and USB reading file 60W80W 6040 CO2 Laser Engraving Machine

Generally the model A use Lihuiyu mother board and laserdraw/coredraw software  while model B use  LaserCAD/AUTOCAD/RUIDA and RDworks engraving software. It makes DSP technology and USB flash disk read and edit file.

Features

1. It adopts DSP high speed processor which supports USDB 2.0 interface and U flash memory disk read and write file.  It is good for mass engraving or cutting.

2. It has power off continued carving, power failure recovery, processing time prediction, intelligent typesetting and cost budget function.

3. It supports two laser control function. Each laser power can be adjusted individually. Also two laser head reciprocal cutting is applied at this machine.

4.It has internal memory makes it can separate from PC and independently set parameters.

5. Network management makes it communicate with PC easy, security and relible.

6. 3.5 inch Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.

7. It has auto lifting platform which is good for different material engraving. the upgrade industrial CO2 laser cutting head has laser adjustment screw. It can get more accuracy laser optics path and engraving effect.

8. It has stable high speed cutting and soft velocity variations performance which realizes no sawtooth shape during high speed cutting.

9. It also has automatic blowing, auto focus, pedal switch and security protection function. Also soft/hard coordinate limit protection is applied.

10.Small circle cutting speed can be flexibly set and improve small circle cutting effect.

11. Real-time status or track of engraving or cutting and lock display function are applied on this machine.

12. Gallery has 2000 documents, laser anti-counterfeit fingerprints and thousands of fronts.

13.Hierarchy data output function is applied. Output power, output speed,laser mode(engraving,cutting or slope engraving at tach hierarchy and these data can be saved automatically.

Specification:

1. Max engraving speed:0-60000mm/min

2. Max cutting speed:0-3600mm/min

3. Repeatability:0.01mm

4. Laser power:50W,60W,80W or 100W

5. Max engraving area: 600x400mm

6. Cutting thickness:0-10cm(depends on material)

7. Min character: English 1x1mm

8. Working table: honeycomb or knife strip platform

9.Auto lifting platform: Yes. Lifting range is 0-300mm

10. Working voltage:AC110/220V,50-60Hz

11. Total power:1000W

12. Rotary clamping tool: 10-150x600mm

13. Location type: Red light

14.Driving type: Digital subdivision stepper type

15. Cooling method: Forced water cooling and protection system

16. Control software: DSP

17. Graphic format: BMP,PLT,DST,DXF and AI

18. Driving motor: Stepper motor

19. Compatible software: CoreDraw, AutoCAD and Photoshop

20. Assistant device: Exhaust fan with exhaust pipe

21:Machine size:1260x835x620mm(50W,60Wor 80W)

               145x835x620mm(100W)

Application materials

Apply on jade,MDF,metal,paper,leather,plastic,rubber,crystal and other non metal material.
