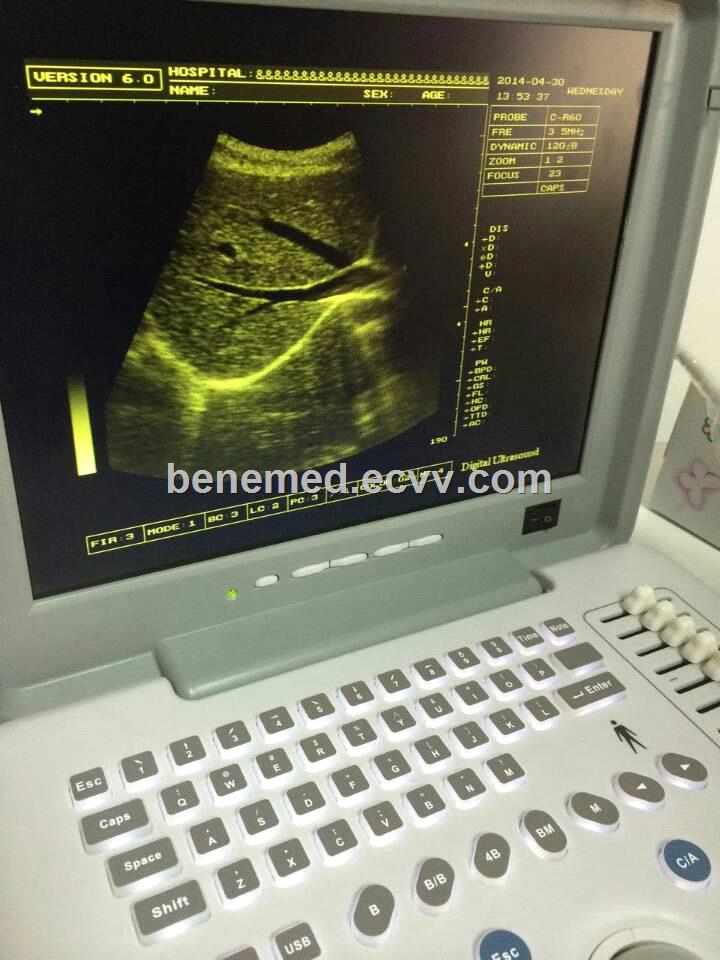

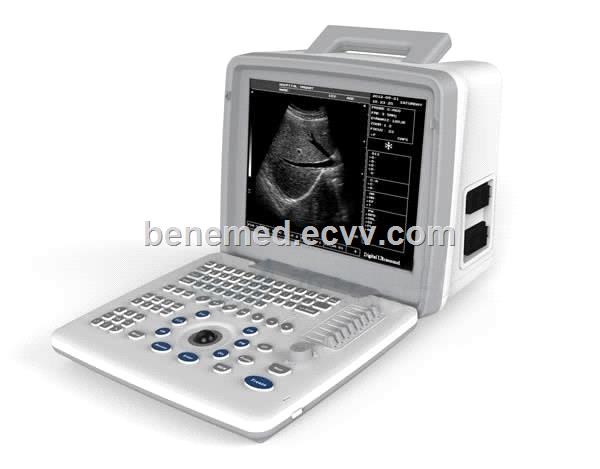

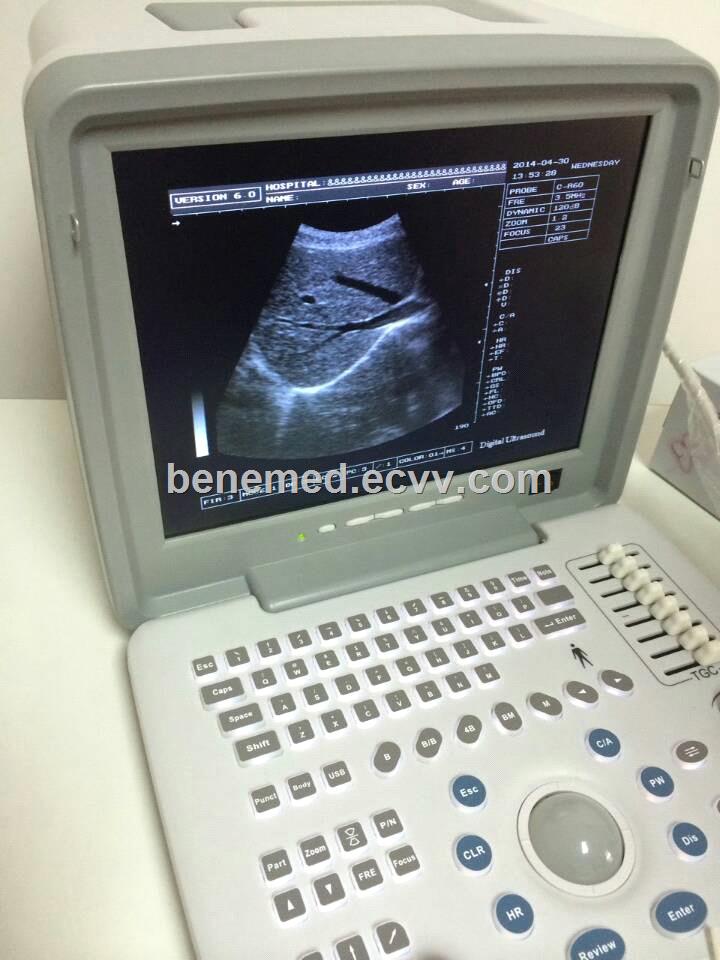

Portable Black & White Ultrasound Scanner BW-5 with 12 Inch LED Screen & Two Probe Connector
| Supply Ability: | 500 Unit(s) per Month |
|---|---|
| Shipping: | By courier DHL, Fedex, UPS, By Air, By Sea |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Carton with foam inside, wooden box |
Quick Details
- Brand Name: BENEMED
- Type: Portable Ultrasonic Diagnostic Devices
- Warranty: 18 months
- Portable: portable
- Certification: CE ISO
- Model Number: BW-5
Specifications
Specification
General Description:
Imaging Modes: B, B/B, B/M, 4B, M
Scanning Modes: Convex, Linear
Gray Scale: 256
Display: 12'' TFT LED monitor
Gain: up to 120dB
Scanning dept: up to 250mm
Imaging technology: Digital Beam-forming
Dynamic Frequency Scan
Dynamic Receiving Focusing
Dynamic Receiving Apodization
Real-time Dynamic Aperture
Imaging Processing
Pre-processing: Dynamic range
Line Density
Frame correlation
Edge enhance
Post-processing: Gray scale
Gray reject
Scan angle
Polarity reverse
Left/Right reverse
up/down reverse
Functions:
ZOOM: Local zoom
Panoramic zoom
Image memory: 127 frames
Cine Loop: 256 frames
View: Patient info, patient image, Patient report
Pseudo color: 16 colors selectable
Software Functions
General measurement: distance, circumference, area, volume, angle, ration, etc
Calculation package: abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc
Peripheral ports: USB SVGA PAL-D Video output
Others:
Net weight: 6.0KG
Power supply: AC 220V22V 50Hz
Dimensions: 480*380*410
Standard Configurations:
BW-5 main unit
12'' TFT monitor

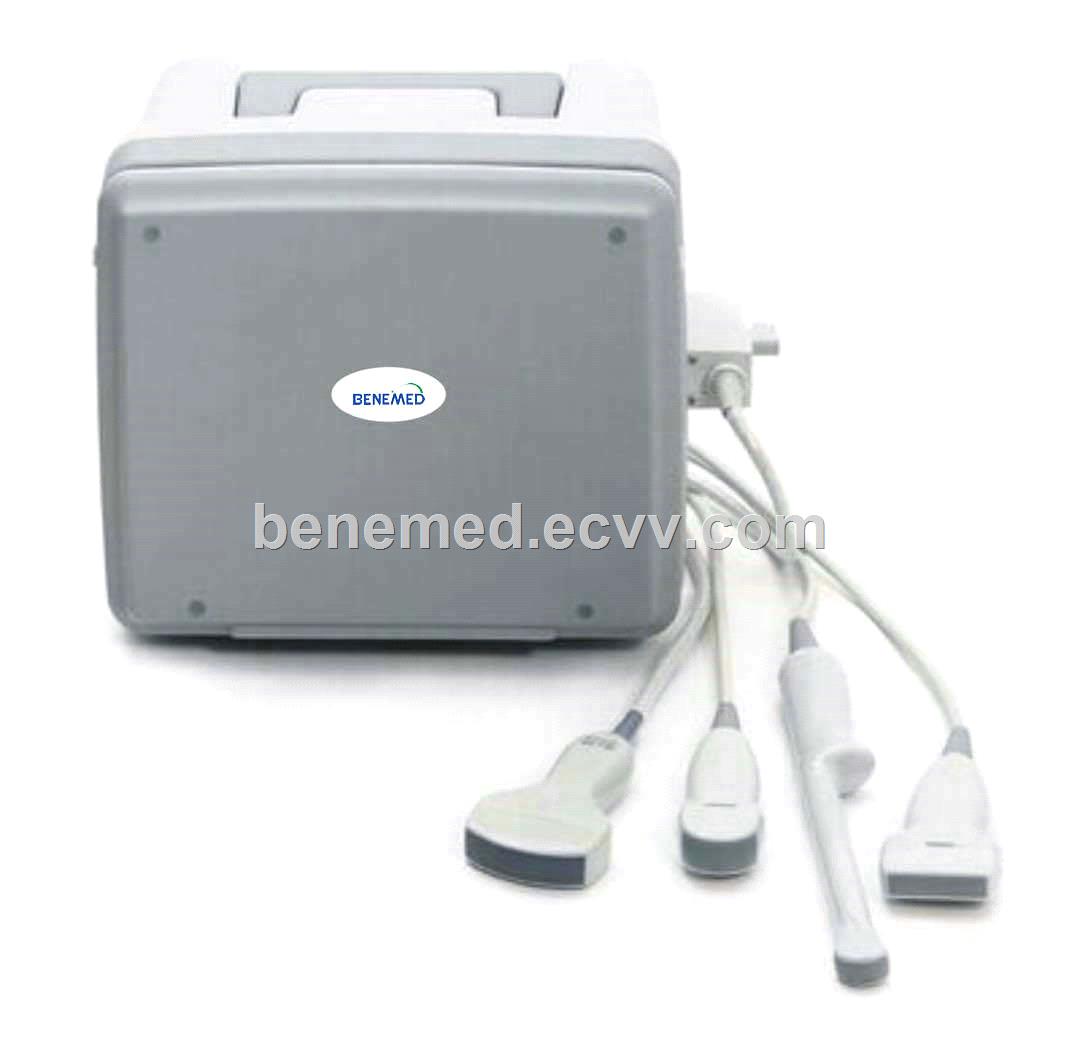

Two transducer connectors
256 frames cine loop
Electronic convex transducer
