>Products Catalog > OB/GYN products > Ultra Slim Notebook Ultrasound Scanner Black & White BW-6 with 10.4 Inch LED Screen & Battery

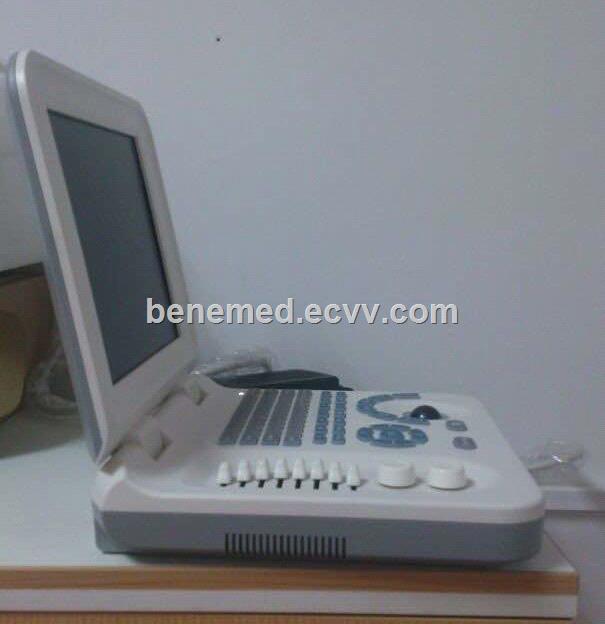

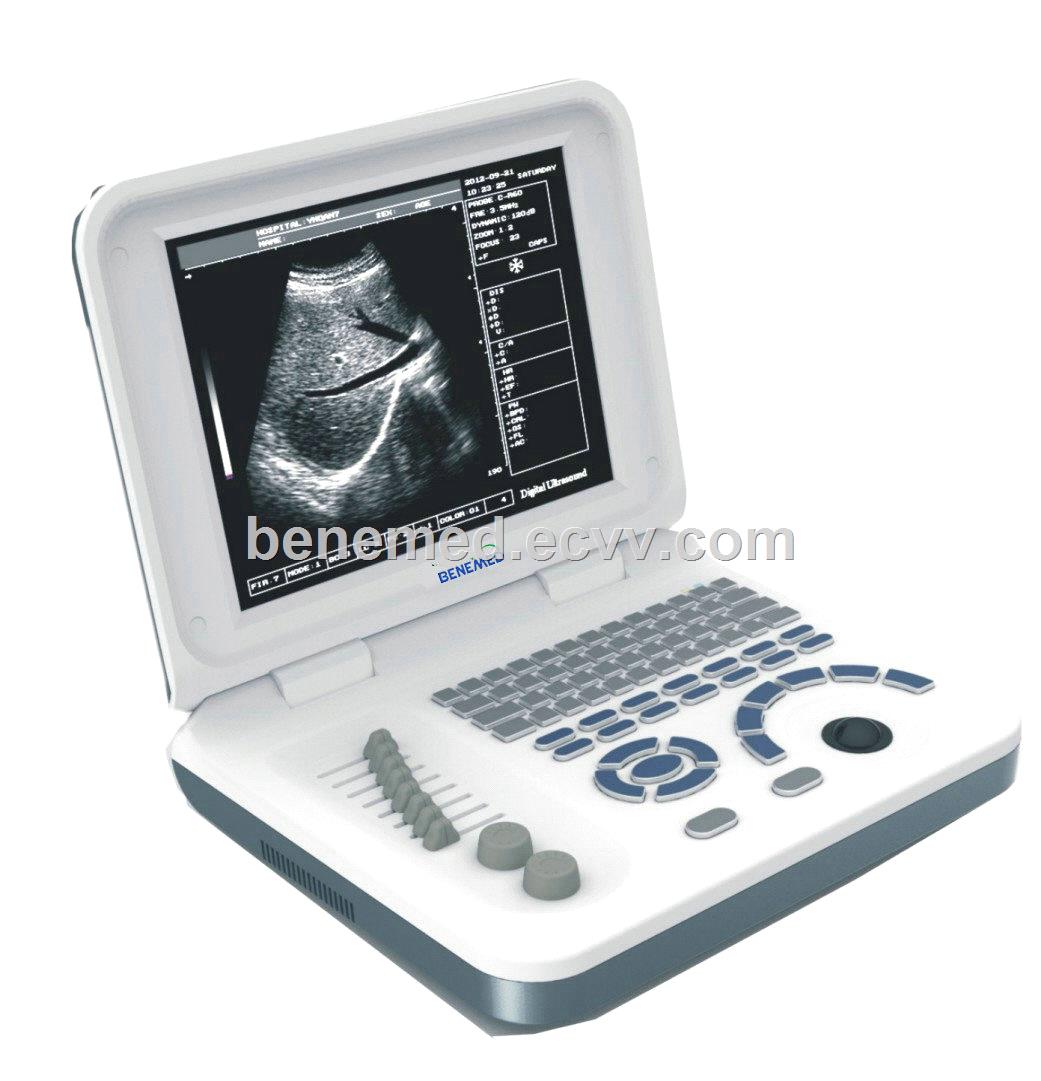

Ultra Slim Notebook Ultrasound Scanner Black & White BW-6 with 10.4 Inch LED Screen & Battery
| Supply Ability: | 500 Unit(s) per Month |
|---|---|
| Shipping: | By courier DHL, Fedex, UPS and By Air, by Sea |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Carton with foam inside; wooden box |
Quick Details
- Brand Name: BENEMED
- Type: Portable Ultrasonic Diagnostic Devices
- Warranty: 18 months
- Portable: portable
- Certification: CE, ISO
- Model Number: BW-6
Specifications
BW-6 Notebook LED Ultrasound Diagnostic Scanner
Digital Beam Forming
Superior image quality
Dynamic Receiving Apodization
Dynamic Frequency Scan
Advanced imaging processing
USB port for convenient image transfer
Rechargeable battery for long working time
Specification
General Description:
Imaging Modes: B, B/B, B/M, 4B, M
Scanning Modes: Convex, Linear
Gray Scale: 256
Display: 10.6 inch LED monitor
Gain: up to 120dB
Scanning dept: up to 250mm
Imaging technology: Digital Beam-forming
Dynamic Receiving Focusing
Dynamic Receiving Apodization
Real-time Dynamic Aperture
Imaging Processing
Pre-processing: Dynamic range
Line Density
Frame correlation
Edge enhance
Post-processing: Gray scale
Gray reject
Scan angle
Polarity reverse
Left/Right reverse
up/down reverse
Functions:
ZOOM: Local zoom
Panoramic zoom
Image memory: 128 frames
Cine Loop: 256 frames
View: Patient info, patient image, Patient report
Pseudo color: 16 colors selectable
Software Functions
General measurement: distance, circumference, area, volume, angle, ration, etc
Calculation package: abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc
Peripheral ports: USB SVGA PAL-D Video output
Others:
Net weight: 2.6KG
Power supply: AC 110-240V, 50Hz
Dimensions: 300*250*60
Standard Configurations:
BW-6 main unit
10.4 inch LED monitor
One transducer connector
256 frames cine loop
Electronic convex transducer
Power Adaptor
Options:
Electronic linear transducer
Electronic endocavity transducer
High frequency rectal linear transducer
