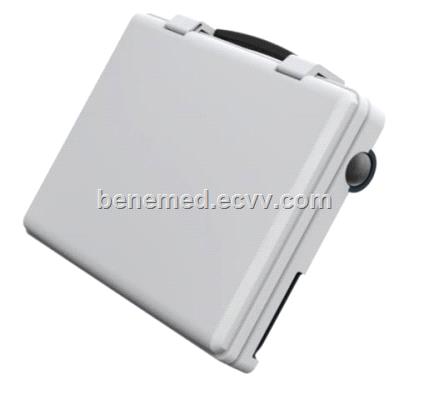

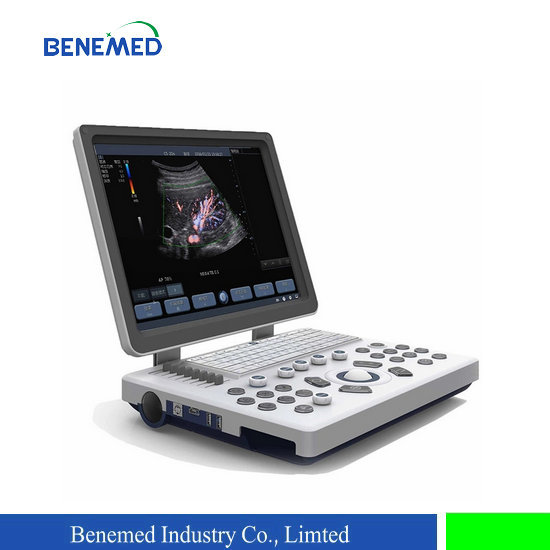

Notebook Color Doppler Ultrasound Scanner BENE-3S with 15 Inch LCD Screen & 3 Probe Connector

Specifications

BENE-3S
Specification
Modes:        B, M, 2B, 4B, B/M, C,PW, Power, DirPower, THI
Gray level:     256
Display:        15'' LCD monitor
Transducer Frequency:   2-11Mhz
Advanced Imaging technology
Wide-angle imaging
Panoramic focusing technology
Compatible with high and low speed blood
Panoramic imaging
Frequency composite
Space compound
Rolling M technology
Real-time Dynamic Aperture
Tissue Harmonic Imaging
Scanning Depth:   220mm
Image Processing
Pre-processing:  Cloud processing technology
               Fine blood flow imaging, high sensitive
               Gain
8-segment TGC
Dynamic range
Persistence
M soften
Noise suppression
Post-processing:  Image enhancement
               Gray-scale map
               Pseudo color map
               Interface to turn 180
               Left/right reverse
               up/down reverse
Functions:
Cine-loop:  340 frame cine loop memory
Zoom:     Stepless zoom for the active image
THI:      Tissue Harmonic Imaging
Qopt:      One-key Optimize
DICOM:    DICOM3.0
Print:       Report print for text and graph and image
Measurement & Calculations
B mode: distance, circumference, area, volume, angle, fetal growth curve
M mode: distance, time. Velocity, heat rate
Color and PW mode: D velocity, D trace, PS/ED
Software package: Abdomen, Gynecology, Obstetrics, Cardiology, small parts, Urology
Others
Transduce connector: 3 active transduce connector ports

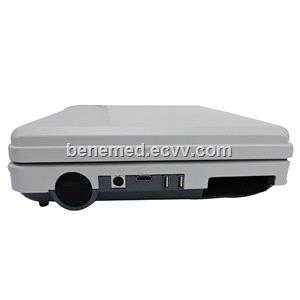

Peripheral ports:  S-vedio, HDMI port, two USB port, Dicom
Power supply: 100-240VAC 10%, 50Hz/60Hz
Dimension(main unit): 355*338*87mm
Packing dimension: 415*400*147mm
NW: 4.5 KG
GW: 6.5 KG
Standard Configuration
Bene-3S main unit
15 inch high resolution LCD display 1024*768
Two USB ports, One S-video port, One HDMI port
One power inlet

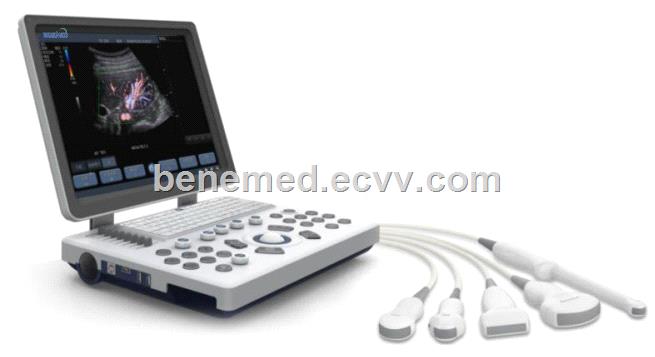

3.5 Mhz convex probe
Three transducer connectors
Options
3.5MHz Electroni convex array transducer
7.5MHz Electronic linear array transducer
6.5MHz Electronic micro-convex array transducer
6.5MHz Electronic transvaginal array transducer
