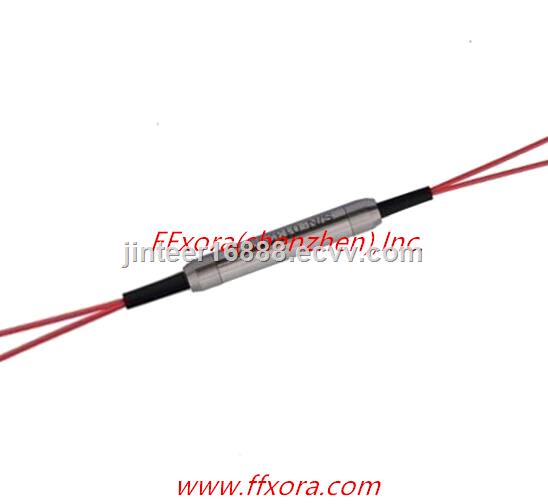

Polarization Maintaining Optical Circulator(1064,1310,1550nm)
| FOB Price: | 100.00 - 150.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | South America, Mid East |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: Polarization Maintaining Optical Circulator
- Size: 5.5*35mm
- Type: PM fiber
- Material: steel+fiber
- Color: White
Specifications
Type Parameter |
Unit |
Type A |
Type B |
Type B |
Center Wavelength |
nm |
1310 or 1550 |
1064 | |
Operating Wavelength Range |
nm |
30 |
20 |
5 |
Typ. Isolation (port 2->1& por 3->2) |
dB |
46 |
30 |
30 |
Isolation (port 2->1& por 3->2) |
dB |
40 |
20 |
25 |
Typ. Insertion Loss (port 1->2& por 2->3) |
dB |
0.7 |
0.6 |
1.8 |
Insertion Loss (port1->2& por 2->3) @,-5 to +70C(1310/1550nm), ,-5 to +50C(1064nm) |
dB |
0.9 |
0.8 |
2.1 |
Extinction Ratio |
dB |
28 |
28 |
28 |
Cross Talk |
dB |
50 | ||
Return loss |
dB |
50 | ||
Power handling |
mW |
300 | ||
Fiber Type |
- |
1310nm:PM 1310 Panda Fiber; 1550nm:PM1550 Panda Fiber; 1064nm:PM980 panda Fiber. | ||
Operating temperature |
C |
-5 ~ +70(1310 or 1550nm), -5 ~ +50(1064nm) | ||
Storage temperature |
C |
-40 ~+85 | ||
Package Dimensions |
mm |
5.50.2xL351 (P1) | ||
