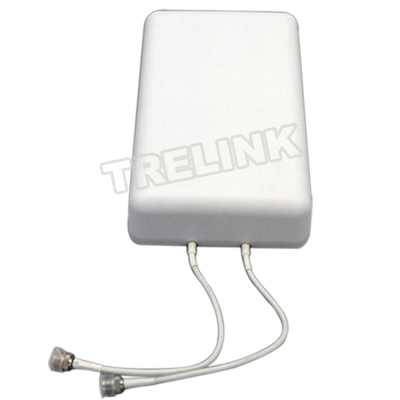

Wide Band 698-2700 MHz 9 DBi Panel Directional Antenna 2G 3G 4G WiFi

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton

Quick Details

Wide band 6982700 MHz 9 dBi Panel Directional Antenna 2G 3G 4G WiFi

Electrical Specifications

Model: TLPA-627-8-80VH-2N

Frequency Range:698-960 MHz /1710-2700 MHz

Gain:8 dBi /9.2 dBi

VSWR: 2.0: 1

Polarization: Horizontal & Vertical

F/B Ratio:14 dB /20 dB

Horizontal Beamwidth:88 /80

Vertical Beamwidth:70/ 65

Input Impedance:50

Maximum Power:50 W

Lightning Protection: DC Ground

Mechanical Specifications

Connector:2*N female or customized

Antenna Dimension: 295*180*70 mm

Weight: 0.72 kg/1.58lb

Radome Material: Weatherproof ABS

Wind Velocity: 210 km/h

Working Temperature: -40~+60
