| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Strandard export wooden case. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 Year
- Certification: CE
- Brand Name: Artech
- Condition: New
- Weight: 1200kg
- Dimension(L*W*H): 1300*2500*200mm
- Power(W): 4.5kw
- Voltage: 380v
- CNC or Not: CNC
- Product name: High quality and best price 1325 3d cnc router wood carving machine
- Application: Woodworking
- Working area: 1300*2500*200mm
- Table: Vacuum table
- Control system: NC Studio
- Motor: Stepper
- Driver: Leadshine
- Inverter: Fuling
- Spindle: 4.5kw air cooling spindle
- Software: Artcam/Type3
Specifications
High quality and best price 1325 3d CNC router wood carving machine
Technical Parameter of 3d wood carving CNC router machine:
Parameters |
Standard Specifications ART1325V |
X,Y,Z Working Area |
1300*2500*200mm |
Spindle Power |
3.5kw air cooling spindle |
X,Y,Z Traveling Positioning Accuracy |
0.01/2000mm |
Table Surface |
vacuum table |
X,Y,Z Rail and Transmission |
Taiwan TBI Ball Screw |
Max. Rapid Travel Rate |
50000mm/min |
Max. Working Speed |
30000mm/min |
Spindle Speed |
18000RPM |
Drive Motors |
Stepper motor and driver |
Working Voltage |
AC380V/3PH/50Hz or 220V |
Command Language |
G Code |
Operating System |
Nc studio controller |
Interface |
PCI |
Software Compatibility |
Option:Type3, Ucancam, Artcam, solidworks,etc. |
Running Environment |
Temperature: 0~45 Relative Humidity: 30%~75% |
Parameters |
Standard Specifications |
Oil system |
Handel |
Frame structure |
Welding structure |
Collect |
ER25 collect |
Dust collector |
1 pieces |
Wireless wheel |
Yes |

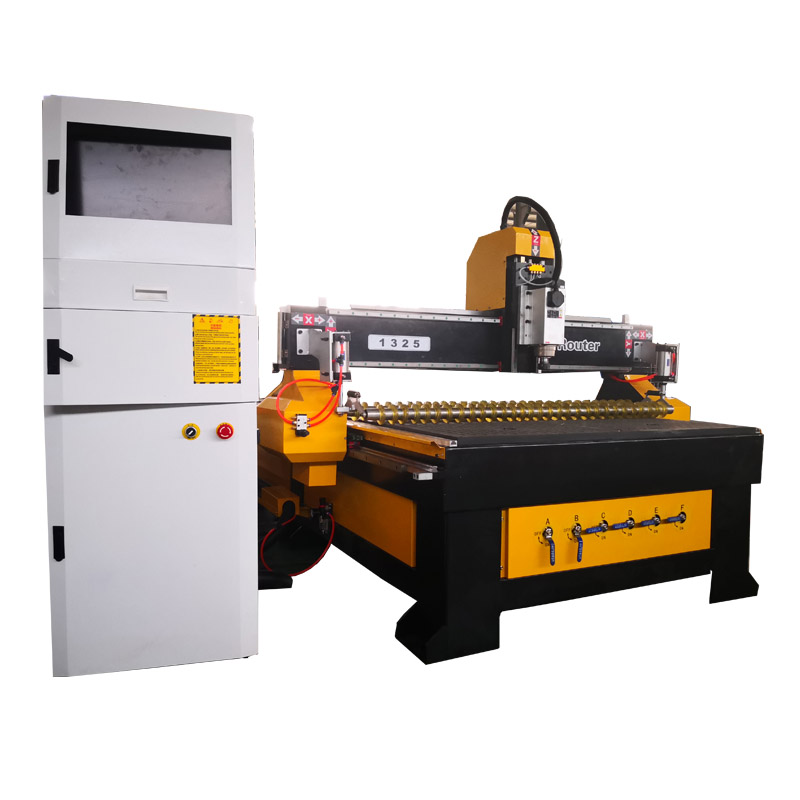

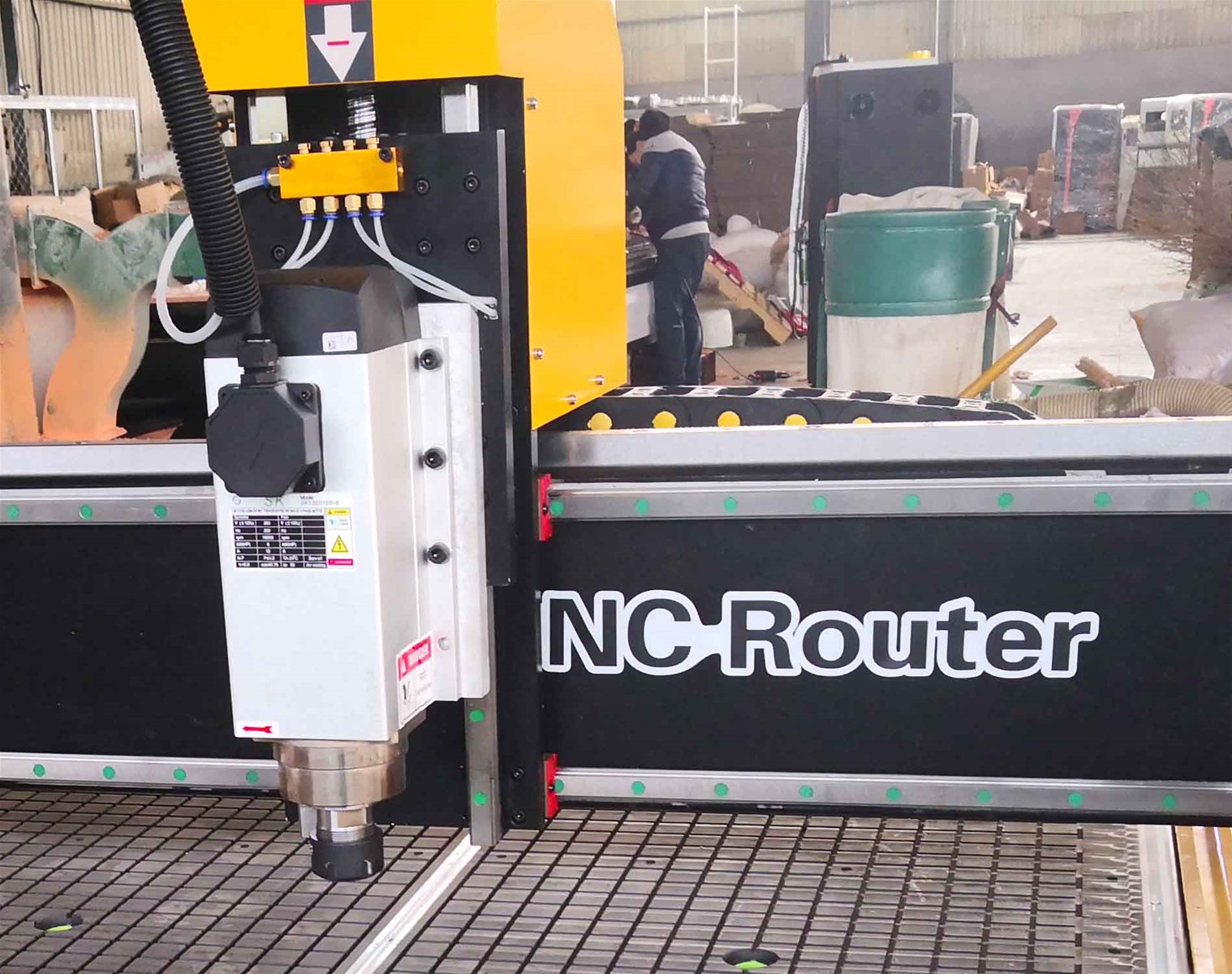

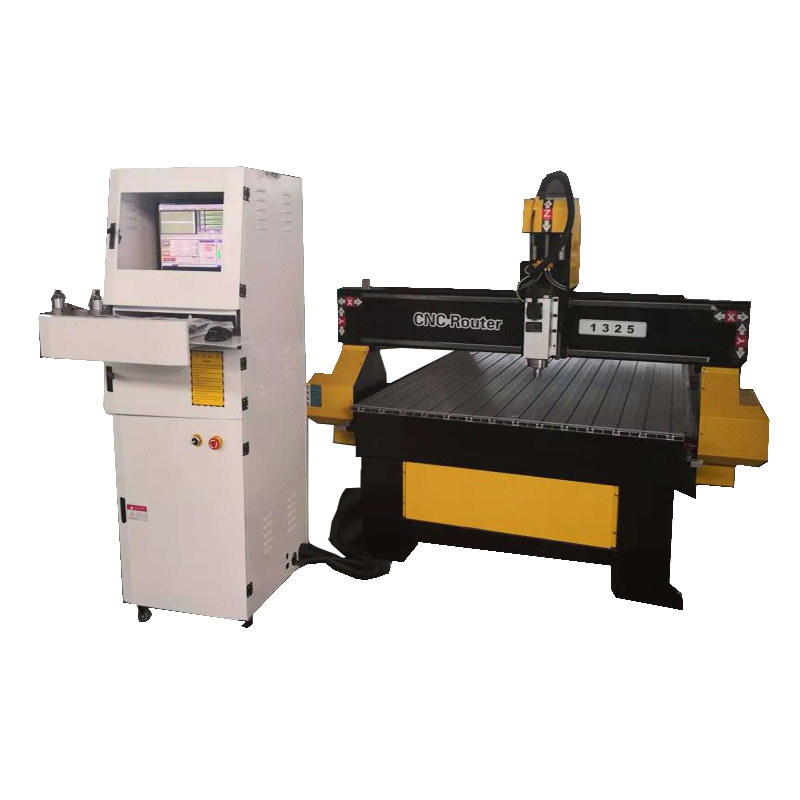

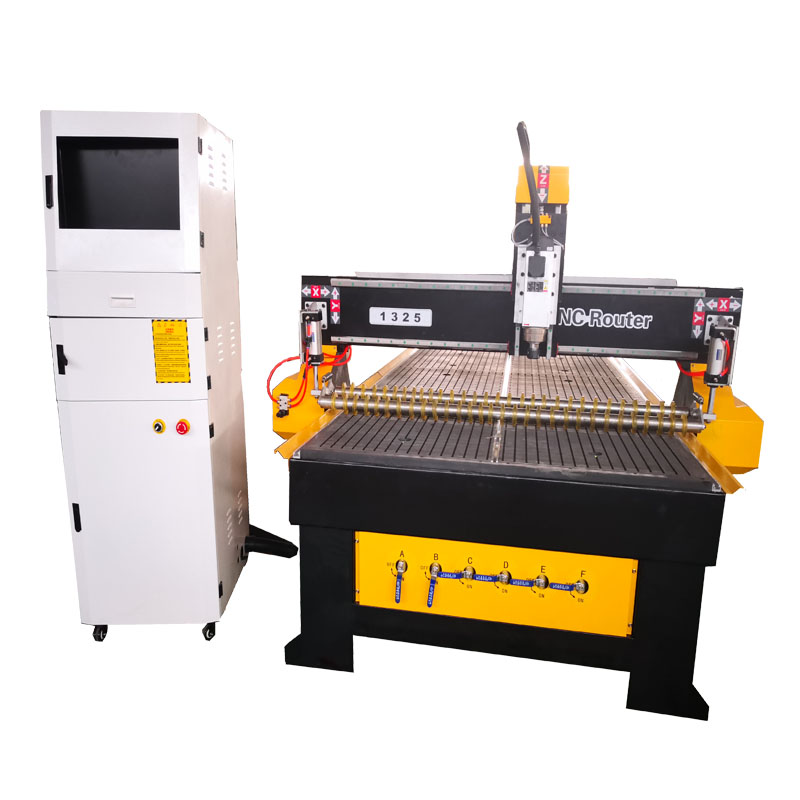

Details of 3d wood carving CNC router machine:
Sample of 3d wood carving CNC router machine:
Package and delivery of 3d wood carving CNC router machine:
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
and we can package according to your requests.
Delivery Detail: for standard machines,it will be 7-15 working days after payment;for non-standard machines and customized machines according to specific requirements,it will be 15 to 30 working days after payment.
Company information:
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. with a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. the production facilities occupies China's forefront in development and expansion.
