Various High Quality Flexible Cable Gland Bend Proof Spiral Cable Gland M16(Cable Range 6-10mm)

FOB Price:	0.34 - 0.34 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	FOB Ningbo or Shanghai China
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia
Place of Origin:	Zhejiang in China
Packaging Details:	50pcs/polybag

Quick Details

Material: Nylon
Size: PG & Metric thread
Protection Level: IP68
Brand Name: GSH Electric
Color: Black color
Model Number: M16

Specifications

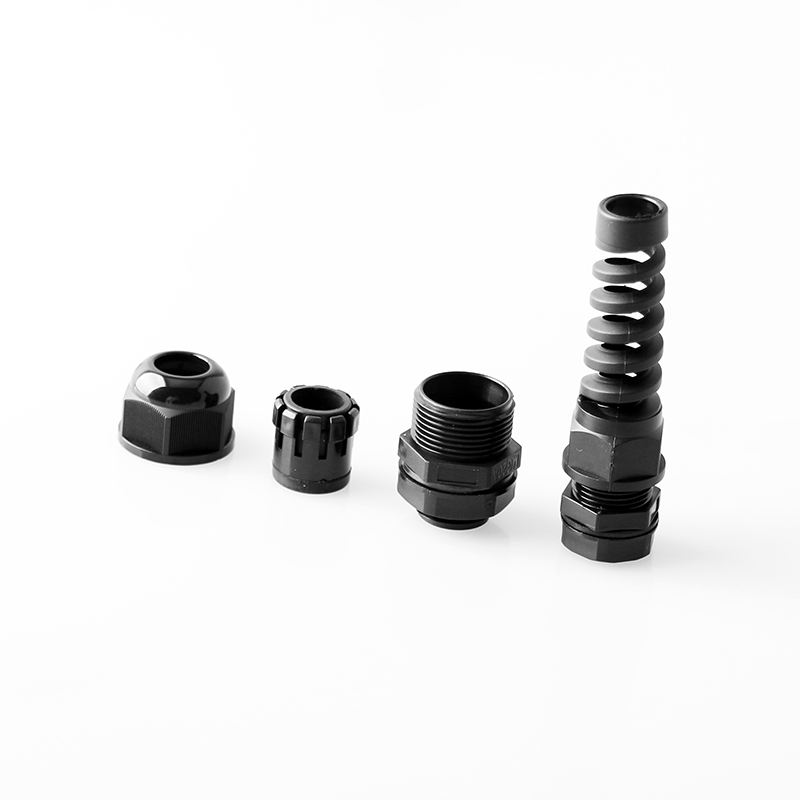

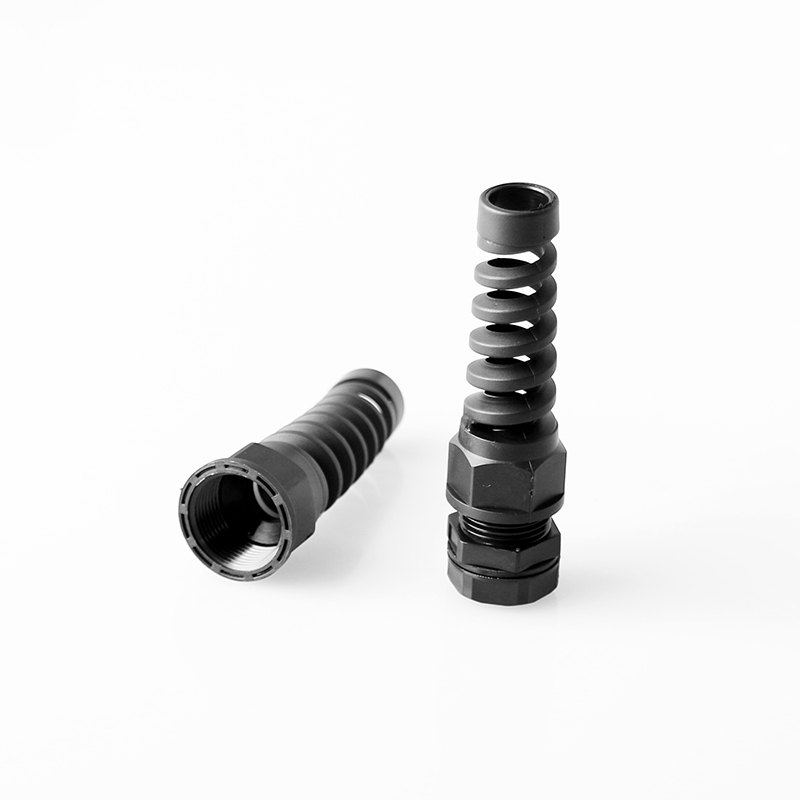

Various High Quality Flexible Cable Gland Bend Proof Spiral Cable Gland M16(cable range 6-10mm)

Thread Type: Metric and PG.

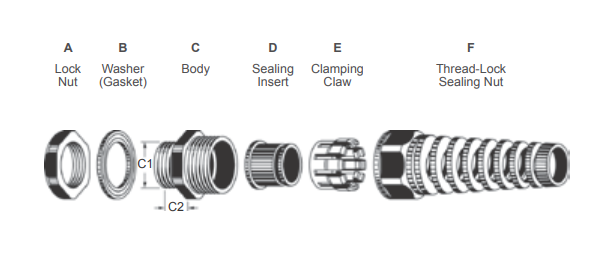

Material: Halogen-free UL approved nylon PA66 for A, C, E, F parts; NBR rubber for B, D parts.
Working temperature: -40 to 100.
Color: Black(RAL9005), Light grey (RAL7035).
IP Protection: IP68
Application: Spiral cable gland is the best for cable entry system which protects against bending break failure. this is an important safety feature for a flexible cable on hand-held equipment, moving machine parts or other instruments.

Thread	Item No.		Cable Range Mm	Thread O. D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	Spanner Size A & F mm
Thread	Black	Light grey	Cable Range Mm	Thread O. D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	Spanner Size A & F mm
M12 X 1.5 M12 X 1.5 M16 X 1.5 M16 X 1.5 M20 X 1.5 M20 X 1.5 M25 X 1.5	MG12A-P-05B MG12A-P-08B MG16A-P-07B MG16A-P-10B MG20A-P-10B MG20A-P-14B MG25A-P-16B	MG12A-P-05G MG12A-P-08G MG16A-P-07G MG16A-P-10G MG20A-P-10G MG20A-P-14G MG25A-P-16G	5.3 ~ 3 7.8 ~ 4.5 7 ~ 4 10 ~ 6 11 ~ 6 14 ~ 9 15.8 ~ 10	12 12 16 16 20 20 25	12 ~ 12.3 12 ~ 12.3 16 ~ 16.3 16 ~ 16.3 20 ~ 20.3 20 ~ 20.3 25 ~ 25.4	9 9 15 15 15 15 15	18 / 19 18 / 19 22 / 22 22 / 22 27 / 27 27 / 27 33 / 33
PG 7 PG 7 PG 9 PG 9 PG 11 PG 11 PG 13.5 PG 13.5 PG 16 PG 16 PG 21	PG7A-P-05B PG7A-P-08B PG9A-P-05B PG9A-P-08B PG11A-P-07B PG11A-P-10B PG13.5A-P-09B PG13.5A-P-12B PG16A-P-10B PG16A-P-14B PG21A-P-16B	PG7A-P-05G PG7A-P-08G PG9A-P-05G PG9A-P-08G PG11A-P-07G PG11A-P-10G PG13.5A-P-09G PG13.5A-P-12G PG16A-P-10G PG16A-P-14G PG21A-P-16G	5.3 ~ 3 7.8~ 4.5 5.3 ~ 3 8~ 4.5 7 ~ 4 10 ~ 6 8.8 ~ 5 12 ~ 7 11 ~ 6 14 ~ 9 15.8 ~ 10	12.5 12.5 15.2 15.2 18.6 18.6 20.4 20.4 22.5 22.5 28.3	12.5 ~ 12.8 12.5 ~ 12.8 15.2 ~ 15.5 15.2 ~ 15.5 18.6 ~ 18.9 18.6 ~ 18.9 20.4 ~ 20.7 20.4 ~ 20.7 22.5 ~ 22.8 22.5 ~ 22.8 28.3 ~ 28.7	8.5 8.5 9 9 10 10 10 10 11 11 12.5	17 / 19 17 / 19 22 / 19 22 / 19 24 / 22 24 / 22 27 / 24 27 / 24 30 / 27 30 / 27 36 / 33
