Wenzhou Gsh Electric Co., Ltd.
China Manufacturer with main products: Cable Gland, Brass Cable Gland, Metal Cable Gland, Nylon Cable Gland, Plastic Cable Gland, Stainless Steel Cable Gland, Vent Plug, Nylon... |
Home
>Products Catalog > Vent plugs > Plastic Vent Plugs/ Breather Vent Plug/ Air Vent Plug from GSH Electric

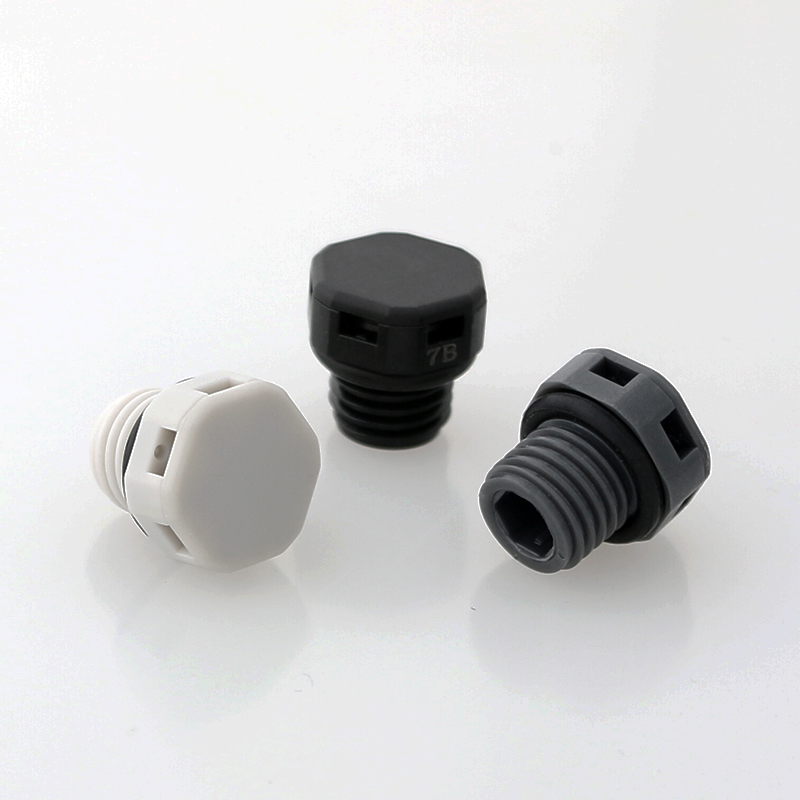

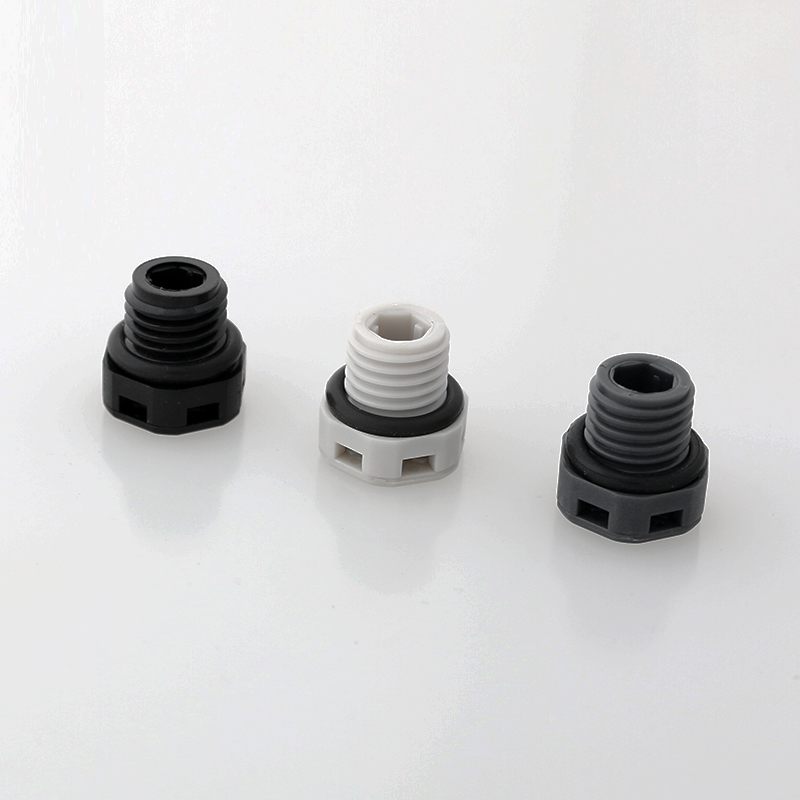

Plastic Vent Plugs/ Breather Vent Plug/ Air Vent Plug from GSH Electric
| FOB Price: | 0.55 - 0.55 USD/Piece |
|---|---|
| Supply Ability: | 150,000 Piece(s) per Month |
| Shipping: | FOB Ningbo or Shanghai China |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 100pcs/polybag |
Quick Details
- Material: Nylon
- Size: M12
- Protection Level: IP65,IP66, IP67, IP68
- Brand Name: GSH Electric
- Color: Black or dark grey
- Model Number: breather vent plug M12
Specifications
Plastic Vent Plugs/ breather vent plug/ air vent plug from GSH Electric
Application Area
1. LED outdoor lighting industry
2. Automotive manufacturing industry
3. Solar photovoltaic industry
4. Electronics and electrical equipment industry
5. Communications equipment industry
6. Security equipment industry, etc.
Assemble
1. Ensure that the mounting surface clean, no oil stain, no dust and no other pollutants, flat, vertical surface
2. Should be screwed up by sleeve, mounting torque is 7~
3. Use 16mm sleeves or spanners
| Technical parameter and characteristic | Test Data | |||
| Waterproof degree | IP65 | IP66 | IP67 | IP68 |
| Material reference | PPCM1215105DW | PPCM1215106AW | PPCM1215107CW | PPCM1215108BW |
| Air permeable capacity | 2200-3500ml/min7kpa | 900-2200ml/min7kpa | 500-1350ml/min7kpa | 100-350ml/min7kpa |
| Size of minimum passing matter | 5UM | 3UM | 0.45UM | 0.02UM |
| Temperature resistance | -40~120 | |||
| Flame retardant rating | UL 94V-0 | |||
| Anti-corrosive property | PH: 114 | |||
| Color | Dark grey, Light grey or Black | |||
| Mounting mode | through hole: 11.812.2mm / Threaded hole: M12 X 1.5 | |||
